Getting Started with Security Manager

To get started with the tool, open the security manager in the desktop or the web application.

To open the security manager in the desktop application:

Select the Service > Security Manager main menu item. object navigator.
Select the Programs > Foresight Analytics Platform 9.2 > Security Manager item in the Windows menu.

After executing one of the operations the login dialog box opens:

NOTE. Dialog box appearance depends on the authentication type selected in the specified repository settings.

Select the required repository in the Repository list.
Enter user name and password into the appropriate boxes:

If password or role authentication is used, enter user name and password to the appropriate boxes.
If integrated domain authentication is selected, the User Name and Password boxes are unavailable. Domain name and password that are used to connect to the domain are also used to connect to the repository.
If domain authentication is used, specify user name and domain in the Domain\User Name box in the following format: Domain\User Name. Enter user domain password in the Password box.

The dialog box is identical to the login dialog box on login to Foresight Analytics Platform. If user name and password were specified correctly, the main security manager dialog box opens.

To open the security manager in the web application:

Run web application using supported browseris set up in repository.
Specify the security manager web application URL in the connection string:

http://ppserver/fp_App_v9.2/app/adm.html?repo=PPRepository

Where:

ppserver. The name of the workstation that hosts the web application.
fp_App_v9.2. Name of the virtual directory that stores the web application.
PPRepository. Identifier of the repository, to which the connection is established. If identifier is not entered, the repository specified in the PP.xmlopens .

The web application start page displays login dialog box similarly to the desktop application. Enter user name and password into the appropriate boxes. If credentials were entered correctly, the main window of the security manager opens.

The security manager allows for connecting and simultaneous work in multiple repositories.

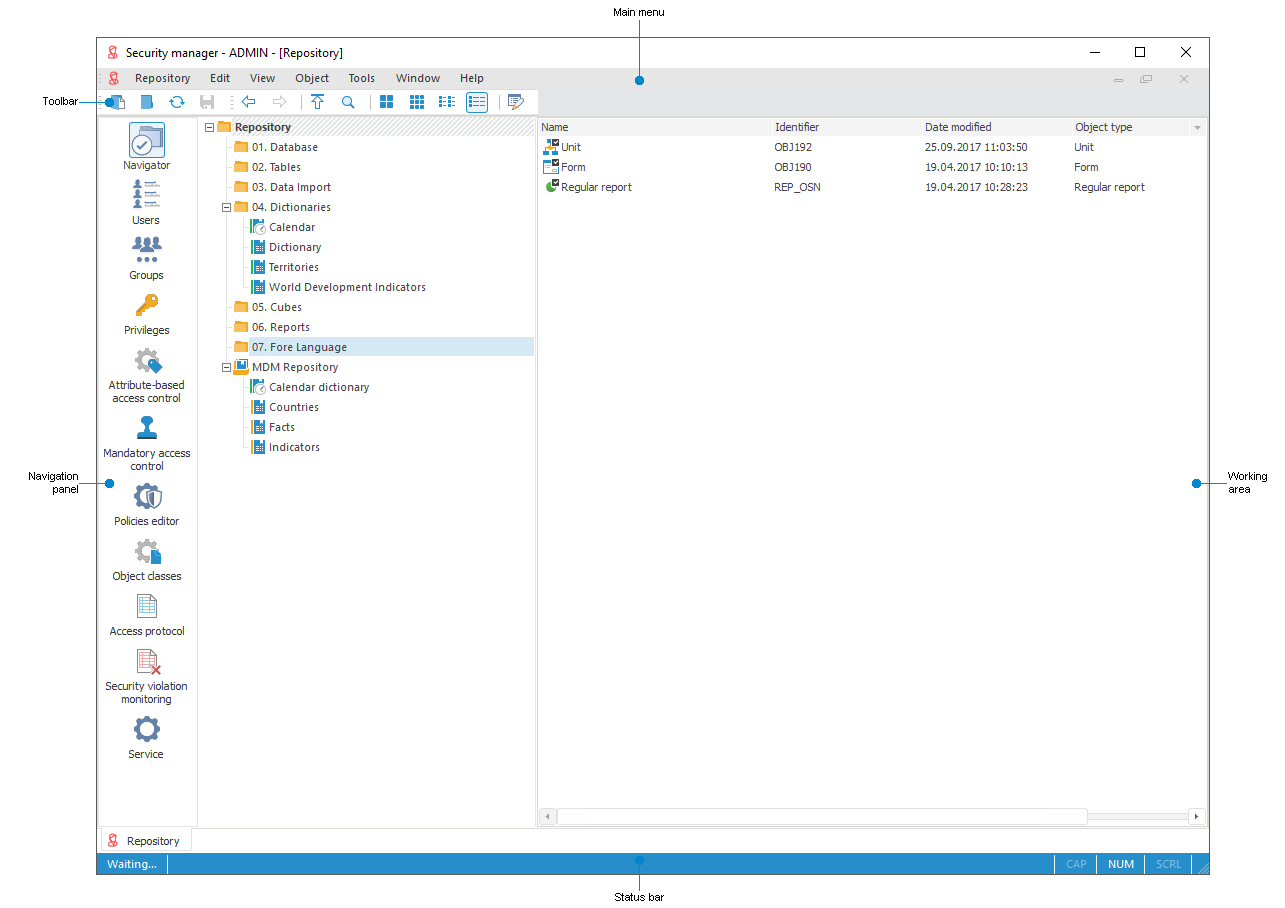

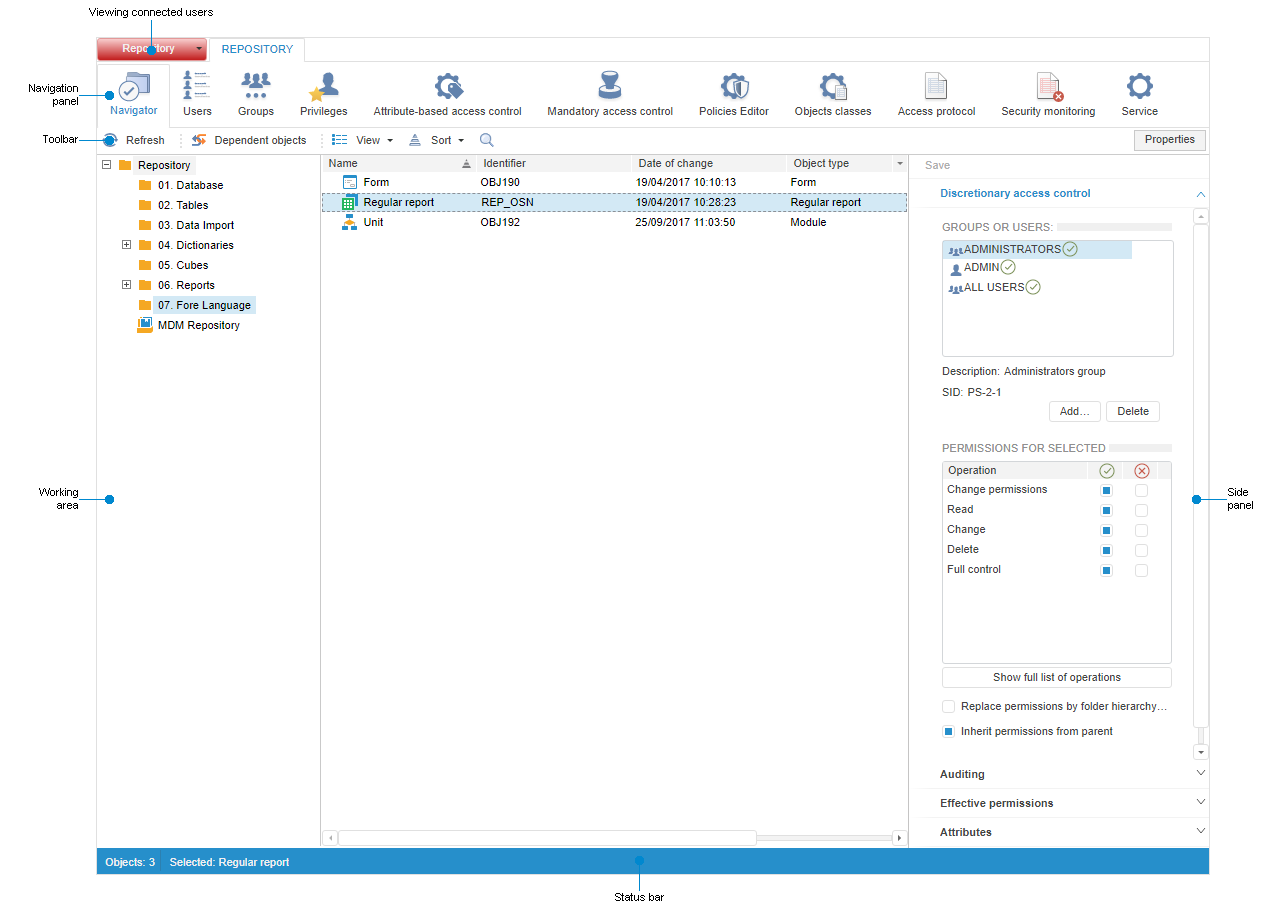

The main window the Security Manager tool differs in the desktop and web applications:

NOTE. By default, the Navigator is the active section on opening the security manager.

Main menu. It contains commands that are used to execute various operations of the security manager's active section.

NOTE. The context menu is available only in the desktop application.

Side panel. It contains access permissions settings. The side panel display depends on the Properties button state (Privilege Holders in the Privilege section) on the toolbar.

NOTE. The side panel is available only in the web application, in the desktop application the access permissions are set up using dialog boxes.

Toolbar. It contains frequently used commands. The commands are grouped on different panels, for example, on displaying object discretionary access permissions, on filtering access protocol, and so on. Displaying of panels is set up by means of selecting or deselecting a checkbox in the toolbar's context menu.
The toolbar is set up identically to toolbars in other Foresight Analytics Platform tools.

Navigation panel. It contains security manager sections.

NOTE. For repository based on SQLite the Object Classes, Access Protocol sections are available.

Working area. It is used to work with active section of the security manager.
Status bar. It indicates working modes that are enabled or disabled by means of keyboard keys.

Security manager functions in the desktop and web applications differ. The difference is shown in the table, except for the full functions that are available in the desktop and web applications:

Function	Desktop application	Web application
Displaying elements and navigate by objects in the Navigator section
Viewing object properties
Setting up access permissions for MDM dictionary elements
Exporting security policy settings and access permissions for objects
Viewing access permissions in the objects list as icons
Changing access permissions for a group of selected objects
Setting up access permissions to data of time series database
Setting up security labels
Setting up dependent object access permissions
Working with users' personal folders
Access to printers, preview and print
Updating users and groups of users
Changing user password
Checking security subjects and advanced search of users and groups
Selecting workstations
Access protocol loading interrupt
Checking Repository Metadata Integrity
Working with windows list in the interface
Setting up list display in the interface

Conventions:

- function is fully available.

- function is not available.

- function is limited.

To connect a repository:

In the desktop application:

Select the Repository > Connect main menu item.
Click the Connect Repository toolbar item.

In the web application:

Change repository identifier in the address bar.

After executing one of the operations the login dialog boxis set up in repository.

To disconnect a repository:

In the desktop application:

Select the Repository > Disconnect main menu item.
Click the Disconnect Repository toolbar item.

In the web application:

Close browser window.

After executing one of the operations the current repository connection session closes.

Displaying List of Connected Repositories

To display a list of all connected repositories, select the Window > Windows List main menu item:

NOTE. The list of security manager windows is available only in the desktop application.

To activate or close the selected repository:

Click the Activate or Close button.
Select the same context menu item.

After executing the operation:

The selected repository is activated and the list of windows will be closed.
The selected repository will be closed.

TIP. The multiple selection is available in the list of windows, which enables to close simultaneously several repositories.
