The designer of business applications back end can be installed on ASP.NET web server automatically using the DBAWebServer.exe distribution or manually. Manual installation and setup of ASP.NET is used as an alternative option to access resources of designer of business applications.
The distribution executes the following operations:
It installs files of designer of business applications.
It sets up IIS.
It creates an application pool DBA Pool v10.x and a virtual directory DBA_App_v10.x.
Before installation make sure that a server role has been added if the web server is to be installed on server Windows OS. If web server is to be installed to a non-server Windows OS, connect IIS services before installation.
To install designer of business applications back end:

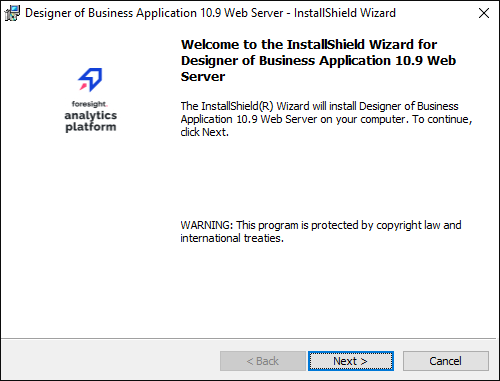

Start the distribution under the user who has local computer administrator and select installation language. After the system is prepared for installation, the start page with introductory information is displayed:
Click the Next button to continue the installation.
Then, select the folder to which the back end files will be installed. The default folder is C:\Program Files (x86)\Foresight\. To change the folder, click the Change button. The Designer of Business Application 10.x Web Server directory will be created in the selected folder after installation.
Click the Next button to continue the installation.
To start the installation, click the Install button on the next page.
Click the Finish button on the last page of the wizard to finish the installation.
After executing the operations, the designer of business applications back end is installed.
Description of possible errors occurring on setting up the IIS web server is given in the Problems on Setting Up Foresight Analytics Platform Web Application on ASP.NET article.
