Level Lines

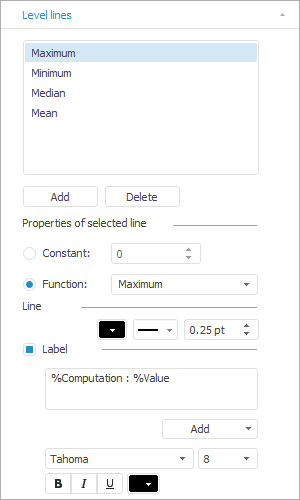

To quickly set up level lines, use the Level Lines side panel tab.

The following operations with level lines are available:

• Adding and deleting level line.

• Setting up level line.

• Showing level line label.

To execute advanced setup of a level line format, use the Levels tab of the Axis Format dialog box.

1. Make sure that the side panel is displayed.

2. Select the chart in the working area.

3. Select the Format radio button on the side panel and go to the Level Lines tab.

To add a level line, click the Add button and determine settings in the Selected Line Properties and the Line groups of parameters.

To delete the selected level line, click the Delete button.

To set up a label type for a level line selected in the list, select one of the radio buttons in the Properties of Selected Line area:

• Constant. Set level line value by using the keyboard or value editor.

• Function. In the drop-down list select the function, which value is used to plot a level line. The following function types are available: Maximum, Minimum, Sum, Median or Mean.

If required, set up level line parameters: color, type, width.

To show a level line label, select the Label checkbox.

For details about level line label setup see the Data Labels section.
