The NavigatorBox component is a container for the tree of folders and the list of repository objects.
This component is implemented by the NavigatorBox class. It is included into the Navigator component.

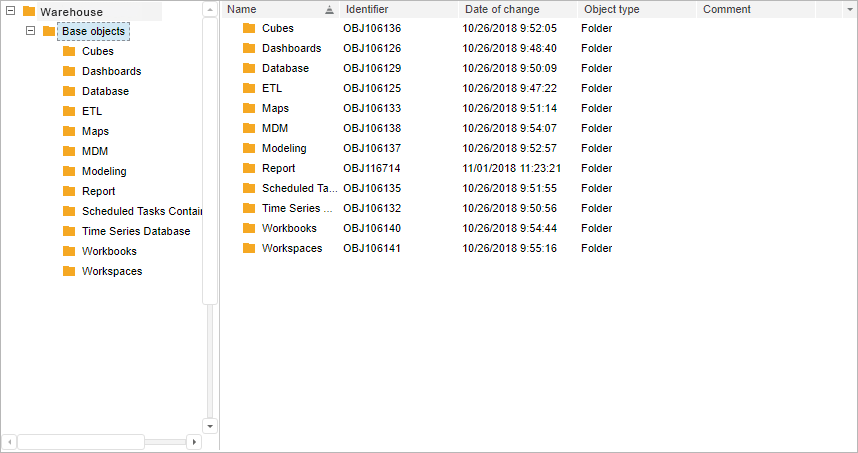

This component may look as follows:
Example of Creating the NavigatorBox Component
Constructor name | Brief description | |
NavigatorBox | The NavigatorBox constructor creates an instance of the NavigatorBox component. |
Property name | Brief description | |
FolderTreeFilter | The FolderTreeFilter property determines, which container objects are displayed in the folder tree. |
|
HideObjectListColumnsMenu | The HideObjectListColumnsMenu property determines whether the columns menu is hidden. | |
ObjectListDisplayMode | The ObjectListDisplayMode property determines, which information is displayed in the object name in the objects list. |
|
ObjectListFilters | The ObjectListFilters property determines types of objects to be displayed in the object list. |
|
ObjectListMultiSelect | The ObjectListMultiSelect property determines whether multiple objects can be selected in the list. |
|
RootKey | The RootKey property sets key of the root folder. | |
SelectedKeys | The SelectedKeys property sets an array of selected objects' keys. | |
SelectedObjects | The SelectedObjects property contains the collection of selected objects of navigator tree. | |
ShowEmptyFolder | The ShowEmptyFolder property determines whether empty folders are displayed in the tree. | |
ShowNavigationPanel | The ShowNavigationPanel property determines whether the folder tree is displayed. | |
ShowOnlyFolders | The ShowOnlyFolders property sets the collection that contains keys of the folders to be shown displayed in the component. |
Method name | Brief description | |
adjustColumnsWidthByContent | The adjustColumnsWidthByContent method sets columns width according to the width of object list contents. | |
copy | The copy method adds a copy of selected objects to clipboard without changing original objects. | |
copyObjects | The copyObjects method places copies of several objects to clipboard. | |
createFolder | The createFolder method creates a folder. | |
createObject | The createObject method creates a repository object. | |
createShortcut | The createShortcut method creates a shortcut for the selected object. | |
cut | The cut method adds selected objects to clipboard and removes the objects from their initial location. | |
deleteObjects | The deleteObjects method deletes selected objects. | |
getCurrentModeControl | The getCurrentModeControl method returns navigator object view class. | |
getCustomClassObject | The getCustomClasses method sends a request to get custom classes of the repository. | |
getFocusedObject | The getFocusedObject method returns the selected repository object. | |
getObjectsListRootKey | The getObjectsListRootKey method returns key of opened folder. | |
getObjectsListRootMbObject | The getObjectsListRootMbObject method returns parent object for the object selected in the tree. | |
getPathToRoot | The getPathToRoot method returns path of the repository objects from the root to the current directory. | |
getSelectedFolderTreeObject | The getSelectedFolderTreeObject method returns the object selected in the tree. | |
invertSelection | The invertSelection method inverts selection in the list of objects, that is, it selects unselected elements and deselects elements that were selected. | |
isContainer | The isContainer method returns whether repository object is a container. | |
moveObjects | The moveObjects method moves objects between folders. | |
openFoldersTo | The openFoldersTo method opens all folders up to the selected object. | |
openParentFolder | The openParentFolder method opens parent folder of the object selected in the tree. | |
paste | The paste method pastes object from clipboard. | |
refresh | The refresh method refreshes the folder tree and the objects list. | |
refreshForKey | The refreshForKey method refreshes contents of the folder with the specified key. | |
removeSelection | The removeSelection method deselects all objects in the list. | |
selectAll | The selectAll method selects all objects in the list. | |
setObjectListMode | The setObjectListMode method sets the type of object list. |
Event name | Brief description | |
FolderTreeContextMenu | The FolderTreeContextMenu event occurs when the user opens context menu for a folder tree element. |
|
ObjectListContextMenu | The ObjectListContextMenu event occurs on opening context menu for an object in the list. |
|
ObjectListObjectsLoaded | The ObjectListObjectsLoaded event occurs on loading a list of repository objects. | |
ObjectListSelectionChanged | The ObjectListSelectionChanged event occurs on changing selection of objects. | |
ObjectSelected | The ObjectSelected event occurs on changing selection in the objects list. | |
OpenObjects | The OpenObjects event occurs on double-clicking an object in the list. | |
PasteBufferStateChanged | The PasteBufferStateChanged event occurs after the clipboard state is changed. |
Property name | Brief description | |
Anchors | The Anchors property determines position of the component placed within container. | |
Animation | The Animation property determines component animation parameters. | |
Bottom | The Bottom property determines a bottom margin if a component is placed inside LayoutPanel. | |
Content | The Content property determines component contents. | |
ContextMenu | The ContextMenu property determines a component's context menu. | |
Data | The Data property is used to store any custom data. | |
Enabled | The Enabled property determines whether a component can be used. | |
Height | The Height property determines component height. | |
IsRTL | The IsRTL property determines whether component elements are aligned to the right. | |
IsVisible | The IsVisible property determines whether a component is displayed. | |
Left | The Left property determines a left margin if a component is placed inside GridPanel. | |
Opacity | The Opacity property determines component transparency. | |
Parent | The Parent property determines a parent component of a control. | |
ParentNode | The ParentNode property determines a parent DOM node. | |
ResourceKey | The ResourceKey property determines a component resource key. | |
Right | The Right property determines a right margin if a component is placed inside LayoutPanel. | |
Rotate | The Rotate property determines a component rotation angle. | |
ShowToolTip | The ShowToolTip property determines whether a tooltip of the component can be displayed. | |
Style | The Style property determines a component style. | |
TabIndex | The TabIndex property determines the order of the control element passing inside the container. | |
Tag | The Tag property determines a JSON object associated with the component. | |
ToolTip | The ToolTip property determines text of component tooltip. | |
Top | The Top property determines a top margin if a component is placed inside GridPanel. | |
Value | The Value property determines a component value. | |
Width | The Width property determines component width. |
Method name | Brief description | |
The addClass method adds a CSS class to the component. | ||
addEventHandler | The addEventHandler method adds an event handler to a DOM node. | |
The addStateClass method adds a CSS class to the component and removes the previous CSS class. | ||
The addToNode method adds a component to the specified node. | ||
bindEvents | The bindEvents method subscribes an element to all available events. | |
The getAnchorFlags method returns JSON object that contains settings of the current component's position. | ||
The getClass method returns the current CSS classes of the component. | ||
The getCssStyle method returns style for the specified node. | ||
The getDomNode method returns main DOM node of the component. | ||
The getFocused method determines whether the component is focused. | ||
getIsBinded | The getIsBinded method returns whether an element is subscribed to all DOM node events. | |
The hide method hides a control. | ||
The hideToolTip method clears tooltip timeout and hides the tooltip if it is shown. | ||
refreshStyle | The refreshStyle method refreshes element CSS styles. | |
The removeClass method removes CSS class from the component. | ||
removeEventHandler | The removeEventHandler method removes event handler from DOM node. | |
removeFromDOM | The removeFromDOM method removes node from the DOM structure. | |
The removeStateClasses method removes CSS classes of the component. | ||
The setDraggable method determines whether a component can be dragged on the HTML page. | ||
The setFocus method sets the component focus. | ||
The setIsHovered method sets up component displaying only on mouseover. | ||
The setSize method establishes the sizes of the component. | ||
The show method displays a control. | ||
unBindEvents | The unBindEvents method unsubscribes an element from all standard events. | |
The updatePosition method updates size and position when absolute positioning based on the current parameters is used. | ||
The updateSize method updates the component size on changing the size of the container that contains the component. |
Event name | Brief description | |
Drag | The Drag event occurs on clicking and holding the mouse button. | |
DragEnd | The DragEnd event occurs when dragging the component finishes. | |
DragStart | The DragStart event occurs when dragging the component starts. | |
OnContextMenu | The OnContextMenu event occurs on calling context menu of the component. | |
SizeChanged | The SizeChanged event occurs after the component is resized. | |
SizeChanging | The SizeChanging event occurs during component resize. |
Property name | Brief description | |
The Id property determines a repository object identifier. |
Method name | Brief description | |
clone | The clone method creates an object copy. | |
dispose | The dispose method deletes the component. | |
getHashCode | The getHashCode method returns hash code of repository object. | |
getId | The getId method returns repository object identifier. | |
getSettings | The getSettings method returns repository object settings. | |
getTypeName | The getTypeName method returns the name of the object type without the namespace, to which it belongs. | |
isEqual | The isEqual method determines whether the specified object is equal to the current repository object. | |
isLive | The isLive method determines validity of repository object. | |
removeAllEvents | The removeAllEvents method removes all object event handlers by the specified context. | |
setId | The setId method determines a repository object identifier. | |
setSettings | The setSettings method determines repository object settings. | |
defineProps | The defineProps method creates get and set methods from name array for the specified class. | |
keys | The keys method returns array of methods and properties names for the specified object. |
