Open dialog boxThe window for setting up process authorization objects is used to determine authorization objects used in a process, and to set up linking of selections in object data segments with process parameters.
NOTE. To provide a correct work of authorization objects, make sure that processes service execution is set up.

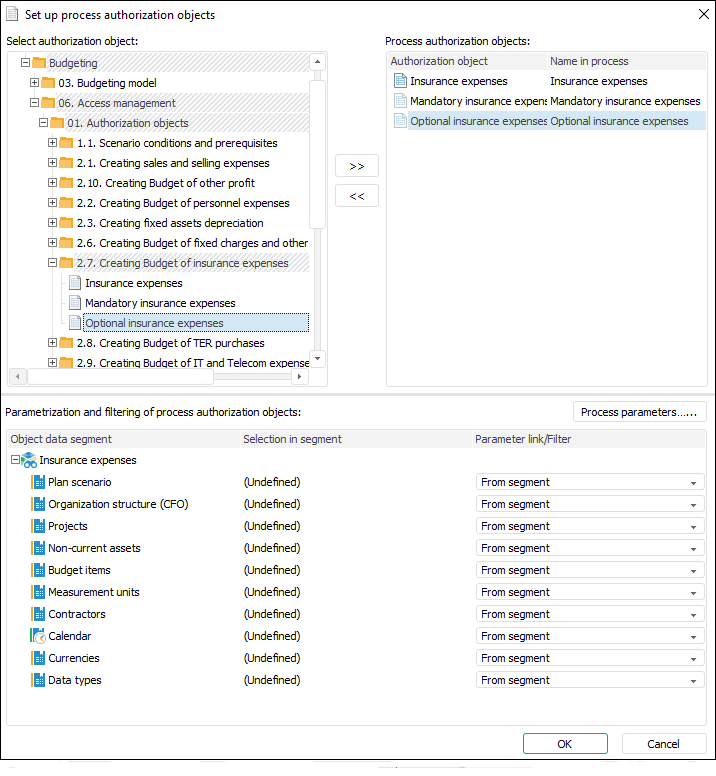

The Set Up Process Authorization Objects dialog box areas
To set up process authorization objects:
Select authorization object in the Select Authorization Object area.
Move selected authorization object to the Process Authorization Objects area using the
button or Drag&Drop.
Set up links between selections in data segments of authorization object and process parameters in the Parameterize and Filter Process Authorization Objects area. In the Parameter Link/Filter select one of the radio buttons:
From Segment. Selection from Authorization Object will be used for dimension. The radio button is selected by default.
Undefined. The dimension will not participate in the process.
Link. Select dictionary which is a process parameter to link with dimension.
NOTE. If the drop-down list of process parameters does not contain the required one, add it by clicking the Process Parameters button. The Process Settings and Parameters dialog box opens where process parameter can be added.
Fix. Select specific values of the dictionary which is the process parameter.On using the authorization object in the Data Entry and Approval steps, fixed selection by dimensions must be fully contained in selection by dimensions of data entry form that is used in the process step.
Example of fixed selection by dimensions
Click the Ok button to save.
After setting up process authorizations objects, go to the process stages and steps creation.
