ChartBox

Description

The ChartBox component implements a container for an express report chart.

Comments

The ChartBox component is implemented by the ChartBox class.

Example

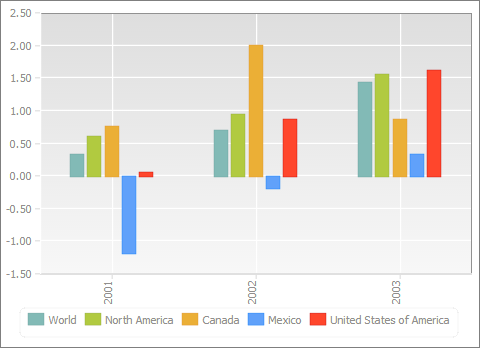

The ChartBox component may look as follows:

Example of ChartMaster and ChartBox Collocation

Example of EaxPropertyBar and ChartBox Components Collocation

Constructor

	Constructor name	Brief description
	ChartBox	The ChartBox constructor creates an instance of the ChartBox component.

Methods

	Method name	Brief description
	getService	The getService method returns a service object to work with express report.

Events

	Event name	Brief description
	MetadataChanged	The MetadataChanged event occurs after changing metadata of express report chart.

Properties inherited from the EaxChartView class

	Property name	Brief description
	ChartType	The ChartType property sets and returns type of express report chart.
	EditMode	The EditMode property sets edit mode for express report chart.
	Instance	The Instance property contains an instance of express report chart.
	LegendPosition	The LegendPosition property determines position of chart legend.
	LoadConfirmThreshold	The LoadConfirmThreshold property sets maximum number of express report chart points.
	MarkersEnabled	The MarkersEnabled property determines whether chart data series markers are displayed.
	MarkersSymbol	The MarkersSymbol property determines a shape of chart data series marker.
	Options	The Options property contains settings of express report chart.
	Overflow	The Overflow property determines whether to show an ellipsis for legend element that overflows the box.
	ScrollerEnabled	The ScrollerEnabled property determines whether scroller is enabled for express report chart.
	ScrollerMaxPointsInSight	The ScrollerMaxPointsInSight property determines maximum number of timeline steps, for which data is displayed on the chart.
	ScrollerPosition	The ScrollerPosition property determines position of chart scroller.
	SelectionEnabled	The SelectionEnabled property determines whether data selection is enabled in the express report chart.
	ShowLegendTooltip	The ShowLegendTooltip property determines whether to show a tooltip for legend elements.
	ShowLoadConfirm	The ShowLoadConfirm property sets whether a message is displayed on exceeding maximum number of express report chart points.
	SignaturesOptions	The SignaturesOptions property determines settings of chart data series.
	Source	The Source property determines the data source for the express report chart.
	UseSelectOnRightClick	The UseSelectOnRightClick property determines whether chart series can be selected by the right mouse click.

Methods inherited from the EaxChartView class

	Method name	Brief description
	getViewMode	The getViewMode method returns value of the View Mode checkbox for an express report.
	isImage	The isImage method determines whether the express report chart is an image.
	isLoaded	The isLoaded method returns whether express report chart is loaded.
	refresh	The refresh method refreshes the specified property of the express report chart.
	refreshAll	The refreshAll property refreshes all objects of the express report chart.
	refreshJSON	The refreshJSON method refreshes the express report chart in accordance with the specified JSON object.
	resetLabels	The resetLabels method resets settings of all chart series labels.
	setPointValue	The setPointValue method sets a value for the specified express report chart point.
	syncOptions	The syncOptions method synchronizes data series settings.
	undoData	The undoData method rolls back a data change for express report chart.

Events inherited from the EaxChartView class

	Event name	Brief description
	DataChanged	The DataChanged event occurs after changing data of express report bubble chart.
	PropertyChanged	The PropertyChanged event occurs after selecting the Settings item in context menu of the express report chart.
	Rendered	The Rendered event occurs after rendering express report chart.
	RequestMetadata	The RequestMetadata event is generated when no metadata is available in express report chart data source.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

Events inherited from the class Control

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

Properties inherited from the class Object

	Property name	Brief description
	Data	The Data property associates a random object with this component.
	Id	The Id property sets component identifier.
	Settings	The Settings property sets the component parameters.

Methods inherited from the class Object

	Method name	Brief description
	clone	The clone method creates a copy of object. It is not implemented in PP.Ui.Control.
	dispose	The dispose method deletes the component.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.
