NavigationBar

Inheritance Hierarchy

          IComponent

          IControl

          INavigationBar

          NavigationBar

Description

The NavigationBar component is used to create a navigation bar.

Working with the Component

A navigation bar is created from vertically arranged tabs. Each tab consists of a title and a controls panel. The tab is activated on clicking its title. If required, each tab can be hidden.

Use software to create a collection of tabs for setting up the component. To create a tab, create an instance of the NavigationBarPad class and include it in the Pads collection of the NavigationBar component. For each tab set up a title (the INavigationBarPad.Header property) and a panel (the INavigationBarPad.Content property). A title can include text and a control. The panel associated with the title is a frame for the form with controls. The form identifier is specified in the INavigationBarPanel.MetabaseObject property.

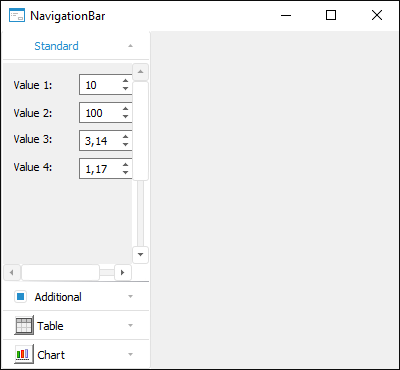

Example

Properties of the NavigationBar Component

  Property name Brief description
ActivePad The ActivePad property determines an active component tab.
Align The Align property determines behavior of the component when its parent component is resized.
AllowDrag The AllowDrag property determines whether an object can be dragged from the component.
AllowDrop The AllowDrop property determines whether the component can accept a dragged object.
Anchors The Anchors property returns settings that determine the percentage of the size change for the current component when the parent component is resized.
Border The Border property determines the borders to be rendered for the component.
Brush The Brush property determines the brush that is used to fill component area.
ClientHeight The ClientHeight property is used to receive or specify the height of the component’s client area.
ClientWidth The ClientWidth property is used to receive or specify the width of the component’s client area.
Color The Color property determines a component background color.
ComponentCount The ComponentCount property returns the number of child components.
Components The Components property returns the child component.
Cursor The Cursor property determines the look of the cursor over the component.
Data The Data property is used to store any custom data.
Enabled The Enabled property determines whether the component is available for the user.
Focused The Focused property returns True if the focus is set on the component.
Font The Font property determines the set of characteristics describing the font that is used to display text.
Height The Height property determines component height.
HelpContext The HelpContext property determines a unique index for the context help section for this component.
Hint The Hint property determines a component tooltip text.
Left The Left property determines the coordinate of the left border of the component.
Name The Name property determines a component name.
Pads The Pads property returns the collection of tabs of the navigation bar.
Parent The Parent property determines a parent component.
ParentColor The ParentColor property determines whether the component inherits the color of the parent component.
ParentFont The ParentFont property determines whether the component uses the font of the parent component.
ParentShowHint The ParentShowHint property determines whether a tooltip is displayed.
PopupMenu The PopupMenu property determines the context menu opened by clicking the component with the additional mouse button.
ShowHint The ShowHint property enables and disables showing a component tooltip.
TabOrder The TabOrder property determines the component position in the tab order.
TabStop The TabStop property determines whether the component is focused when the Tab key is pressed.
Tag The Tag property is not used by the compiler. The user can change the value of the Tag property and use it as he wishes.
Text The Text property determines the row identifying a component for the user.
Top The Top property determines the coordinate of the top border of the component.
Visible The Visible property determines visibility of the component during execution.
Width The Width property determines component width.

Methods of the NavigationBar Component

  Method name Brief description
BeginUpdate The BeginUpdate method prohibits component rerendering.
BringToFront The BringToFront method brings a component to front.
ClientToScreen The ClientToScreen method converts the coordinates of a point specified relative to the component coordinate system into screen coordinates.
DoDragDrop The DoDragDrop method enables the user to start dragging operation.
EndUpdate The EndUpdate method resumes component rerendering.
GetImage The GetImage method returns the image of the component with all the child components.
ScreenToClient The ScreenToClient method converts screen coordinates of a point into coordinates specified relative to the component coordinate system.
SendToBack The SendToBack method sends a component to back.
SetFocus The SetFocus method sets focus to this component.

Events of the NavigationBar Component

  Event name Brief description
OnActivePadChanged The OnActivePadChanged event occurs after changing the active tab of the navigation bar.
OnActivePadChanging The OnActivePadChanging event occurs before changing the active tab of the navigation bar.
OnPadValueChanged The OnPadValueChanged event occurs on changing selection of the checkbox displayed in the tab title.
