The BorderCombo component is a drop-down list for selecting the border type.
The BorderCombo component can be used to set the following border parameters: line color, border line position type and border line type.
Component implemented by the BorderCombo class.
By default the component looks as follows:

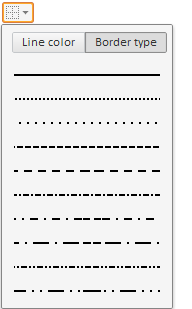

Default available modes are the color selection mode (on the figure above) and the line type selection mode (below):
The button, clicking which opens a panel, displays the selected border line position type (BorderCombo.BorderType). The panel to select the type of border line positioning is displayed if the BorderCombo.BorderTypeOnlt property is set to true, by default the panel is hidden:
A tab used to set up line width is displayed if the BorderCombo.BorderWidthVisible property is set to true:
Example of creating the BorderCombo component
Constructor name | Brief description | |
BorderCombo | The BorderCombo constructor creates an instance of the BorderCombo component. |
Property name | Brief description | |
BorderType | The BorderType property determines a border line position type. | |
BorderTypeOnlt | The BorderTypeOnlt property determines whether a panel to select a border position type is displayed in the component's drop-down part. | |
BorderWidthVisible | The BorderWidthVisible property determines whether the line width setup tab is displayed. | |
Color | The Color property determines line border color. | |
LineColorVisible | The LineColorVisible property determines whether the line color selection tab is displayed. | |
LineType | The LineType property determines a border line type. | |
LineWidth | The LineWidth property determines the value in the value editor on the Width tab. | |
Mode | The Mode property determines an active mode for border type selection. | |
TypesMode | The TypesMode property determines the technology to be used to display border types. |
Method name | Brief description | |
getDropPanel | The getDropPanel method returns a drop-down panel. | |
showDropPanel | The showDropPanel method expands a panel to select a border type. |
Event name | Brief description | |
BorderTypeChanged | The BorderTypeChanged event occurs on selecting a border position type. | |
ColorChanged | The ColorChanged event occurs on selecting a line color. | |
LineTypeChanged | The LineTypeChanged event occurs on selecting a line width. | |
LineWidthChanged | The LineWidthChanged event occurs on changing line width. | |
ModeChanged | The ModeChanged event occurs on changing the displaying mode of the drop-down panel for selecting a border type. | |
ValueChanged | The ValueChanged event occurs after changing border property. |
Property name | Brief description | |
Anchors | The Anchors property determines position of the component placed within container. | |
Animation | The Animation property determines component animation parameters. | |
Bottom | The Bottom property determines a bottom margin if a component is placed inside LayoutPanel. | |
Content | The Content property determines component contents. | |
ContextMenu | The ContextMenu property determines a component's context menu. | |
Data | The Data property is used to store any custom data. | |
Enabled | The Enabled property determines whether a component can be used. | |
Height | The Height property determines component height. | |
IsRTL | The IsRTL property determines whether component elements are aligned to the right. | |
IsVisible | The IsVisible property determines whether a component is displayed. | |
Left | The Left property determines a left margin if a component is placed inside GridPanel. | |
Opacity | The Opacity property determines component transparency. | |
Parent | The Parent property determines a parent component of a control. | |
ParentNode | The ParentNode property determines a parent DOM node. | |
ResourceKey | The ResourceKey property determines a component resource key. | |
Right | The Right property determines a right margin if a component is placed inside LayoutPanel. | |
Rotate | The Rotate property determines a component rotation angle. | |
ShowToolTip | The ShowToolTip property determines whether a tooltip of the component can be displayed. | |
Style | The Style property determines a component style. | |
TabIndex | The TabIndex property determines the order of the control element passing inside the container. | |
Tag | The Tag property determines a JSON object associated with the component. | |
ToolTip | The ToolTip property determines text of component tooltip. | |
Top | The Top property determines a top margin if a component is placed inside GridPanel. | |
Value | The Value property determines a component value. | |
Width | The Width property determines component width. |
Method name | Brief description | |
The addClass method adds a CSS class to the component. | ||
addEventHandler | The addEventHandler method adds an event handler to a DOM node. | |
The addStateClass method adds a CSS class to the component and removes the previous CSS class. | ||
The addToNode method adds a component to the specified node. | ||
bindEvents | The bindEvents method subscribes an element to all available events. | |
The getAnchorFlags method returns JSON object that contains settings of the current component's position. | ||
The getClass method returns the current CSS classes of the component. | ||
The getCssStyle method returns style for the specified node. | ||
The getDomNode method returns main DOM node of the component. | ||
The getFocused method determines whether the component is focused. | ||
getIsBinded | The getIsBinded method returns whether an element is subscribed to all DOM node events. | |
The hide method hides a control. | ||
The hideToolTip method clears tooltip timeout and hides the tooltip if it is shown. | ||
refreshStyle | The refreshStyle method refreshes element CSS styles. | |
The removeClass method removes CSS class from the component. | ||
removeEventHandler | The removeEventHandler method removes event handler from DOM node. | |
removeFromDOM | The removeFromDOM method removes node from the DOM structure. | |
The removeStateClasses method removes CSS classes of the component. | ||
The setDraggable method determines whether a component can be dragged on the HTML page. | ||
The setFocus method sets the component focus. | ||
The setIsHovered method sets up component displaying only on mouseover. | ||
The setSize method establishes the sizes of the component. | ||
The show method displays a control. | ||
unBindEvents | The unBindEvents method unsubscribes an element from all standard events. | |
The updatePosition method updates size and position when absolute positioning based on the current parameters is used. | ||
The updateSize method updates the component size on changing the size of the container that contains the component. |
Event name | Brief description | |
Drag | The Drag event occurs on clicking and holding the mouse button. | |
DragEnd | The DragEnd event occurs when dragging the component finishes. | |
DragStart | The DragStart event occurs when dragging the component starts. | |
OnContextMenu | The OnContextMenu event occurs on calling context menu of the component. | |
SizeChanged | The SizeChanged event occurs after the component is resized. | |
SizeChanging | The SizeChanging event occurs during component resize. |
Property name | Brief description | |
The Id property determines a repository object identifier. |
Method name | Brief description | |
clone | The clone method creates an object copy. | |
dispose | The dispose method deletes the component. | |
getHashCode | The getHashCode method returns hash code of repository object. | |
getId | The getId method returns repository object identifier. | |
getSettings | The getSettings method returns repository object settings. | |
getTypeName | The getTypeName method returns the name of the object type without the namespace, to which it belongs. | |
isEqual | The isEqual method determines whether the specified object is equal to the current repository object. | |
isLive | The isLive method determines validity of repository object. | |
removeAllEvents | The removeAllEvents method removes all object event handlers by the specified context. | |
setId | The setId method determines a repository object identifier. | |
setSettings | The setSettings method determines repository object settings. | |
defineProps | The defineProps method creates get and set methods from name array for the specified class. | |
keys | The keys method returns array of methods and properties names for the specified object. |
