Managing Parameters

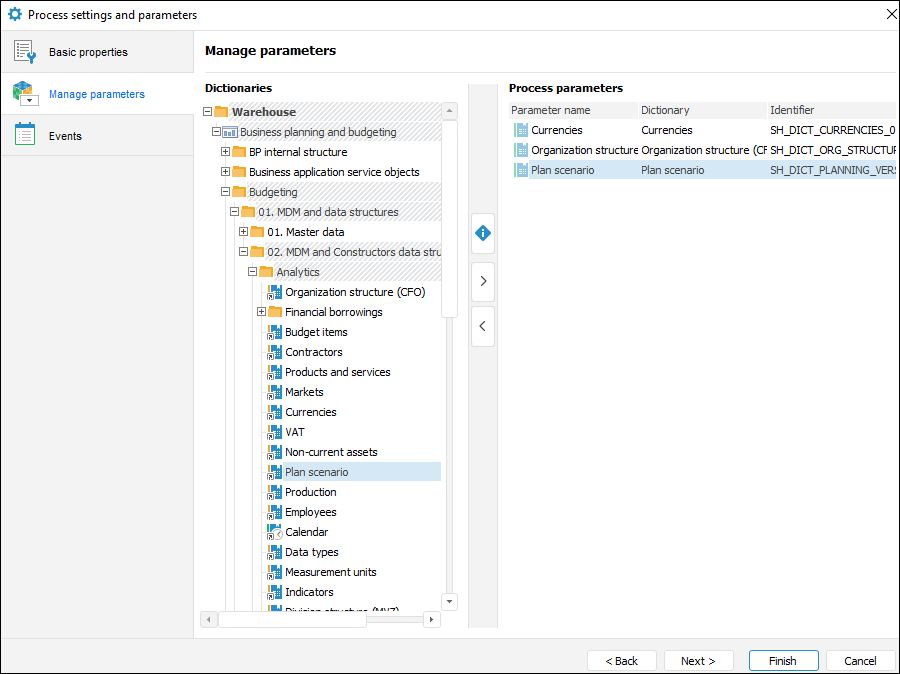

To add a dictionary as a process parameter:

1. Select the dictionary in the Dictionaries list.

2. Execute one of the operations:

• Click the Add button.

• Double-click the selected dictionary.

After executing the operations, the selected dictionary will be added to the process parameters list.

If, during business process execution, one assumes to make changes in the dictionary added to the business process as a parameter, it is recommended for correct work of the business process to set up caching mode by timestamp in the dictionary. To do this, set the IMetabaseObject.CachingMode property of the dictionary to MetabaseObjectCachingMode.FlushCacheByTimestamp. This recommendation is also displayed as a pop-up message in the desktop application on clicking the Information button or on hovering the cursor on this button.

To avoid data corruption in the dictionary, it is not recommended to start several simultaneous business processes, which make changes in the specified dictionary during their execution.

To rename a process parameter:

1. Open process name in the edit mode:

• Double-click the parameter name.

• Select the Rename item in the parameter's context menu.

• Press F2.

2. Rename the process and press the ENTER key.

After executing the operations, the process parameter will be renamed.

To delete process parameter, select one of the operations:

• Click the Remove button.

• Select the Delete item in the parameter's context menu.

• Press the DELETE key.

A confirmation dialog box opens.
