Selecting Calendar Dimension Elements

When working with elements selection of calendar dimension it is available to choose selection mode: elements or levels.

Setting Up Selection Mode

To set up selection mode of calendar dimension elements:

  1. Click the Structure and Parameters button on the Data ribbon tab.

NOTE. In the Reports tool select the Tools > Parameters main menu item.

  1. In the dialog box that opens go to the Data Source Structure tab.

  2. Choose selection type in the drop-down list next to calendar dimension name.

Calendar dimension tab appearance on the side panel depends on the chosen selection mode:

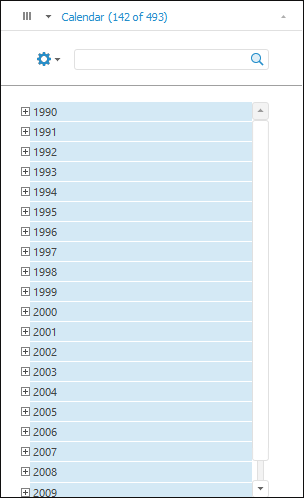

The By Elements Only Mode

This mode is used by default.

Various selection types are available to work with elements.

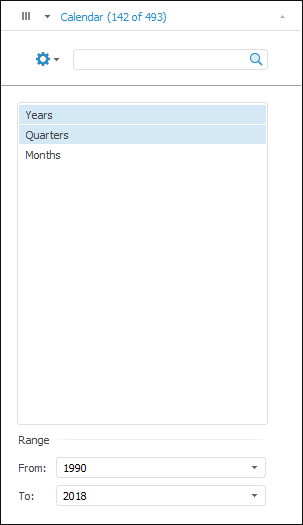

The By Levels Only Mode

Levels available to select are taken from calendar dictionary. If alternative hierarchy is applied to calendar dimension, the list of levels is formed based on its levels:

The Levels mode is not available if:

NOTE. On moving of calendar dimension from fixed ones, the By Elements Only mode is set for dimension element selection.

To set selection:

1. Select level elements

2. Set period limits

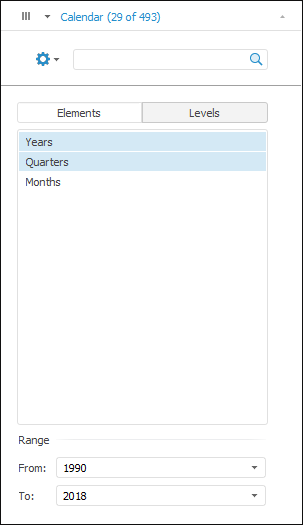

The By Elements and Levels Mode

This mode supposes that selection modes can be toggled: by elements or by levels:

Depending on the selected radio button, tab appearance is similar to calendar dimension tabs, for which the By Elements Only or By Levels Only mode is set.

See also:

Working with Dimension Elements
