Data Labels

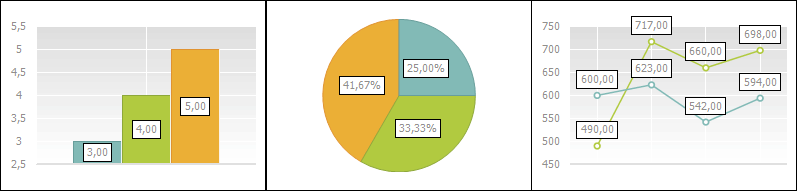

Data labels contain information on series or specific data points and make the chart easier to understand. Depending on the information to be selected in the chart, the user can add data labels for:

The following data label settings are available:

Label position.
Label direction.
Label type. It is available only in the web application in the Analytical Queries (OLAP) and Dashboards tools.
Label text.
Label font.

Use the Data Labels dialog box for advanced setup of data labels.

NOTE. Advanced settings determined in the desktop application are passed to the web application, except for data label border and fill settings.

Quick Setup of Series Data Labels

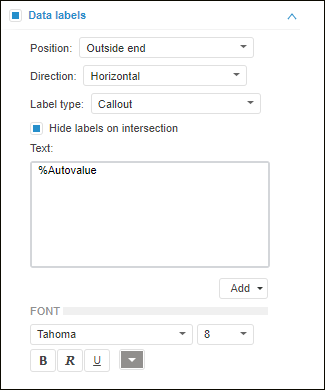

To set up data labels for all series, use the the Data Labels tab on the side panel.

Make sure that the side panel is displayed.
Select the chart in the working area.
Select the Format radio button on the side panel and go to the Data Labels tab.

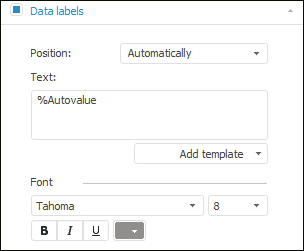

To display data labels, select the Data Labels checkbox and determine the following settings:

Depending on the selected chart type the Position drop-down list enables the user to select various options of data label position:

The Automatically, Center and Other Settings options are available for all series types.
The following options are available for a column and a sector: Inside End, Outside End, Inside Base.
The following options are available for a line, area and point: Right, Left, Top and Bottom.

Below is the example of displaying data labels for a histogram with different position settings (center, inside end, outside end and inside base respectively):

TIP. To quickly set up data labels position for the chart, click the Data Labels button in the View group of the Chart ribbon tab. Select label position option in the drop-down menu of the button. When the Data Label Settings option is selected, the Data Labels tab is displayed on the side panel in the web application, and the Chart Parameters dialog box opens on the Data Labels tab in the desktop application.

Label text is located horizontally by default. If required, text can be rotated by 90 or 270 degrees. To change text direction, select the required option in the Direction list.

Label text direction cannot be changed if the Other Settings option is selected in the Position drop-down list.

A custom text, template can be set for the label, or combination of both. To enter text and templates, use the Text box.

To add a template to the label text:

Click the Add Template button.
Select one of available text templates in the drop-down list.

The selected template will be pasted after cursor position.

Set up font:

Font type. In the drop-down list select one of the fonts available in the operating system.
Size. In the drop-down list select the required font size or enter it using the keyboard.
Font style. Click the buttons that determine the font style:

B. Bold.
I. Italic.
U. Underline.

When the font style button is pressed, the corresponding font style is used.

Font color. Select the required font color in the drop-down palette. To set a new font color, click the Spectrum button in the standard color palette and select a color in the advanced color palette.

NOTE. Label accuracy setup is available only in the web application and only for a specific data series.

To set up numeric values accuracy displaying in data labels, use the Accuracy box. By default, values are displayed within the accuracy of two decimal points.

NOTE. It is available only in in the web application in the Analytical Queries (OLAP) and Dashboards tools for the Chart visualizer.

To determine data label types, use the Label Type drop-down list:

Select the required type of data label displaying in the Label Type list:

Simple. The label is displayed as a mark not connected to the series (default).
Callout. The label is displayed as a callout connected to the series with a line.
Pointer. The label is displayed as a pointer connected to the series with a line.

The Hide Labels on Intersection checkbox is available for pie charts and doughnut charts if the Outside End label position option is selected for the Callout and Pointer data types.

Pie chart appearance if the Hide Labels on Intersection checkbox is deselected:

Pie chart appearance if the Hide Labels on Intersection checkbox is selected:

As a result, a new data label positioning mechanism is used, which prevents their intersection.

Depending on the selected chart type and label position, the Hide Labels on Intersection checkbox is available. Use this checkbox to prevent data label intersection.

To set up data labels of points in the particular chart data series, use the Data Labels group on the Data Series side panel tab. The Data Labels group looks the same as the Data Labels tab on the side panel.

Make sure that the side panel is displayed.
Select the chart in the working area.
Select the Format radio button on the side panel and go to the Data Series tab.
Select the required data series.

To display data labels, select the Data Labels checkbox and determine the following settings:

Quick Setup of Level Line Data Labels

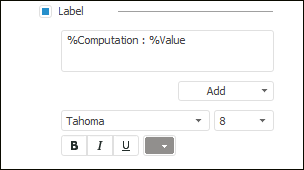

To set up level line labels, use the Labels group on the Level Lines side panel tab.

Make sure that the side panel is displayed.
Select the chart in the working area.
Select the Format radio button on the side panel and go to the Level Lines tab.

Set up font:

Font type. In the drop-down list select one of the fonts available in the operating system.
Size. In the drop-down list select the required font size or enter it using the keyboard.
Font style. Click the buttons that determine the font style:

B. Bold.
I. Italic.
U. Underline.

When the font style button is pressed, the corresponding font style is used.

Font color. Select the required font color in the drop-down palette. To set a new font color, click the Spectrum button in the standard color palette and select a color in the advanced color palette.

To edit or add a template to the label text:

Click the Add button next to the edit box.
Select one of the available level line label text templates in the drop-down list:

%Computation. The Function template is used as a level line label.
Depending on the selected label type the chart plot area will show the level line label as follows:

Constant.
<Function name>.

%Value. The Value template is used as a level line label.
