Repository

The Repository connector is an object that is used to load data to repository objects.

After adding the connector to the ETL task workspace set basic properties, data source in repository, export options.

Depending on repository object used as consumer, consumer context menu will contain additional items:

Basic Properties

In basic properties object name, identifier and comment are set.

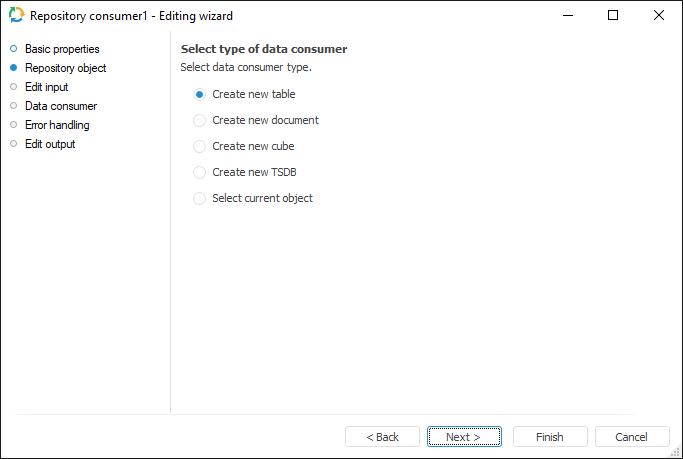

Repository Object

The Repository Object page is displayed only on creating a new consumer:

Select a consumer type, to which export is executed. If a new object is created, on moving to the Data Consumer page it is prompted to save a new object to repository.

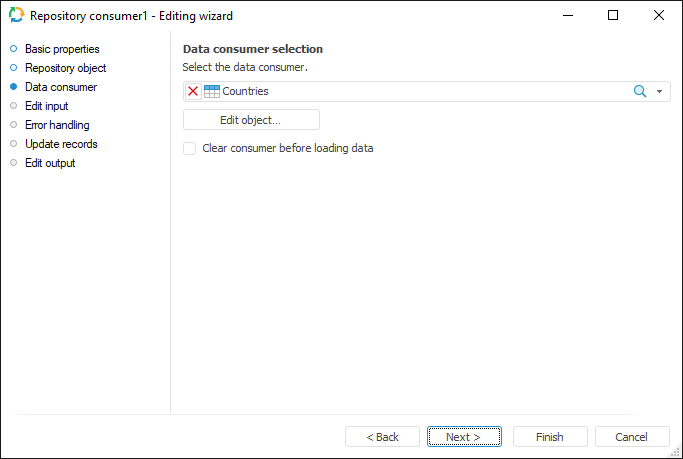

Data Consumer

Select an object in the current repository to be used as a data consumer.

The following repository objects can be used as consumers:

If the Clear Consumer Before Loading Data checkbox is selected, all data contained in the consumer object is deleted before loading. If the checkbox is deselected, new data is added and existing data is updated.

If consumer is a table MDM dictionary, then method of elements update can be selected in the drop-down list. The following options are available:

NOTE. On selecting a standard cube as a consumer, time series database, table MDM dictionary or composite table MDM dictionary, the Clear Consumer Before Loading Data checkbox and the Edit Object button are not available.

The Edit Object button opens the editing wizard of the selected object if the wizard was prepared.

If a new consumer is created, and the option of creating a new object is selected on the Repository Object page, on moving to the current page it will be prompted to save a new object to repository. The created object is automatically selected in the drop-down list. The list will also contain the filter that enables the user to select other objects of one type that was specified on the Repository Object page.

Export Options

To set up parameters used to determine exported range of data, use the Export Options page.

NOTE. To display this page in the Repository data consumer wizard, specify on the Data Consumer page a file of the Document type as a data consumer.

Settings depend on the document type and are the same as export settings for data consumer of the same format.

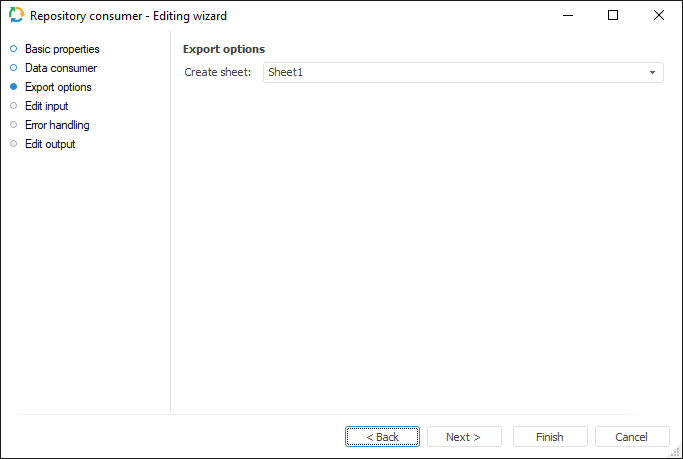

For example, using the document with the *.xlsx extension as a data consumer, the Export Options page looks as follows:

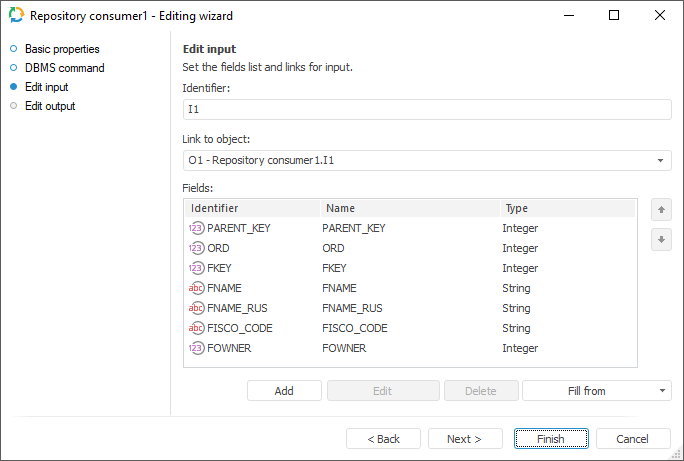

Edit Input

To set a list of fields and link to input, use the Edit Input page.



The following parameters are available on the page:

Identifier

Link to object

Fields

NOTE. The screenshot represents edit wizard for the Repository data consumer.

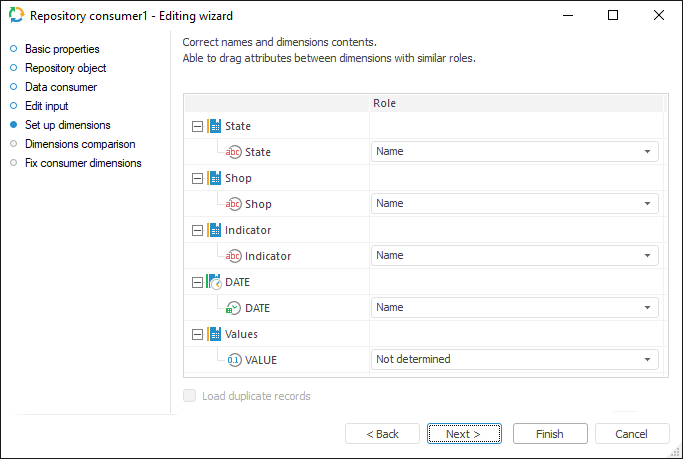

Setting Up Dimensions

To change name of dimensions and its contents, use the Dimensions Setup page.

Rename dimension

Change dimension contents

According to the type of selected data provider, on clicking the Next button the user moves to the next page.

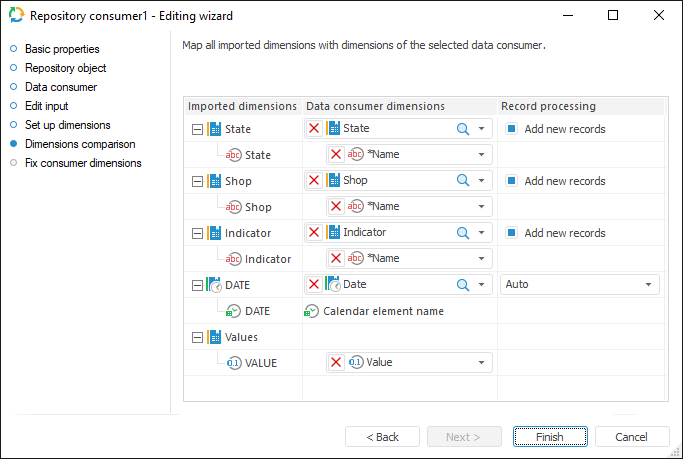

Dimensions Comparison

To link imported dimensions with existing repository dictionaries, use the Dimensions Comparison page.

To link dimension with existing dictionary, select dictionary in the drop-down list next to required dimension. The following items are available for selection:

To add new elements to the dimension from attribute of selected dictionary on import, select the Add New Records checkbox. The checkbox is selected by default. If the checkbox is deselected, elements are not be added. Data is imported only for the elements in the provider and in the selected dictionary. Only elements existing in the dictionary are used for data linking.

NOTE. Take into account existing features on importing to the hierarchical or multilingual dictionaries.

If dimension is not linked with existing dictionary, a new table MDM dictionary is created for it.

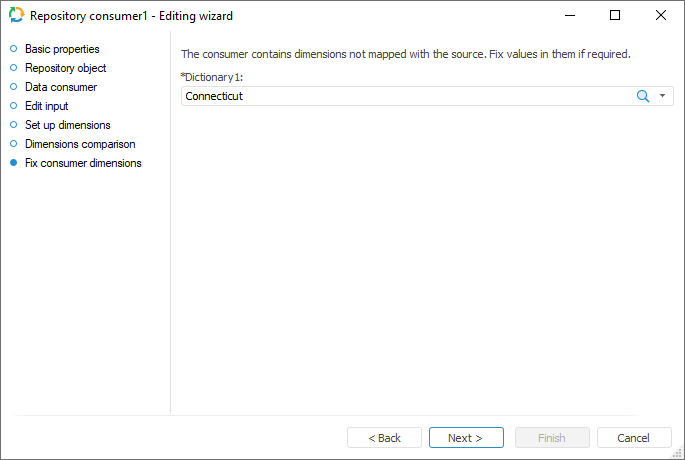

Fixing Consumer Dimensions

To fix selection of the data consumer dimensions, which were not mapped with data source dimensions, use the Fix Consumer Dimensions page. The page is available if the existing cube or time series database is selected as a data consumer, and at least one dimension binding is reset on the Dimensions Comparison page.

Fix the dimensions by selecting the required element in the drop-down lists. The selected elements are bound with the copied data.

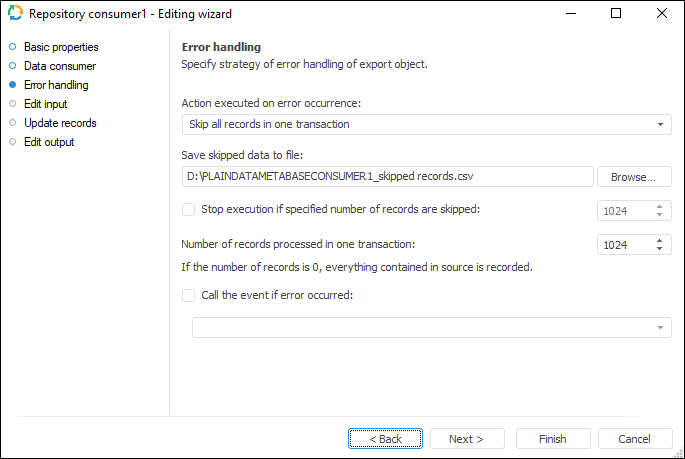

Error Handling

The page is available only in wizards of consumer objects and in the Copy Data object. The page is displayed for repository consumer if a table or document object is selected as a data consumer.

Determine behavior of the object on error occurrence:

  1. Select the action executed if errors occur in the drop-down list Action Performed on Error Occurrence:

NOTE. The Skip All Records in One Transaction option is not available for the Excel (*.xlsx) consumer.

On selecting the Stop Task Calculation and Skip Only Incorrect Records actions, the task is also divided into transactions, and the specified number of records affects speed of task execution.

A file used to store skipped records can be specified on selecting the Skip Only Incorrect Records or Skip All Records In One Transaction actions.

  1. In the Save Skipped Data to File box select the file to save skipped records. If there is no file with such a name, it is created automatically.
    Skipped records are stored in the specified file if the Skip Only Incorrect Records or Skip All Records in One Transaction actions are selected for task errors handling. Data is deleted in the existing file before loading new data to it.
    Available file formats:

    • Encoding: Unicode.

NOTE. If on exporting there were no skipped records, the text "??" is written to the file. This means an empty Unicode file with the Win encoding.

    • Rows separator: {Carriage Return}{Line Feed}

    • Fields separator: ; (semicolon)

    • Text terminator: "" (double quotation marks).

NOTE. By default the following file name is formed: <consumer identifier>_skipped records.csv.

Each skipped record is registered in the ETL log as a single record containing the number of skipped record, error text and field. If all records within transactions are skipped because of one error record, the log displays this reason in the Description field.

  1. If required, specify the maximum number of error records, over which export is stopped. To do that, select the Stop Execution if Specified Number of Records are Skipped checkbox and set maximum number of records.
  2. Specify the number of records processed within a single transaction in the Number of Records Processed in One Transaction box. One thousand records are processed by default.
  3. If required, set the unit that starts on error in the ETL task. To do it, select the Call the Event, If Error Occurred checkbox and specify the unit set in the ETL task settings.

Updating Records

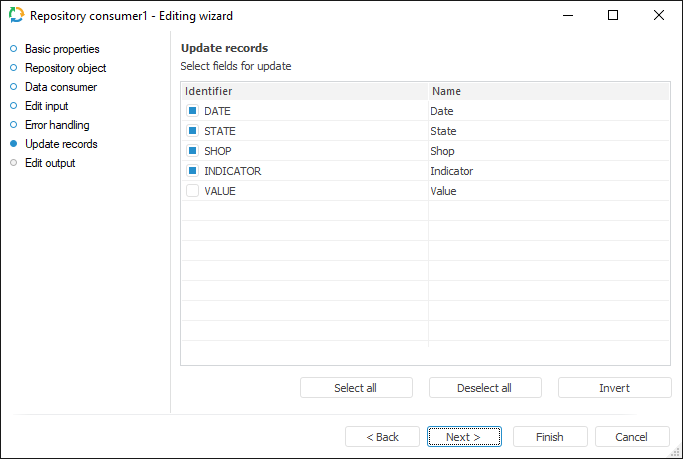

To select fields for update in data provider and consumer, use the Update Records page.

In the Identifier column, select checkboxes of the fields, which will be used to compare records in provider and consumer.

To select all fields for update, click the Select All button.

To deselect all fields, click the Deselect All button.

To deselect simultaneously selected fields and select the deselected ones, click the Invert button.

NOTE. Record update is relevant if the consumer is not cleared before data loading.

Edit Output

To set a list of fields and output link, use the Output Edit page.

The following settings are available on the page:

Identifier

Link to object

Fields

NOTE. The screenshot represents the edit wizard for the Repository data provider.
