NavigationBar

Description

The NavigationBar component is a side panel used to navigate properties of the active component and to control properties.

The NavigationBar component includes several tabs. Clicking tab headers expands internal panels with arbitrary contents. The component does not allow opening several tabs at the same time. Opening a tab closes the previous tab.

Comments

The component is implemented by the NavigationBar class.

The role of container for side panel can be acted by the SlidePanel component.

Example

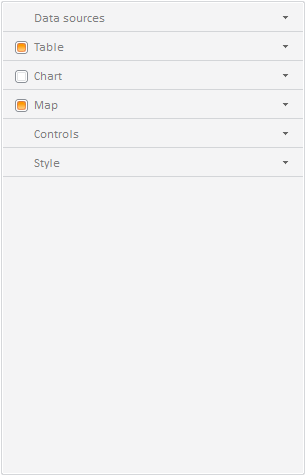

The component looks as follows:

It the figure above all tabs of the navigation bar are collapsed. Tab headers can contain such controls, as ComboBox, Button, CheckBox, RadioButton. By default the CheckBox control is set for tab headers. This control is visible, but it can be hidden using the IsHeaderControlVisible property.

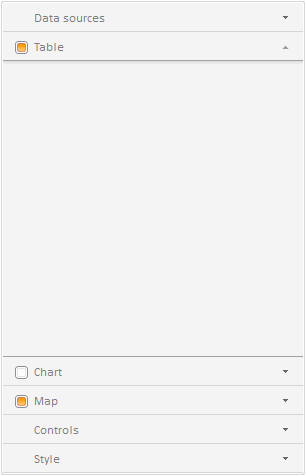

On opening a tab its internal panel is expanded and the tabs below are shifted downward:

If the navigation bar does not have enough space to expand an inner panel, the tabs are hidden starting from the lowermost tab, and a button with a drop-down menu named button appears.

For more detailed component description please refer to the page Example of Creating the NavigationBar Component.

Constructor

	Constructor name	Brief description
	NavigationBar	The NavigationBar constructor creates an instance of the NavigationBar component.

Properties

	Property name	Brief description
	IsAlwaysExpanded	The IsAlwaysExpanded property determines whether the user can hide an opened tab without expanding other tabs.
	Items	The Items property sets a list of panels included into the component.

Methods

	Method name	Brief description
	addItem	The addItem property adds a tab with drop-down panel to the navigator.
	beginUpdate	The beginUpdate method disables rerendering of the property panel until the endUpdate method is called.
	endUpdate	The endUpdate method enables properties panel rerendering and refreshes it.
	getActiveItem	The getActiveItem method returns the active panel tab.
	getContentAutoFit	The getContentAutoFit method returns whether contents autofit is used in the properties panel.
	getExpandedAreaHeight	The getExpandedAreaHeight method returns the height of properties panel expanded area.
	getItem	The getItem method returns child element of the navigation bar by the specified index.
	getItemByPoint	The getItemByPoint method returns properties panel tab by the specified coordinates.
	getLayoutItems	The getLayoutItems method returns an array of properties panel elements.
	getMaxAreaHeight	The getMaxAreaHeight method returns the maximum height of properties panel.
	getMinAreaHeight	The getMinAreaHeight method returns the minimum height of properties panel.
	insertItem	The insertItem method adds an element to the properties panel by index or element.
	isAnimation	The isAnimation method returns whether animation is played in the properties panel.
	isUpdating	The isUpdating method determines whether the properties panel is being updated.
	removeItem	The removeItem method removes the specified tab.
	removeItemByIndex	The removeItemByIndex method removes a tab by its index.
	stopAnimation	The stopAnimation method stops animation in the properties panel.

Events

	Event name	Brief description
	Collapsed	The Collapsed event occurs after collapsing panel tabs.
	Expanded	The Expanded event occurs after expanding a panel tab.
	SelectableSelected	The SelectableSelected event occurs on the mouse click on the property panel.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

Events inherited from the class Control

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

Properties inherited from the Object class

	Property name	Brief description
	Data	The Data property associates a random object with this component.
	Id	The Id property sets component identifier.
	Settings	The Settings property sets the component parameters.

Methods inherited from the Object class

	Method name	Brief description
	clone	The clone method creates a copy of object. It is not implemented in PP.Ui.Control.
	dispose	The dispose method deletes the component.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.
