JSON
The JSON connector is an object that is used to get data from files in the JSON format (*.json). Both a local and a file obtained from any website can be used as a data provider.
NOTE. Only files with UTF-8 encoding are supported.
After adding the connector to the ETL task working area, set import options, edit connector output.
Import Options

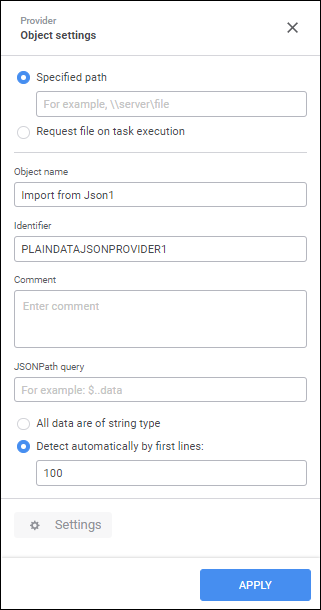

On the properties panel specify the file with imported data and a JSONPath query that is used to get data.
To display the properties panel
The following settings are available on the properties panel:
File Import Method. Select method for getting file:
Specified Path. The radio button is selected by default, and the file path box is active. After the path is entered, the file is imported, and one can continue set up using file structure. When executing ETL task, the file is also searched at the specified path.
Request File on Task Execution. Select this checkbox if it is required to select file on each ETL task execution. To execute primary setup of the data provider, click the
Add button in the Setup File box:
The local file selection dialog box opens. Working with the dialog box order depends on the browser in use. After the file is selected, it is saved to the folder with user operating system. The file will be used only during the current wok with the ETL task instance. After the task is closed, the file is deleted from the temporary folder.
When executing ETL task, the file selection dialog box opens. If structure of the selected file does not correspond to the file used during the setup, an exception is thrown.
Object Name. If required, change connector name.
Identifier. If required, change object identifier. Identifier should be unique with the ETL task. Usage of Latin letters, numbers and the "_" character is allowed. The identifier should start with a letter.
NOTE. If required, add a note to an object. The note can contain any information.
JsonPath Query. Specify the query in the JSONPath Query box, according to which imported data is selected.
NOTE. For details on how to create JSONPath queries see additional guides, such as MSDN.
All Data are of String Type. The radio button is deselected by default. Select the radio button to convert all data to string type and import data to string fields.
Detect Automatically by First Lines. The radio button is selected by default. A data type will be determined automatically by the first 100 lines. If required, change the number of lines, by which data type will be determined.
Settings. The button is used to edit connector output.
To save the changes, click the Apply button.
To close the connector properties panel without saving, click the
Close button.
Settings button.
Create Link button and select an object output. If the list of provider and consumer fields fully matches, all fields will be linked automatically. A link between fields can also be set up in the
Actions button and select the Fill from Provider item.
