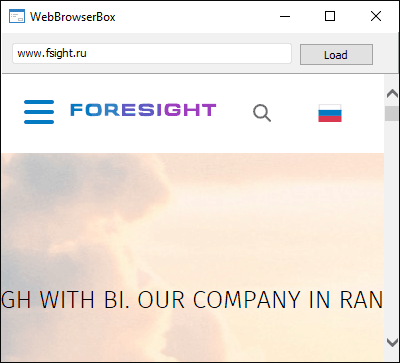

The WebBrowserBox component is used to load and display web pages.
To load a web page, use the Navigate method. If the HTML code is available, it can be entered in the DocumentText property. A loaded page can be managed via properties and methods of the WebBrowser object, which the WebBrowserBox component is based on. Properties and methods of the IWebBrowser2 interface are also supported that are used on working with Internet Explorer browser instances. The work is executed using the OleObject property. The WebBrowser/IWebBrowser2 description is presented in MSDN.
Navigation may result in various errors in the component, which cause issues with correct displaying of a web page. The cause of it is that WebBrowser uses core of outdated web browser Internet Explorer 7.0. To solve the problem, apply the method described in the Internet Feature Controls (MSDN) article. In the registry key [HKEY_LOCAL_MACHINE (or HKEY_CURRENT_USER)\Software\Microsoft\Internet Explorer\Main\FeatureControl\FEATURE_BROWSER_EMULATION] create the REG_DWORD parameter named as the started application (in case of Foresight Analytics Platform startup - it is a parameter named studio.exe or pp.exe) and set the value corresponding to the required version of Internet Explorer (values are given in the table specified in the link). After this the component uses emulation of more recent version of the Internet Explorer browser that will help to avoid errors linked to different browser versions.
| Property name | Brief description | |
 |
Align | The Align property determines behavior of the component when its parent component is resized. |
|
AllowDrag | The AllowDrag property determines whether an object can be dragged from the component. |
|
AllowDrop | The AllowDrop property determines whether the component can accept a dragged object. |
|
Anchors | The Anchors property returns settings that determine the percentage of the size change for the current component when the parent component is resized. |
|
BorderStyle | The BorderStyle property determines a component border style. |
|
Brush | The Brush property determines the brush that is used to fill component area. |
|
ClientHeight | The ClientHeight property is used to receive or specify the height of the component’s client area. |
|
ClientWidth | The ClientWidth property is used to receive or specify the width of the component’s client area. |
|
Color | The Color property determines a component background color. |
|
ComponentCount | The ComponentCount property returns the number of child components. |
|
Components | The Components property returns the child component. |
|
Cursor | The Cursor property determines the look of the cursor over the component. |
|
Data | The Data property is used to store any custom data. |
|
DocumentText | The DocumentText property determines the HTML code of a page loaded to the component. |
|
Enabled | The Enabled property determines whether the component is available for the user. |
|
Focused | The Focused property returns True if the focus is set on the component. |
|
Font | The Font property determines the set of characteristics describing the font that is used to display text. |
|
Height | The Height property determines component height. |
|
HelpContext | The HelpContext property determines a unique index for the context help section for this component. |
|
Hint | The Hint property determines a component tooltip text. |
|
Left | The Left property determines the coordinate of the left border of the component. |
|
Name | The Name property determines a component name. |
|
OleObject | The OleObject property returns the web page loaded to the component as the OLE object. |
|
Parent | The Parent property determines a parent component. |
|
ParentColor | The ParentColor property determines whether the component inherits the color of the parent component. |
|
ParentFont | The ParentFont property determines whether the component uses the font of the parent component. |
|
ParentShowHint | The ParentShowHint property determines whether a tooltip is displayed. |
|
PopupMenu | The PopupMenu property determines the context menu opened by clicking the component with the additional mouse button. |
|
Scrolls | The Scrolls property returns parameters of component's scrollbars. |
|
ShowHint | The ShowHint property enables and disables showing a component tooltip. |
|
TabOrder | The TabOrder property determines the component position in the tab order. |
|
TabStop | The TabStop property determines whether the component is focused when the TAB key is pressed. |
|
Tag | The Tag property is not used by the compiler. The user can change the value of the Tag property and use it as he wishes. |
|
Text | The Text property determines the row identifying a component for the user. |
|
Top | The Top property determines the coordinate of the top border of the component. |
|
Visible | The Visible property determines visibility of the component during execution. |
|
Width | The Width property determines component width. |
| Method name | Brief description | |
 |
BringToFront | The BringToFront method brings a component to front. |
|
ClientToScreen | The ClientToScreen method converts the coordinates of a point specified relative to the component coordinate system into screen coordinates. |
|
DoDragDrop | The DoDragDrop method enables to start dragging operation. |
|
GetImage | The GetImage method returns the image of the component with all the child components. |
|
Navigate | The Navigate method loads a web page to the component, which URL is passed as an input parameter. |
|
Refresh | The Refresh method refreshes the loaded web page. |
|
ScreenToClient | The ScreenToClient method converts screen coordinates of a point into coordinates specified relative to the component coordinate system. |
|
SendToBack | The SendToBack method sends a component to back. |
|
SetFocus | The SetFocus method sets focus to this component. |
| Event name | Brief description | |
 |
OnBeforeNavigate2 | The OnBeforeNavigate2 event occurs before navigating to a web page. |
|
OnBeginDrag | The OnBeginDrag event occurs for a component when the user starts to drag an object from the component. |
|
OnClick | The OnClick event occurs if the user clicks the component area. |
|
OnDblClick | The OnDblClick event occurs if the user double-clicks the component area. |
|
OnDocumentComplete | The OnDocumentComplete event occurs after loading a web page. |
|
OnDragDrop | The OnDragDrop event occurs for the component if the user drops a dragged object over it. |
|
OnDragEnter | The OnDragEnter event occurs when a dragged object crosses the borders of this component. |
|
OnDragLeave | The OnDragLeave event occurs when a dragged object leaves the borders of this component. |
|
OnDragOver | The OnDragOver event occurs for the component when the user drags an object over it. |
|
OnEnter | The OnEnter event occurs when the component receives focus. |
|
OnExit | The OnExit event occurs when the component loses focus. |
|
OnHScroll | The OnHScroll event occurs when horizontal scrollbar slider changes its position. |
|
OnKeyDown | The OnKeyDown event occurs if the component is focused and a keyboard key is pressed. |
|
OnKeyPress | The OnKeyPress event occurs if the component is focused when the user presses a character key. |
|
OnKeyPreview | The OnKeyPreview event occurs prior to each event related to key pressing. |
|
OnKeyUp | The OnKeyUp event occurs if the component is focused and the user releases any button previously pressed. |
|
OnMouseDown | The OnMouseDown event occurs if the pointer is in component's area and a mouse key is pressed. |
|
OnMouseEnter | The OnMouseEnter event occurs when mouse cursor enters the component area. |
|
OnMouseHover | The OnMouseHover event occurs when mouse cursor is held in the component area. |
|
OnMouseLeave | The OnMouseLeave event occurs when mouse cursor leaves the component area. |
|
OnMouseMove | The OnMouseMove event occurs on moving the cursor over component. |
|
OnMouseUp | The OnMouseUp event occurs on releasing mouse button when the cursor is in component area. |
|
OnMouseWheel | The OnMouseWheel event occurs if the component is focused when the mouse wheel is rotated. |
|
OnNavigateComplete2 | The OnNavigateComplete2 event occurs after navigating to a new web page. |
|
OnVScroll | The OnVScroll event occurs when vertical scrollbar slider changes its position. |
