IEaxChart.BuildPointNameHierarchy

Syntax

BuildPointNameHierarchy: Boolean;

Description

The BuildPointNameHierarchy property enables or disables creating point hierarchy for the chart.

Comments

Hierarchy of points is used for predictive compression of signatures by levels. The express analysis supports creating point hierarchy only when these points have the calendar typeDate (calendar dimension is positioned along the X axis).

If the BuildPointNameHierarchy property is set to True, additional settings of Scale Type become available in the chart properties:

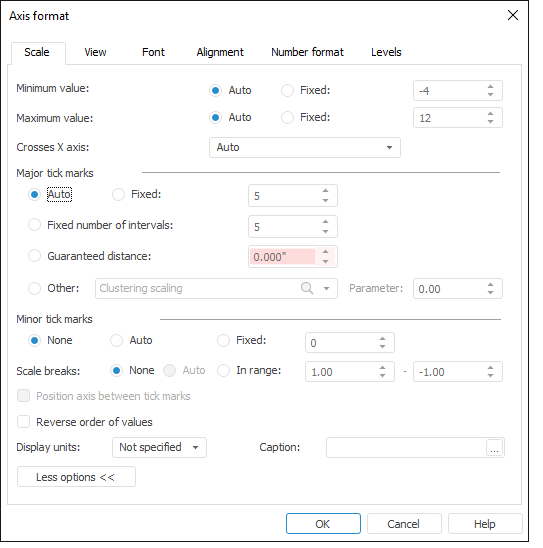

A scale without a hierarchy:

A scale with enabled hierarchy:

Example

Executing the example requires an express report with the EXPRESS_REPORT identifier and a chart available in this report.

Sub Main;
Var
    MB: IMetabase;
    Analyzer: IEaxAnalyzer;
    EChart: IEaxChart;
Begin
    MB := MetabaseClass.Active;
    Analyzer := MB.ItemById("EXPRESS_REPORT").Edit As IEaxAnalyzer;
    EChart := Analyzer.Chart;
    EChart.BuildPointNameHierarchy := True;
    (Analyzer As IMetabaseObject).Save;
End Sub Main;

After executing the example the additional settings of Scale Type become available in the chart properties.
