LegendBase.ContentAlignment

Syntax

ContentAlignment: PP.HorizontalAlignment;

Description

The ContentAlignment property specified alignment of legend contents.

Comments

Use JSON or the setContentAlignment method to set the property value, and the getContentAlignment method to get the property value.

Example

To execute the example, the HTML page must contain the BubbleChart component named bubbleChart (see Example of Creating the BubbleChart Component). Change legend contents alignment, set legend header and footer, hide data absence label, set that legend will overlap the bubble chart main area, show legend type, and process the HeaderClicked event:

// Get value interval legend
var legend = bubbleChart.getLegends()[0];
// Set legend width
legend.setWidth(600);
// Set legend contents alignment
legend.setContentAlignment(PP.HorizontalAlignment.Left);
// Change legend header
var header = legend.getHeader();
header.setText("Header");
legend.setHeader(header);
// Set legend footer
legend.setFooter(new PP.Ui.LegendHeader({
    Text: "Footer",
    VerticalAlignment: PP.VerticalAlignment.Bottom
}));
// Hide data absence mark
legend.setNoDataVisible(false);
// Set overlaying of bubble chart main area size by legend
bubbleChart.getLegends()[1].setIsOverlap(true);
// Refresh bubble chart
bubbleChart.refresh();
// Display legend type
console.log("Legend type: " + legend.getType());
// Handle the HeaderClicked event
legend.HeaderClicked.add(function () {
    // Display message about legend header click
    console.log("The HeaderClicked event is initiated")
});

Click the interval legend header.

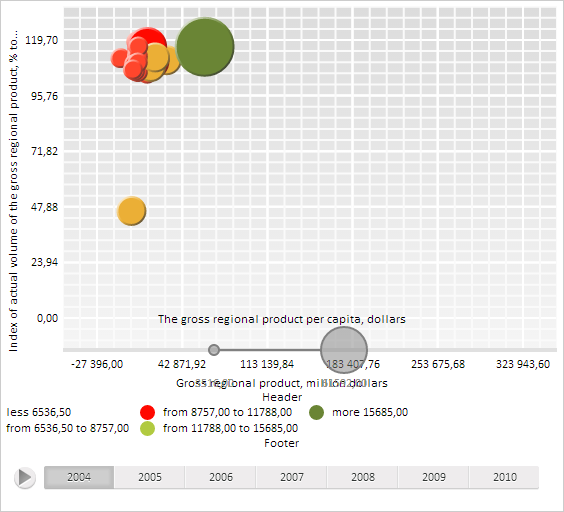

After executing the example interval legend contents alignment is changed, header and footer are set, data absence label is hidden, and legend overlaps the bubble chart main area:

Also the browser console displays legend type and a message concerning type of the processed event:

Legend type: Intervals

HeaderClicked event initialized

See also:

LegendBase
