To execute this example, create an HTML page and perform the following operations:
1. Add a link to CSS file named PP.css.
Also add links to the following JS files: PP.js, PP.GraphicsBase.js, PP.TreeMap.js, and TreeMapData.js.
The TreeMapData.js file determines the variable named "data" that contains settings required to create the PP.Ui.TreeMap component.
Contents of the TreeMapData.js file
var data = { "ImagePath": "../build/img/", "LeafBorderWidth": "5", "LeafPadding": "10", "LeavesSpacing": "3", "AreHeadersVisible": "true",
"BranchesOverflow": "Hidden", "LeavesOverflow": "Wrap", "VerticalContent": "true", "AnimationDuration": "5000", "HierarchyDepth": "5", "BranchSpacing": "4", "MaxFont": "14", "MinFont": "14", "LabelAutoColor": "true", "Style": { "Release": { "Background": { "PPType": "PP.SolidColorBrush", "Color": "#FFFFFFFF" } } }, "ItemsTooltipStyle": { "HoverMode": "MouseOver", "Padding": "2 2 2 2", "MaskText": "Name: {%Name} \n Text: {%TextValue} \n Size: {%SizeValue} \n Share: {%Fraction:#.##%}", "TailLength": "10", "Offset": "0", "Style": { "Release": { "Background": { "Color": "red", "Opacity": "0.3" }, "Border": { "Color": "red", "Width": "1", "Radius": "2" }, "Font": { "Size": "15" } } }, "@ShowHandCursor": "false", "@Direction": "LeftToRight", "@HorizontalAlignment": "Left", "@VerticalAlignment": "Top", "@Alignment": "Left", "@Text": "", "@TextWrapping": "NoWrap" }, "LabelsStyle": { "Style": { "Release": { "Font": { "IsItalic": "false", "FontFamily": "Arial", "Size": "11", "IsBold": "false", "Color": "#FF000000" } } }, }, "StartHeaderStyle": { "@Margin": "0.000000 0.000000 0.000000 0.000000", "@Padding": "0.000000 0.000000 0.000000 0.000000", "@MaskText": "", "@NoDataText": "", "@TextWrapping": "NoWrap", "@Alignment": "Center", "@Direction": "LeftToRight", "@ShowHandCursor": "FALSE", "Style": { "Release": { "Font": { "@FontFamily": "Tahoma", "@Color": "#000000", "@Size": "12", "@IsItalic": "FALSE", "@IsBold": "FALSE", "@IsUnderline": "FALSE" }, "Background": { "PPType": "PP.SolidColorBrush", "Color": "#e6e6fa" }, "Border": { "@Style": "solid", "@Color": "#ff9f9f9f", "@Width": "1", "@Radius": "0" } } } }, "EndHeaderStyle": { "@Margin": "0.000000 0.000000 0.000000 0.000000", "@Padding": "0.000000 0.000000 0.000000 0.000000", "@MaskText": "", "@NoDataText": "", "@TextWrapping": "NoWrap", "@Alignment": "Center", "@Direction": "LeftToRight", "@ShowHandCursor": "FALSE", "Style": { "Release": { "Font": { "@FontFamily": "Tahoma", "@Color": "#003153", "@Size": "12", "@IsItalic": "FALSE", "@IsBold": "FALSE", "@IsUnderline": "FALSE" }, "Background": { "PPType": "PP.SolidColorBrush", "Color": "#c7d0cc" }, "Border": { "@Style": "solid", "@Color": "#ffc1c1c1", "@Width": "1", "@Radius": "0" } } } }, "Model": { "RootItem": { "Id": "W", "Items": [{ "Id": "EU", "Items": [{ "Id": "EEU", "Items": [{ "Id": "RUS" }, { "Id": "UKR" }, { "Id": "POL" }, { "Id": "ROM" }] }, { "Id": "NEU" }, { "Id": "SEU" }, { "Id": "WEU" }] }] } }, "ItemsNames": { "W": "World", "EU": "Europe", "EEU": "Eastern Europe", "RUS": "Russia", "UKR": "Ukraine", "POL": "Poland", "ROM": "Romania", "NEU": "Northern Europe", "SEU": "Southern Europe", "WEU": "Western Europe" }, "TextVisual": { "TextMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Index": "0", "Type": "None" } }, "ColorVisual": { "ColorMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Type": "Scale", "Index": "0", "Scale": "Scale0" } }, "HeightVisual": { "NumericMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Index": "0", "Type": "None" } }, "SizeVisual": { "NumericMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Index": "0", "Type": "None" } }, "DataSources": { "DataSource0": { "Title": "BubbleTree Data", "AttributesNames": { "color": "Color Value", "radius": "Radius Value", "value": "Value" }, "Series": { "W": { "value": { "Items": "100 110.0 120.0 130.0 140.0" } }, "EU": { "value": { "Items": "100.0 10.0 20.0 10.0 140.0" } }, "EEU": { "value": { "Items": "100.0 10.0 20.0 10.0 140.0" } }, "RUS": { "value": { "Items": "100.0 10.0 20.0 10.0 140.0" } }, "UKR": { "value": { "Items": "33.0 10.0 81.0 27.0 45.0" } }, "POL": { "value": { "Items": "22.0 10.0 30.0 33.0 34.0" } }, "ROM": { "value": { "Items": "15.0 10.0 28.0 62.0 38.0" } }, "NEU": { "value": { "Items": "53.0 10.0 40.0 35.0 34.0" } }, "SEU": { "value": { "Items": "43.0 10.0 41.0 43.0 45.0" } }, "WEU": { "value": { "Items": "41.0 10.0 41.0 42.0 46.0" } } } } }, "Timeline": { "Visibility": "Visible", "HorizontalAlignment": "Justify", "VerticalAlignment": "Bottom", "StepDuration": "500", "DelayDuration": "500", "ReturnToInitialState": "True", "StepsNames": ["1990", "1991", "1992", "1993", "1994"] }, "Breadcrumb": { "Height": "24", "Margin": "0 0 0 0", "Padding": "1 1 0 1", "HorizontalAlignment": "Justify", "VerticalAlignment": "Top", "Style": { "Release": { "Background": { "Color": "#9C9C9C" } } }, "ItemStyle": { "Margin": "0 0 1 0", "Padding": "6 0 0 0", "HorizontalAlignment": "Left", "VerticalAlignment": "Middle", "Style": { "Hover": { "Background": { "Color": "#8F8F8F" } }, "Active": { "Background": { "Color": "#787878" } }, "Release": { "Background": { "Color": "#9C9C9C" }, "Font": { "IsItalic": "False", "FontFamily": "Arial", "Size": "12", "IsBold": "false", "Color": "#d8d8d8" }, "Border": { "Style": "solid", "Color": "#BABABA", "Width": "1" } } } } }, "Scales": { "Scale0": { "Id": "Scale0", "Values": "20.0 30.0 40.0 50.0", "Items": "#FFFF462C #FFEBAF36 #FFFFD900 #FFB1CA40 #FF6A8535", "EnableEquality": "false", "NoData": "#FFBFBFBF", "TypeArguments": "Brush" } }, "Legends": { "Legend0": { "Type": "Intervals", "Scale": "Scale0", "BetweenFormat": "from {0:0.00} to {1:0.00}", "GreaterFormat": "greater than {0:0.00}", "LessFormat": "less than {0:0.00}", "EqualFormat": "equal to {0:0.00}", "IncludeEquals": "false", "NoDataText": "no data", "NoDataPosition": "After", "NoDataVisible": "true", "DoHighlight": "false", "Marker": "Circle", "Mode": "LessGreater", "ColumnCount": "0", "TextSpacing": "10", "TextWrapping": "NoWrap", "IsOuter": "false", "IsOverlap": "false", "HorizontalAlignment": "Center", "VerticalAlignment": "Bottom", "Padding": "3 0 3 0", "Margin": "6 6 6 6", "Header": { "Text": "GDP (mln $)", "Margin": "2 2 2 2", "Padding": "2 2 2 2", "Style": { "Release": { "Font": { "IsItalic": "False", "FontFamily": "Arial", "Size": "12", "IsBold": "False", "Color": "#FF010000" } } } } } } }
2. Add a sprite named tl_imagelist.png at the URL build/Img.
3. In the <body> tag place a block with the ID "treeMap" that will store the created chart:
<div id="treeMap" style="border: #CCCCCC 1px solid; padding: 5px; margin: 5px; height: 480px; width: 640px;"> </div>
4. Next in the <body> tag add a script that creates a chart:
<script language="javascript"> // Variable, in which chart instance will be stored var treeMap; // Specify path to the root folder containing resources files PP.resourceManager.setRootResourcesFolder("../resources/"); // Determine language settings for resources PP.setCurrentCulture(PP.Cultures.ru) // Get DOM item of container, in which a tree is rendered var container = document.getElementById("treeMap"); // Create a new instance of tree map treeMap = new PP.Ui.TreeMap(data); // Place the tree map in the <div> block treeMap.addToNode(container); // Set chart size treeMap.setWidth(640); treeMap.setHeight(480); </script>

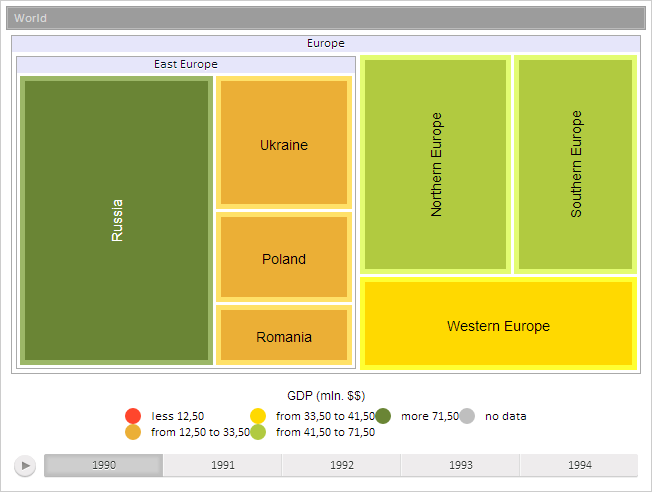

After the example execution the PP.Ui.TreeMap component is placed on the HTML page:
