To execute this example, create an HTML page and perform the following operations:
1. Add a link to CSS file named PP.css. Also add links to the following JS files: PP.js, PP.GraphicsBase.js, PP.BubbleTree.js, and BubbleTreeData.js.
The BubbleTreeData.js file determines the variable named "data" that stores settings required to create PP.Ui.BubbleTree component.
Contents of the BubbleTreeData.js file
var data = { "BubbleStyle": PP.Ui.VisualizerItemStyle.RadialGradient, "SideBubbleMinSize": 10, "LabelAutoColor": "false", "ImagePath": "build/img/", "Style": { "Release": { "Background": { "PPType": "PP.SolidColorBrush", "Color": "#FFFFFFFF" } } }, "InnerLabelsStyle": { "MaskText": "",
"TextWrapping": "NoWrap", "Alignment": "Top", "TailLength": "0", "Direction": "LeftToRight", "ShowHandCursor": "false", "Style": { "Release": { "Font": { "IsItalic": "False", "FontFamily": "Arial", "Size": "12", "IsBold": "true", "Color": "#FF000000" },
"Background": { "Color": "#FFFFFF", "Opacity": "0.0" } } } }, "OuterLabelsStyle": { "MaskText": "{%Name}",
"TextWrapping": "NoWrap", "Alignment": "Right", "TailLength": "10", "Direction": "LeftToRight", "ShowHandCursor": "false", "Padding": "5 5 5 5", "HoverMode": "Default", "Style": { "Release": { "Font": { "IsItalic": "False", "FontFamily": "Arial", "Size": "12", "IsBold": "true", "Color": "#FF000000" },
"Border": { "Color": "#c1c1c1", "Width": "1", "Radius": "4" }, "Background": { "Color": "#FFFFFF", "Opacity": "0.5" } } } }, "OrbitsPen": {
"Color": "#80808080", "Style": "Solid", "Width": "2" }, "Model": { "RootItem": { "Id": "W", "Items": [{ "Id": "EU", "Items": [{ "Id": "EEU", "Items": [{ "Id": "RUS" }, { "Id": "UKR"
}, { "Id": "POL" }, { "Id": "ROM" } ] }, { "Id": "NEU" }, { "Id": "SEU" }, { "Id": "WEU" } ] }
] } }, "ItemsNames": { "W": "World", "EU": "Europe", "EEU": "Eastern Europe", "RUS": "Russia", "UKR": "Ukraine", "POL": "Poland", "ROM": "Romania", "NEU": "Northern Europe", "SEU": "Southern Europe", "WEU": "Western Europe" }, "TextVisual": {
"TextMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Index": "0", "Type": "None" } }, "ColorVisual": { "ColorMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Type": "Scale", "Index": "0", "Scale": "Scale0" }
}, "SizeVisual": { "NumericMapping": { "DataSource": "DataSource0", "DimAttributeId": "value", "Index": "0", "Type": "None" } }, "DataSources": { "DataSource0": { "Title": "BubbleTree Data", "AttributesNames": {
"color": "Color Value", "radius": "Radius Value", "value": "Value" }, "Series": { "W": { "value": { "Items": "100 110.0 120.0 130.0 140.0" } }, "EU": { "value": { "Items": "" } },
"EEU": { "value": { "Items": "" } }, "RUS": { "value": { "Items": "100.0 10.0 20.0 10.0 140.0" } }, "UKR": { "value": { "Items": "33.0 10.0 81.0 27.0 45.0" } },
"POL": { "value": { "Items": "22.0 10.0 30.0 33.0 34.0" } }, "ROM": { "value": { "Items": "15.0 10.0 28.0 62.0 38.0" } }, "NEU": { "value": { "Items": "53.0 10.0 40.0 35.0 34.0" } },
"SEU": { "value": { "Items": "43.0 10.0 41.0 43.0 45.0" } }, "WEU": { "value": { "Items": "41.0 10.0 41.0 42.0 46.0" } } } } },
"Timeline": { "Visibility": "Visible", "HorizontalAlignment": "Justify", "VerticalAlignment": "Bottom", "StepDuration": "500", "DelayDuration": "500", "ReturnToInitialState": "True", "StepsNames": ["1990", "1991", "1992", "1993", "1994"] }, "Breadcrumb": { "Height": "24", "Margin": "0 0 0 0",
"Padding": "1 1 0 1", "HorizontalAlignment": "Justify", "VerticalAlignment": "Top", "Style": { "Release": { "Background": { "Color": "#9C9C9C" } } }, "ItemStyle": { "Margin": "0 0 1 0", "Padding": "6 0 0 0",
"HorizontalAlignment": "Left", "VerticalAlignment": "Middle", "Style": { "Hover": { "Background": { "Color": "#8F8F8F" } }, "Active": { "Background": { "Color": "#787878" } }, "Release": {
"Background": { "Color": "#9C9C9C" }, "Font": { "IsItalic": "False", "FontFamily": "Arial", "Size": "12", "IsBold": "false", "Color": "#d8d8d8" }, "Border": { "Style": "solid", "Color": "#BABABA", "Width": "1" } } }
} }, "Scales": { "Scale0": { "Id": "Scale0", "Values": "20.0 30.0 40.0 50.0", "Items": "#FFFF462C #FFEBAF36 #FFFFD900 #FFB1CA40 #FF6A8535", "EnableEquality": "false", "NoData": "#FFBFBFBF", "TypeArguments": "Brush" } }, "Legends": { "Legend0": { "Type": "Intervals", "Scale": "Scale0",
"BetweenFormat": "from {0:0.00} to {1:0.00}", "GreaterFormat": "greater {0:0.00}", "LessFormat": "less {0:0.00}", "EqualFormat": "equal {0:0.00}", "IncludeEquals": "false", "NoDataText": "no data", "NoDataPosition": "After", "NoDataVisible": "true", "DoHighlight": "false", "Marker": "Circle", "Mode": "LessGreater", "ColumnCount": "0", "TextSpacing": "10", "TextWrapping": "NoWrap", "IsOuter": "false", "IsOverlap": "false", "HorizontalAlignment": "Center", "VerticalAlignment": "Bottom", "Padding": "3 0 3 0",
"Margin": "6 6 6 6", "Header": { "Text": "GDP (mln $$)", "Margin": "2 2 2 2", "Padding": "2 2 2 2", "Style": { "Release": { "Font": { "IsItalic": "False",
"FontFamily": "Arial", "Size": "12", "IsBold": "False", "Color": "#FF010000" } } } } } } }
2. In the <body> tag place a block with the treeMap ID that will store the creates bubble tree:
<div id="bubbleTree" style="border: #CCCCCC 1px solid; padding: 5px; margin: 5px; height: 480px; width: 640px;"> </div>
3. Next in the <body> tag add a scenario that creates a chart:
<script language = "javascript" > // Variable that will store chart instance var bubbleTree; // Specify path to root folder that contains resource files PP.resourceManager.setRootResourcesFolder("resources/"); // Set resources culture PP.setCurrentCulture(PP.Cultures.ru) // Get container DOM element where the bubble tree should be drawn var container = document.getElementById("bubbleTree"); // Create a new instance of chart bubbleTree = new PP.Ui.BubbleTree(data); // Position the chart in <div> bubbleTree.addToNode(container); // Set chart size bubbleTree.setWidth(640); bubbleTree.setHeight(480); </script>

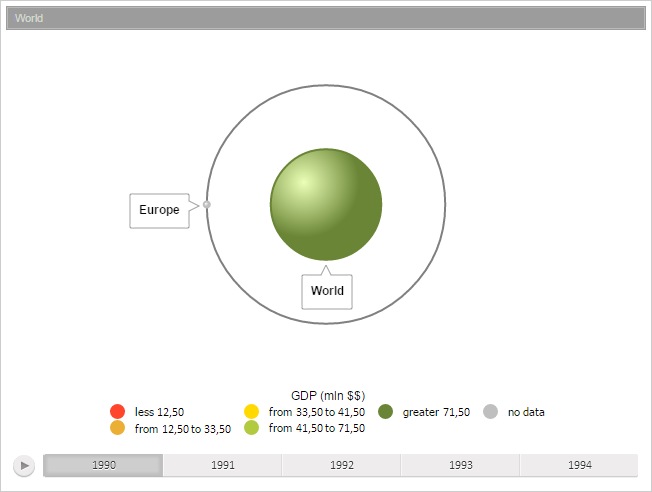

After the example execution the PP.Ui.BubbleTree component is placed on the HTML page:
