To execute the example, create an HTML page and execute the following operations:
1. Add links to the following JS and CSS filed in the <head> tag:
PP.js.
PP.GraphicsBase.js.
PP.BubbleChart.js.
resources.ru.js.
PP.css.
2. Then add a scenario creating a bubble chart in the <head> tag:
<script type="text/javascript">
var bubbleChart; // Variable that will be used to store bubble chart instance // Creates a bubble chart data source function CreateDataSource() { // Create an object containing data series for the 'DimX', 'DimY', 'DimR' and 'DimCol' attributes var data = { "Series": { "Serie0_Point0": { "DimX": { "Items": ["1000.000000", "2100.000000", "4000.000000", "8000.000000", "16000.000000", "32000.000000", "NULL"] }, "DimY": { "Items": ["46.100000", "46.300000", "45.800000", "45.900000", "45.800000", "40.000000", "41.100000"] }, "DimR": { "Items": ["7273.000000", "9372.000000", "11630.000000", "15496.000000", "20495.000000", "19832.000000", "7273.000000"] },
"DimCol": { "Items": ["7273.000000", "9372.000000", "11630.000000", "15496.000000", "20495.000000", "19832.000000", "7273.000000"] } }, "Serie1_Point0": { "DimX": { "Items": ["16889.700000", "-12848.000000", "16044.000000", "-16535.400000", "27365.000000", "-27396.000000", "NULL"] }, "DimY": { "Items": ["108.500000", "104.000000", "106.700000", "109.000000", "106.600000", "90.700000", "105.800000"] },
"DimR": { "Items": ["4951.000000", "6460.000000", "8101.000000", "10574.000000", "13898.000000", "13933.000000", "NULL"] }, "DimCol": { "Items": ["4951.000000", "6460.000000", "8101.000000", "10574.000000", "13898.000000", "13933.000000", "NULL"] } }, "Serie2_Point0": {
"DimX": { "Items": ["-8123.000000", "10207.000000", "-12414.000000", "15381.000000", "-20094.000000", "20104.000000", "NULL"] }, "DimY": { "Items": ["111.900000", "105.300000", "106.200000", "103.400000", "105.100000", "90.100000", "102.900000"] }, "DimR": { "Items": ["4700.000000", "5966.000000", "7328.000000", "9159.000000", "12061.000000", "12145.000000", "NULL"] }, "DimCol": { "Items": ["4700.000000", "5966.000000", "7328.000000", "9159.000000", "12061.000000", "12145.000000", "NULL"] } },
"Serie3_Point0": { "DimX": { "Items": ["4994.000000", "6553.000000", "7687.000000", "10072.000000", "12784.000000", "12225.000000", "NULL"] }, "DimY": { "Items": ["119.000000", "103.700000", "103.500000", "112.100000", "106.100000", "86.000000", "98.900000"] }, "DimR": { "Items": ["4771.000000", "6285.000000", "7397.000000", "9711.000000", "12340.000000", "11796.000000", "NULL"] }, "DimCol": { "Items": ["4771.000000", "6285.000000", "7397.000000", "9711.000000", "12340.000000", "11796.000000", "NULL"] } },
"Serie4_Point0": { "DimX": { "Items": ["30040.000000", "6666.000000", "52347.000000", "71173.000000", "104687.000000", "93331.000000", "NULL"] }, "DimY": { "Items": ["111.000000", "107.300000", "108.000000", "105.300000", "97.300000", "83.500000", "106.600000"] }, "DimR": { "Items": ["8609.000000", "11909.000000", "15239.000000", "20868.000000", "30918.000000", "27737.000000", "NULL"] }, "DimCol": { "Items": ["8609.000000", "11909.000000", "15239.000000", "20868.000000", "30918.000000", "27737.000000", "NULL"] } },
"Serie5_Point0": { "DimX": { "Items": ["15890.400000", "58044.000000", "72361.000000", "92093.000000", "117646.000000", "274647.800000", "NULL"] }, "DimY": { "Items": ["110.800000", "97.100000", "108.300000", "104.600000", "97.100000", "81.600000", "111.800000"] }, "DimR": { "Items": ["9713.000000", "12490.000000", "15725.000000", "20197.000000", "26028.000000", "23137.000000", "NULL"] }, "DimCol": { "Items": ["9713.000000", "12490.000000", "15725.000000", "20197.000000", "26028.000000", "23137.000000", "NULL"] } },
"Serie6_Point0": { "DimX": { "Items": ["5947.000000", "7430.000000", "8784.000000", "11127.000000", "15008.000000", "14731.000000", "NULL"] }, "DimY": { "Items": ["115.600000", "101.100000", "103.600000", "105.100000", "104.200000", "88.900000", "111.000000"] }, "DimR": { "Items": ["4397.000000", "5554.000000", "6636.000000", "8485.000000", "11545.000000", "11419.000000", "NULL"] }, "DimCol": { "Items": ["4397.000000", "5554.000000", "6636.000000", "8485.000000", "11545.000000", "11419.000000", "NULL"] } },
"Serie7_Point0": { "DimX": { "Items": ["5297.000000", "6700.000000", "8185.000000", "10508.000000", "13208.000000", "12542.000000", "NULL"] }, "DimY": { "Items": ["106.400000", "98.500000", "106.600000", "108.200000", "103.900000", "82.100000", "108.200000"] }, "DimR": { "Items": ["4238.000000", "5373.000000", "6576.000000", "8452.000000", "10626.000000", "10081.000000", "NULL"] }, "DimCol": { "Items": ["4238.000000", "5373.000000", "6576.000000", "8452.000000", "10626.000000", "10081.000000", "NULL"] } },
"Serie8_Point0": { "DimX": { "Items": ["15255.000000", "19968.000000", "24787.000000", "1111.000000", "11.000000", "37446.000000", "NULL"] }, "DimY": { "Items": ["115.600000", "104.600000", "106.100000", "108.500000", "101.300000", "78.900000", "103.600000"] }, "DimR": { "Items": ["8093.000000", "10683.000000", "13369.000000", "18022.000000", "23232.000000", "20614.000000", "NULL"] }, "DimCol": { "Items": ["8093.000000", "10683.000000", "13369.000000", "18022.000000", "23232.000000", "20614.000000", "NULL"] } },
"Serie9_Point0": { "DimX": { "Items": ["7311.000000", "9622.000000", "11316.000000", "13916.000000", "17883.000000", "17241.000000", "NULL"] }, "DimY": { "Items": ["107.600000", "105.900000", "102.500000", "100.800000", "97.500000", "89.300000", "98.300000"] }, "DimR": { "Items": ["5238.000000", "6916.000000", "8157.000000", "10055.000000", "12940.000000", "12485.000000", "NULL"] }, "DimCol": { "Items": ["5238.000000", "6916.000000", "8157.000000", "10055.000000", "12940.000000", "12485.000000", "NULL"] } },
"Serie10_Point0": { "DimX": { "Items": ["11883.000000", "15362.000000", "19188.000000", "26221.000000", "35687.000000", "190140.900000", "NULL"] }, "DimY": { "Items": ["109.800000", "107.300000", "108.800000", "105.900000", "104.400000", "89.200000", "105.500000"] }, "DimR": { "Items": ["6652.000000", "8673.000000", "10918.000000", "15033.000000", "20593.000000", "21769.000000", "NULL"] }, "DimCol": { "Items": ["6652.000000", "8673.000000", "10918.000000", "15033.000000", "20593.000000", "21769.000000", "NULL"] } },
"Serie11_Point0": { "DimX": { "Items": ["5594.000000", "6877.000000", "8187.000000", "9989.000000", "13961.000000", "13389.000000", "NULL"] }, "DimY": { "Items": ["118.900000", "102.400000", "105.100000", "97.900000", "113.700000", "85.800000", "105.000000"] }, "DimR": { "Items": ["5122.000000", "6394.000000", "7723.000000", "9546.000000", "13515.000000", "13096.000000", "NULL"] }, "DimCol": { "Items": ["5122.000000", "6394.000000", "7723.000000", "9546.000000", "13515.000000", "13096.000000", "NULL"] } },
"Serie12_Point0": { "DimX": { "Items": ["14672.000000", "19716.000000", "24159.000000", "32280.000000", "42985.000000", "38451.000000", "NULL"] }, "DimY": { "Items": ["108.200000", "100.300000", "104.300000", "105.200000", "98.900000", "86.700000", "104.200000"] }, "DimR": { "Items": ["5973.000000", "8131.000000", "10085.000000", "13628.000000", "18338.000000", "16562.000000", "NULL"] }, "DimCol": { "Items": ["5973.000000", "8131.000000", "10085.000000", "13628.000000", "18338.000000", "16562.000000", "NULL"] } },
"Serie13_Point0": { "DimX": { "Items": ["13992.000000", "17192.000000", "21486.000000", "27987.000000", "35534.000000", "35955.000000", "NULL"] }, "DimY": { "Items": ["105.200000", "98.100000", "108.300000", "105.800000", "100.700000", "88.300000", "101.700000"] }, "DimR": { "Items": ["5396.000000", "6657.000000", "8351.000000", "10915.000000", "13902.000000", "14093.000000", "NULL"] }, "DimCol": { "Items": ["5396.000000", "6657.000000", "8351.000000", "10915.000000", "13902.000000", "14093.000000", "NULL"] } },
"Serie14_Point0": { "DimX": { "Items": ["7934.000000", "9553.000000", "11876.000000", "14767.000000", "19410.000000", "20336.000000", "NULL"] }, "DimY": { "Items": ["118.100000", "100.100000", "107.100000", "99.500000", "106.900000", "92.500000", "102.100000"] }, "DimR": { "Items": ["6424.000000", "7801.000000", "9769.000000", "12227.000000", "16175.000000", "17050.000000", "NULL"] }, "DimCol": { "Items": ["6424.000000", "7801.000000", "9769.000000", "12227.000000", "16175.000000", "17050.000000", "NULL"] } },
"Serie15_Point0": { "DimX": { "Items": ["17029.000000", "126760.600000", "24898.000000", "33116.000000", "46994.000000", "302816.900000", "NULL"] }, "DimY": { "Items": ["108.100000", "99.600000", "103.500000", "106.300000", "111.900000", "86.800000", "102.800000"] }, "DimR": { "Items": ["7028.000000", "8619.000000", "10379.000000", "13827.000000", "19638.000000", "20341.000000", "NULL"] }, "DimCol": { "Items": ["7028.000000", "8619.000000", "10379.000000", "13827.000000", "19638.000000", "20341.000000", "NULL"] } },
"Serie16_Point0": { "DimX": { "Items": ["13983.000000", "18099.000000", "22179.000000", "28355.000000", "34118.000000", "33629.000000", "NULL"] }, "DimY": { "Items": ["116.700000", "99.200000", "108.200000", "105.800000", "94.900000", "86.800000", "110.400000"] }, "DimR": { "Items": ["8841.000000", "11574.000000", "14330.000000", "18500.000000", "22476.000000", "22337.000000", "NULL"] }, "DimCol": { "Items": ["8841.000000", "11574.000000", "14330.000000", "18500.000000", "22476.000000", "22337.000000", "NULL"] } },
"Serie17_Point0": { "DimX": { "Items": ["5599.000000", "7263.000000", "8924.000000", "11180.000000", "14074.000000", "13469.000000", "NULL"] }, "DimY": { "Items": ["113.100000", "102.100000", "106.900000", "104.500000", "99.500000", "86.500000", "106.100000"] }, "DimR": { "Items": ["4817.000000", "6269.000000", "7724.000000", "9695.000000", "12217.000000", "11699.000000", "NULL"] }, "DimCol": { "Items": ["4817.000000", "6269.000000", "7724.000000", "9695.000000", "12217.000000", "11699.000000", "NULL"] } },
"Serie18_Point0": { "DimX": { "Items": ["6275.000000", "8025.000000", "9566.000000", "12341.000000", "16210.000000", "16060.000000", "NULL"] }, "DimY": { "Items": ["105.900000", "104.400000", "103.400000", "103.400000", "103.600000", "88.700000", "97.900000"] }, "DimR": { "Items": ["5009.000000", "6497.000000", "7848.000000", "10249.000000", "13622.000000", "13631.000000", "NULL"] }, "DimCol": { "Items": ["5009.000000", "6497.000000", "7848.000000", "10249.000000", "13622.000000", "13631.000000", "NULL"] } },
"Serie19_Point0": { "DimX": { "Items": ["3948.000000", "5137.000000", "6452.000000", "8276.000000", "10618.000000", "11173.000000", "NULL"] }, "DimY": { "Items": ["106.400000", "102.500000", "110.300000", "108.300000", "105.100000", "94.500000", "97.900000"] }, "DimR": { "Items": ["3516.000000", "4603.000000", "5819.000000", "7510.000000", "9688.000000", "10240.000000", "NULL"] }, "DimCol": { "Items": ["3516.000000", "4603.000000", "5819.000000", "7510.000000", "9688.000000", "10240.000000", "NULL"] } },
"Serie20_Point0": { "DimX": { "Items": ["20524.000000", "323943.600000", "32023.000000", "43868.000000", "59389.000000", "246478.900000", "NULL"] }, "DimY": { "Items": ["112.200000", "104.800000", "107.500000", "107.200000", "102.100000", "86.300000", "99.900000"] }, "DimR": { "Items": ["7182.000000", "9025.000000", "11353.000000", "15645.000000", "21294.000000", "21228.000000", "NULL"] }, "DimCol": { "Items": ["7182.000000", "9025.000000", "11353.000000", "15645.000000", "21294.000000", "21228.000000", "NULL"] } },
"Serie21_Point0": { "DimX": { "Items": ["5200.000000", "6469.000000", "7565.000000", "9034.000000", "13174.000000", "13436.000000", "NULL"] }, "DimY": { "Items": ["111.200000", "99.200000", "104.000000", "100.400000", "109.800000", "93.000000", "101.600000"] }, "DimR": { "Items": ["4546.000000", "5713.000000", "6744.000000", "8122.000000", "11944.000000", "12256.000000", "NULL"] }, "DimCol": { "Items": ["4546.000000", "5713.000000", "6744.000000", "8122.000000", "11944.000000", "12256.000000", "NULL"] } },
"Serie22_Point0": { "DimX": { "Items": ["6344.000000", "7958.000000", "9603.000000", "12339.000000", "16061.000000", "15758.000000", "NULL"] }, "DimY": { "Items": ["112.700000", "103.900000", "104.200000", "104.000000", "99.900000", "90.600000", "99.800000"] }, "DimR": { "Items": ["4549.000000", "5764.000000", "7023.000000", "9100.000000", "11932.000000", "11780.000000", "NULL"] }, "DimCol": { "Items": ["4549.000000", "5764.000000", "7023.000000", "9100.000000", "11932.000000", "11780.000000", "NULL"] } },
"Serie23_Point0": { "DimX": { "Items": ["6623.000000", "9014.000000", "10957.000000", "13656.000000", "19101.000000", "18707.000000", "NULL"] }, "DimY": { "Items": ["116.900000", "107.000000", "105.600000", "106.500000", "114.900000", "85.500000", "107.400000"] }, "DimR": { "Items": ["4853.000000", "6681.000000", "8209.000000", "10331.000000", "14581.000000", "14393.000000", "NULL"] }, "DimCol": { "Items": ["4853.000000", "6681.000000", "8209.000000", "10331.000000", "14581.000000", "14393.000000", "NULL"] } },
"Serie24_Point0": { "DimX": { "Items": ["3277.000000", "4234.000000", "5126.000000", "6672.000000", "8833.000000", "8484.000000", "NULL"] }, "DimY": { "Items": ["109.300000", "101.500000", "105.500000", "108.300000", "105.400000", "88.600000", "99.400000"] }, "DimR": { "Items": ["3589.000000", "4654.000000", "5650.000000", "7369.000000", "9771.000000", "9383.000000", "NULL"] }, "DimCol": { "Items": ["3589.000000", "4654.000000", "5650.000000", "7369.000000", "9771.000000", "9383.000000", "NULL"] } },
"Serie25_Point0": { "DimX": { "Items": ["6181.000000", "7627.000000", "8950.000000", "11532.000000", "14918.000000", "14636.000000", "NULL"] }, "DimY": { "Items": ["110.000000", "100.100000", "103.400000", "106.500000", "102.300000", "89.600000", "98.800000"] }, "DimR": { "Items": ["5163.000000", "6474.000000", "7714.000000", "10081.000000", "13213.000000", "13121.000000", "NULL"] }, "DimCol": { "Items": ["5163.000000", "6474.000000", "7714.000000", "10081.000000", "13213.000000", "13121.000000", "NULL"] } },
"Serie26_Point0": { "DimX": { "Items": ["61357.000000", "288732.400000", "95267.000000", "16535.400000", "321088.500000", "176870.700000", "NULL"] }, "DimY": { "Items": ["116.800000", "105.800000", "110.700000", "119.700000", "104.400000", "81.700000", "101.300000"] }, "DimR": { "Items": ["23130.000000", "28780.000000", "35210.000000", "49795.000000", "61592.000000", "61088.000000", "NULL"] }, "DimCol": { "Items": ["23130.000000", "28780.000000", "35210.000000", "49795.000000", "61592.000000", "61088.000000", "NULL"] } },
"Serie27_Point0": { "DimX": { "Items": ["2213.000000", "2823.000000", "3822.000000", "4916.000000", "6305.000000", "6452.000000", "NULL"] }, "DimY": { "Items": ["107.000000", "100.900000", "116.300000", "106.600000", "106.900000", "89.600000", "109.300000"] }, "DimR": { "Items": ["5847.000000", "7452.000000", "10079.000000", "12961.000000", "16592.000000", "16966.000000", "NULL"] },
"DimCol": { "Items": ["5847.000000", "7452.000000", "10079.000000", "12961.000000", "16592.000000", "16966.000000", "NULL"] } } } } // Create and returns data source var dataSource = new PP.DataSource(data); return dataSource; }
// Create a dictionary with bubble chart settings function generateBubbles(bubblesCount, dataSource, visuals) { // Set property values in settings dictionary var baseSettings = { "Version": "2", "ShowBubbleHistory": "true", "ChartArea": { "Axes": { "X": { "Type": "X" }, "Y": { "Type": "Y" } } },
"Legends": { 0: { "Scale": "colorScale", "Type": "Intervals" }, 1: { "Scale": "rScale", "Type": "Size" } }, "AreaSelectionAction": "ItemsSelection", "UseSelectOnRightClick": true };
// Set properties values for time scale in settings dictionary baseSettings.Timeline = { "StepsNames": ["2004", "2005", "2006", "2007", "2008", "2009", "2010"], "StepDuration": "1000", "DelayDuration": "500", "ReturnToInitialState": "true", "Margin": "0,8,10,8", "ChartTimeline": undefined }; // Set properties values for the X axis dimension if (visuals.X) { baseSettings.XVisual = {
"CoordinateMapping": { "DimAttributeId": "DimX", "Type": "Transformer", "DataTransformer": { "PPType": "PP.NormalizationTransformer" }, "DataSource": "ds0",
"AutoSetup": "true" } } } // Set property values for dimension by the X axis if (visuals.Y) { baseSettings.YVisual = {
"CoordinateMapping": { "DimAttributeId": "DimY", "Type": "Transformer", "DataTransformer": { "PPType": "PP.NormalizationTransformer" }, "DataSource": "ds0",
"AutoSetup": "true" } } } // Set property values for dimension by bubble size if (visuals.R) { baseSettings.Scales = baseSettings.Scales || {}; baseSettings.Scales['rScale'] = { "Mode": "Uniform", "IntervalsCount": "5", "First": "10", "Last": "30", "NoData": "12", "TypeArguments": "Double" };
baseSettings.RVisual = { "NumericMapping": { "DimAttributeId": "DimR", "Type": "Scale", "Scale": "rScale", "DataSource": "ds0",
"AutoSetup": "true" } } } // Set properties values for dimension by bubble color if (visuals.Color) { baseSettings.Scales = baseSettings.Scales || {}; baseSettings.Scales['colorScale'] = { "Mode": "Uniform", "Items": "#FFFF462C #FFEBAF36 #FFFF0900 #FFB1CA40 #FF6A8535", "NoData": "#FFBFBFBF", "TypeArguments": "Brush" };
baseSettings.ColorVisual = { "ColorMapping": { "DimAttributeId": "DimCol", "Scale": "colorScale", "DataSource": "ds0", "Type": "Scale",
"AutoSetup": "true" } } } // Set data source identifier var ds0; baseSettings.DataSources = { 'ds0': ds0 = { 'Id': 'ds0' } }; // Set dimensions names
var attNames = ds0.AttributesNames = {}; if (visuals['X']) attNames['DimX'] = "Gross regional product, M. rubles"; if (visuals['Y']) attNames['DimY'] = "Index of the physical volume of gross regional product, % to previous period"; if (visuals['R']) attNames['DimR'] = "Gross regional product per capita, rubles"; if (visuals['Color']) attNames['DimCol'] = "Gross regional product per capita, rubles"; // Get data series from the source var series = ds0.Series = {}; for (var i = 0; i < bubblesCount; i++) { var serie = series['Bubble' + i] = dataSource.getSeries()["Serie" + i + "_Point0"]; } // Set data series settings var series = baseSettings.Series = []; var globalIds = baseSettings.GlobalItemsIds = {}; for (var i = 0; i < bubblesCount; i++) { series[i] = { 'Symbol': {}, 'Points': [{ 'Value': 'Bubble' + i, 'Id': 'Bubble' + i }] };
globalIds['Bubble' + i] = 'Item' + i; } // Return bubble chart settings object return baseSettings; };
// Creates a bubble chart function createChart() { // Specify path to the root folder that contains resources files PP.resourceManager.setRootResourcesFolder("../resources/"); // Determines language settings for resources PP.setCurrentCulture(PP.Cultures.ru) // Get DOM element of the container, where a bubble chart is rendered var container = document.getElementById("bubbleChart"); // Create a bubble chart object bubbleChart = new PP.Ui.BubbleChart({
// Add custom data
CustomData: "Bubble chart 1"
}); // Create data source var ds = CreateDataSource();
// Create dictionary with bubble chart settings var settings = generateBubbles(28, ds, { 'X': true, 'Y': true, 'R': true, 'Color': true }); // Determine bubble chart settings settings = PP.extend(settings, { HistoryMode: PP.Ui.NoDataHistoryMode.Continue, // Displaying mode of values history for selected bubble chart bubble ShowBubbleHistory: true, // Allow to display values history for specified series ShowHistoryMode: PP.HoverMode.MouseOver, // Values history displaying on cursor hovering over ShowBubblesWithNoData: true, // Allow to display bubble chart bubbles without data ImagePath: '../build/img/' // Path to the folder with icons for bubble chart }, true); // Set bubble chart settings
bubbleChart.setSettings(settings); // Place bubble chart in the <div> block bubbleChart.addToNode(container); // Set bubble chart sizes bubbleChart.setWidth(551); bubbleChart.setHeight(500); // Set time axis step bubbleChart.getTimeline().setCurrentStep(0); } </script>
3. In the <body> tagspecify name of the function, that creates a bubble chart, as value of the onLoad attribute. Within this tag place a block with the bubbleChart identifier that will store the created bubble chart:
<body class="PPNoSelect" onselectstart="return false;" onload="createChart()"> <div id="bubbleChart" style="float:left;border: #CCCCCC 1px solid; padding: 5px; margin: 5px;"></div> </body>
To execute custom scripts for bubble charts, including the examples given in the pages that contain descriptions of properties, methods and events of this component and its constituent parts, place the code after the script specified above or in the browser console.

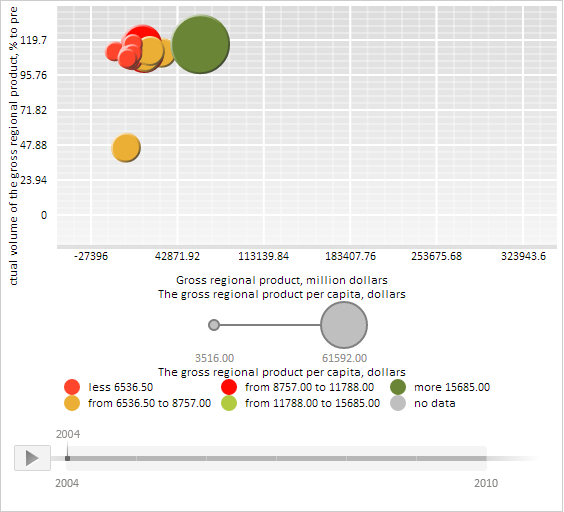

After the example execution the PP.Ui.BubbleChart component is placed on the HTML page:
