MapArrowBase.setBorderSettings

Syntax

setBorderSettings(width: Double, color: String, style: );

Parameters

width. Border thickness.

color. Border color.

style. Border rendering style.

Description

The setBorderSettings method define settings for arrow border on the map.

Example

To execute the example HTML page must contain the object of the PP.MapArrowBase type (see MapFilledArrow Constructor) named mapArrow. Set the width equal to two pixels, color corresponding to border color of a tooltip and dashed line for an arrow on the map:

function getBorderSettings(mapArrow, borderSettings) {
    // Create a metadata object of the map topobase
    var meta = new PP.MapTopobaseMeta();
    // Create an attribute for map topobase metadata
    var attribute = new PP.MapMetaAttribute({
        Name: "Border", // Attribute name
        Type: "PP.Border" // Attribute type
    });
    // Determine data for created attribute
    attribute.setAttributeData(new PP.MapMetaAttributeData({
        Id: mapArrow.getId(), // Data identifier
        Value: borderSettings
    }));
    // Add an attribute to metadata
    meta.setAttribute(attribute);
    return meta;
}
// Apply arrow settings on the map
function applyArrowSettings(mapArrow, meta) {
    if (meta) {
        var border = meta.getAttributeDataValue("Border", mapArrow.getId());
        // Apply new settings for arrow border
        mapArrow.setBorderSettings(border.Width, border.Color, border.Style);
        // Update the map
        map.refresh();
    }
}
// Show arrow aettings on the map
function printArrowSettings(mapArrow, meta) {
    if (meta) {
        var value1 = meta.getAttributeDataValue("Border", mapArrow.getId());
        console.log("Border thickness: %s", value1.Width);
        var value2 = meta.getAttributeData("Border", mapArrow.getId()).getValue();
        console.log("Border color: %s", value2.Color);
        var value3 = meta.getAttribute("Border").getAttributeDataValue(mapArrow.getId());
        console.log("Border style: %s", value3.Style);
    }
}
// Define border settings
var borderSettings = {
    Color: mapArrow.getToolTipColor(), // Border color
    Width: 4, // Border width
    Style: PP.BorderStyle.dashed // Border style
};
// Get settings of arrow border
var meta = getBorderSettings(mapArrow, borderSettings);
// Apply arrow settings
applyArrowSettings(mapArrow, meta);
// Show arrow settings on the map
printArrowSettings(mapArrow, meta);

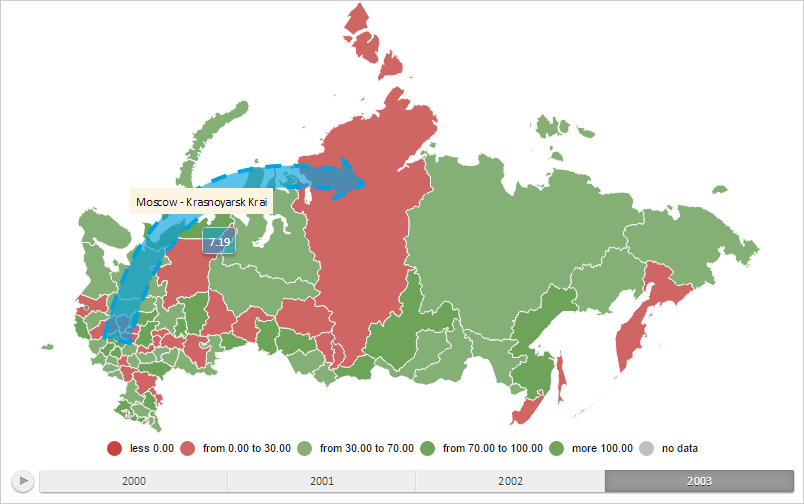

After executing the example the width equal to two pixels, color corresponding to border color of a tooltip and dashed line for an arrow on the map are set:

The browser console displays new settings for the arrow border on the map:

Border width: 4

Border color: #00A1DF

Border style: dashed

See also:

MapArrowBase
