Example of EaxPropertyBar and EaxMapBox Components Collocation

To execute the example, create an HTML page and execute the following operations:

1. Add links to the CSS files PP.css, PP.Express.css.

Also add links to the following JS files: PP.js, PP.GraphicsBase.js, PP.Metabase.js, PP.Express.js, Silverlight.js, and resources.ru.js.

2. Then in the <head>tag add a script that creates the properties panel and container for express report map:

    PP.ImagePath = "../build/img/"; // Path to images folder
    PP.ScriptPath = "../build/"; // Path to script folder
    PP.CSSPath = "../build/"; // Path to folder containing style files
    // Specify path to the root folder containing resources files
    PP.resourceManager.setRootResourcesFolder("../resources/");
    // Define regional settings
    PP.setCurrentCulture(PP.Cultures.ru);
    var eaxMdService, map;
    function Ready() {
        waiter = new PP.Ui.Waiter();
        // Create a connection to repository
        metabase = new PP.Mb.Metabase({
            PPServiceUrl: "PPService.axd?action=proxy",
            Id: "WAREHOUSE",
            UserCreds: {
                UserName: "user",
                Password: "password"
            },
            StartRequest: function () {
                // On metadata request show a PP.Ui.Waiter component
                waiter.show();
            },
            EndRequest: function () {
                // After metadata request hide the PP.Ui.Waiter component
                waiter.hide();
            },
            Error: function (sender, args) {
                // In case of an error show error description
                alert(args.ResponseText);
            }
        });
        // Open the repository connection
        metabase.open();
        // Create a service to work with express reports
        eaxMdService = new PP.Exp.EaxMdService({
            Metabase: metabase
        });
        // Open express report with the 4827 key in the edit mode
        var eaxMdService = new PP.Exp.EaxMdService({
            Metabase: metabase
        });
        eaxAnalyzer = eaxMdService.editDocument(4827);
        // Create a container for express report map
        map = new PP.Exp.Ui.EaxMapBox({
            ParentNode: "mapBox",
            Source: eaxAnalyzer, // Data source
            Service: eaxMdService,
            Width: 500,
            Height: 400
        });
        // Create express report properties panel
        eaxPropBar = new PP.Exp.Ui.EaxPropertyBar({
            ParentNode: "propertyBar",
            Source: eaxAnalyzer, // Data source
            Width: 300,
            Height: 400,
            Service: eaxMdService,
            DataView: map // Bind the properties panel to the map
        });
        // Show map setup wizard
        eaxPropBar.showMapMaster();
    };

3. In the <body> tag as value of the onLoad attribute specify name of the function that loads document, properties panel and a container that holds express report map. Within the tag place blocks to store this panel and the container:

<body onload="Ready()">
    <div id="propertyBar" style="float: left;"></div>
    <div id="mapBox" style="float: left; margin-left: 10px"></div>
</body>

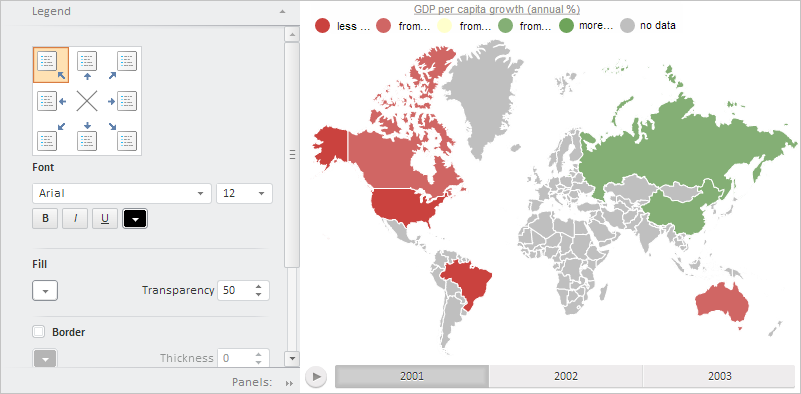

After executing the example the PP.Exp.Ui.EaxPropertyBar and PP.Exp.Ui.EaxMapBox components are placed in the HTML page:
