GridSelectionType: String
The GridSelectionType property contains type of object selected in the express report table.
Property value is set from JSON using the setGridSelectionType method and returned using the getGridSelectionType method.
Executing the example requires that the HTML page contains the ExpressBox component named expressBox (see Example of Creating the ExpressBox Component) and have a loaded table in working area of the express report. Set the selection type row, next select the fifth row in the table:
var eaxAnalyzer = expressBox.getSource(); // Function for selecting table rows and columns by index var selectRange = function (index) { var gridView = expressBox.getDataView().getGridView(); switch (eaxAnalyzer.getGridSelectionType()) { case "Row": // Select table row wit the specified index gridView.setSelection({ range: { height: 1, width: gridView.getTabSheet().getMeasures().getMaxColumn(), left: 1, top: index }, type: "Normal" }); break; case "Column": // Select table column with the specified index gridView.setSelection({ range: { height: gridView.getTabSheet().getMeasures().getMaxRow(), width: 1, left: index, top: 1 }, type: "Normal" }); break; } }; // Set type of selected express report table elements eaxAnalyzer.setGridSelectionType("Row"); // Select row with the 5 index this.selectRange(5);

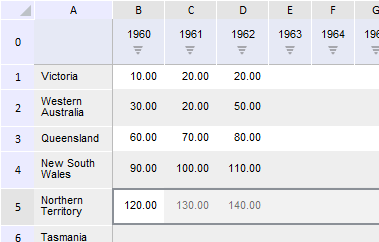

After executing the example the fifth row is selected in the express report table:
See also:
