Display the Dimensions areaRegular reports use data of one or several sources. A data source is shown as a multidimensional data array.
A dimension is a structural unit of a multidimensional data source. As dimensions, one can use dictionaries of repository.
The dictionary can be:
Hierarchical. Dictionary elements are arranged at different levels of hierarchy and are linked by "parent-child" relations.
Non-hierarchical. Dictionary elements are arranged at one level of hierarchy and are not linked by "parent-child" relations.

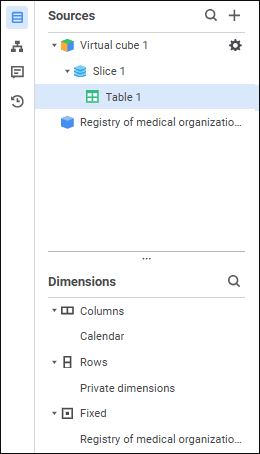

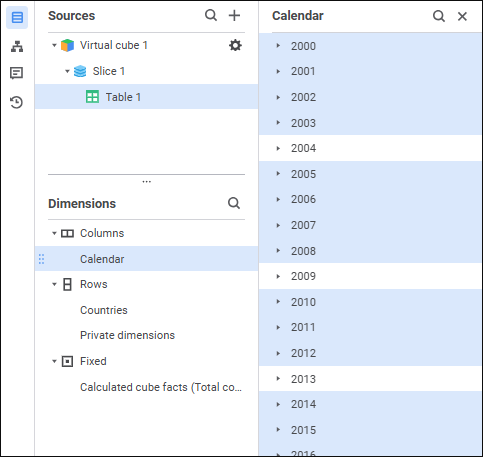

To work with data source dimensions, use the Dimensions area on the Sources side panel, selection panel, and selection control panel.
To display the selection control panel
To work with dimensions, see the Working with Dimensions section.
To work with dimension elements, see the Working with Dimension Elements section.
See also:
Visualizing Data on Report Sheet
Sources button on the control panel. The Sources panel opens.
Actions button.
Actions button on the selection control panel. Button color depends on the dimension location: if the dimension is in row, the button is blue, if the dimension is in column, the button is green.
Selection Control Panel button on the View
