Changing Map Structure

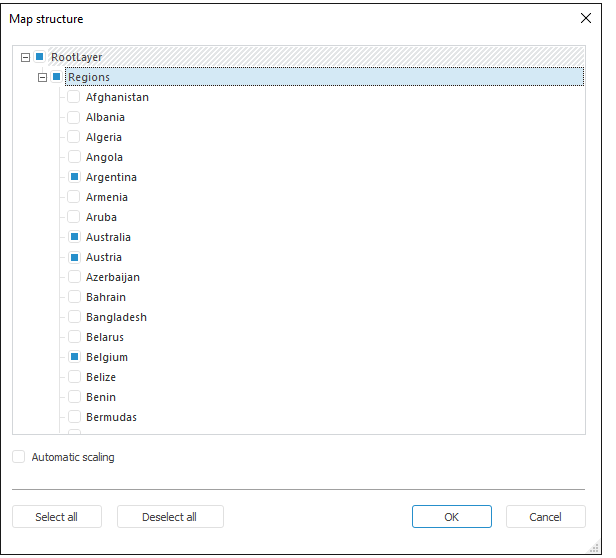

In the elements tree select checkboxes next to the elements that must be displayed on the map. All elements are selected by default.

To select all elements, click the Select All button. To deselect all elements, click the Deselect All button.

Scaling enables the user to resize the displayed map area saving the proportions.

To apply scaling, select the Automatic Scaling checkbox. After the checkbox is selected, topobase borders are automatically changed to show only selected map elements.
