Adding Unique Keys

To add a unique key:

• In the web application click the Add button. A new key will be added to the list of unique keys. Key name and identifier will be set by default. The default value of the Name property - ITEM<Number>. The default value of the Identifier property is UI<Number>.

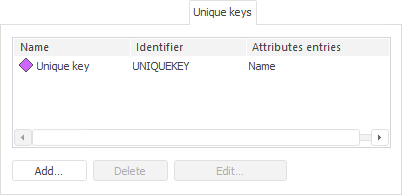

• In the desktop application:

• Click the Add button.

• Select the Add item in the context menu on the free area of the Unique Keys tab.

• Double-click the empty area of the Unique Keys tab.

The Unique Key Properties dialog box opens:

Set up unique key properties:

• Name. Enter the unique key name.

• Identifier. Enter the identifier of the unique key. Only Latin characters, numbers and underscores are allowed; spaces are not allowed.

• Attribute Entries. The list contains the checkboxes corresponding to dictionary attributes, including system attributes: Name and Order. Select one of several attributes that must be included into a unique key.

To edit properties of the selected unique key:

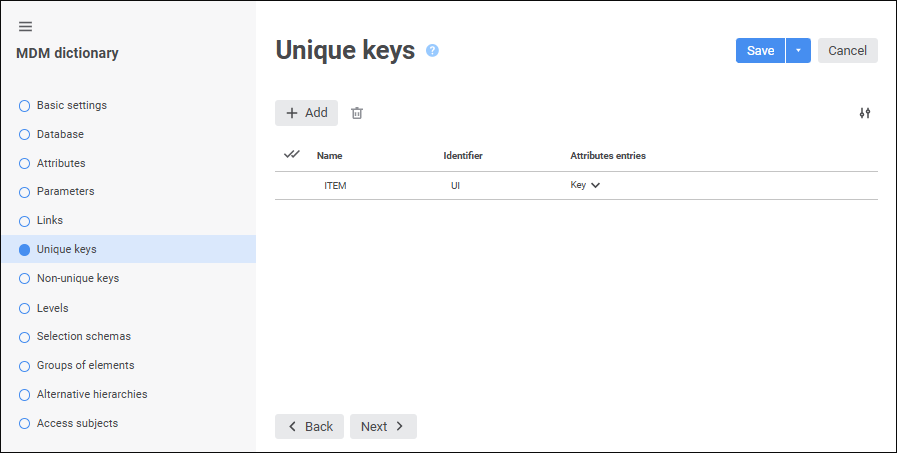

• In the web application change properties in corresponding columns of the required unique key on the Unique Keys page of the MDM dictionary wizard.

• In the desktop application:

• Click the Edit button.

• Select the Edit item in the unique key's context menu.

• Double-click the name of the unique key.

Make necessary changes in the Unique Key Properties dialog box.

To delete the selected unique key:

• In the web application click the Delete button.

• In the desktop application:

• Click the Delete button.

• Press CTRL+DELETE.

• Select the Delete item in the unique key's context menu.

A confirmation to execute the operation is requested.

To change the number of displayed properties in the web application, click the Settings button and select or deselect the checkbox next to property names.
