ToolBar

Inheritance Hierarchy

Description

The ToolBar component implements a standard toolbar containing buttons and drop-down lists.

Working with the Component

To edit the controls located on the toolbar list the component context menu items are used. Controls properties are set up in the object inspector. All buttons are of the same size but for the drop-down lists the width can be changed in the Width property. It is possible to set up common properties for a group of buttons or drop-down lists. To do this, hold down the CTRL key, select the necessary buttons (drop-down lists) and change necessary properties in the object inspector.

On working with the toolbar by the applied code a controls list can be created using the Controls property. This collection is formed from the ToolBarButton and ToolbarComboBox object class instances.

Shortcuts

One or several shortcuts can be assigned for toolbar buttons. To assign shortcuts in the form designer mode, it is necessary to select an action, select the ShortCut property in the object inspector and press the required shortcut. Additional shortcuts are set in the AdditionalShortCuts collection using the Fore language on form execution.

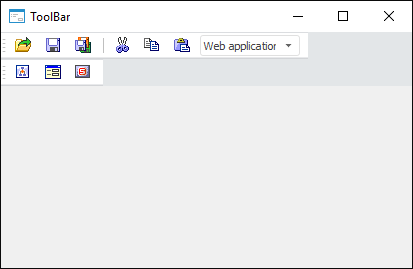

Example

Properties of the ToolBar Component

	Property name	Brief description
	Align	The Align property determines behavior of the component when its parent component is resized.
	AllowClose	The AllowClose property determines whether the toolbar can be closed, if the panel is not embedded into a form, but located independently in the form region.
	AllowDrag	The AllowDrag property determines whether an object can be dragged from the component.
	AllowDrop	The AllowDrop property determines whether the component can accept a dragged object.
	AllowUndock	The AllowUndock property determines whether it is possible to undock the toolbar during execution.
	Anchors	The Anchors property returns settings that determine the percentage of the size change for the current component when the parent component is resized.
	Brush	The Brush property determines the brush that is used to fill component area.
	ClientHeight	The ClientHeight property is used to receive or specify the height of the component’s client area.
	ClientWidth	The ClientWidth property is used to receive or specify the width of the component’s client area.
	Color	The Color property determines a component background color.
	ComponentCount	The ComponentCount property returns the number of child components.
	Components	The Components property returns the child component.
	Controls	The Controls property returns the collection of controls on the toolbar.
	Cursor	The Cursor property determines the look of the cursor over the component.
	Data	The Data property is used to store any custom data.
	Edge	The Edge property determines the position of a toolbar on a form.
	Enabled	The Enabled property determines whether the component is available for the user.
	ExclusiveRow	The ExclusiveRow property determines whether several components can be located in one row.
	Floating	The Floating property determines, whether a toolbar should be floating or embedded.
	Focused	The Focused property returns True if the focus is set on the component.
	Font	The Font property determines the set of characteristics describing the font that is used to display text.
	Height	The Height property determines component height.
	HelpContext	The HelpContext property determines a unique index for the context help section for this component.
	Hint	The Hint property determines a component tooltip text.
	Id	The Id property determines the toolbar unique identifier.
	Images	The Images property determines the ImageList component, which images are displayed on the panel buttons.
	Left	The Left property determines the coordinate of the left border of the component.
	MaxHintWidth	The MaxHintWidth property determines the maximum width of a hint.
	Name	The Name property determines a component name.
	Parent	The Parent property determines a parent component.
	ParentColor	The ParentColor property determines whether the component inherits the color of the parent component.
	ParentFont	The ParentFont property determines whether the component uses the font of the parent component.
	ParentShowHint	The ParentShowHint property determines whether a tooltip is displayed.
	PopupMenu	The PopupMenu property determines the context menu opened by clicking the component with the additional mouse button.
	Scrolls	The Scrolls property returns parameters of component's scrollbars.
	ShowCaptions	The ShowCaption property determines whether the captions of the user toolbar buttons should be displayed.
	ShowHint	The ShowHint property enables and disables showing a component tooltip.
	TabOrder	The TabOrder property determines the component position in the tab order.
	TabStop	The TabStop property determines whether the component is focused when the TAB key is pressed.
	Tag	The Tag property is not used by the compiler. The user can change the value of the Tag property and use it as he wishes.
	Text	The Text property determines the row identifying a component for the user.
	Top	The Top property determines the coordinate of the top border of the component.
	Visible	The Visible property determines visibility of the component during execution.
	Width	The Width property determines component width.

Methods of the ToolBar Component

	Method name	Brief description
	BeginUpdate	The BeginUpdate method prohibits rerendering of the ToolBar component.
	BringToFront	The BringToFront method brings a component to front.
	ClientToScreen	The ClientToScreen method converts the coordinates of a point specified relative to the component coordinate system into screen coordinates.
	Dock	The Dock method binds the ToolBar component to a form.
	DockLeftOf	The DockLeftOf method binds ToolBar to a form and places the component on the left of the object passed as an input parameter.
	DoDragDrop	The DoDragDrop method enables to start dragging operation.
	EndUpdate	The EndUpdate method disables the mode, when redrawing of the ToolBar component is prohibited.
	Float	The Float method places the ToolBar component on a form as a separate box.
	GetImage	The GetImage method returns the image of the component with all the child components.
	ScreenToClient	The ScreenToClient method converts screen coordinates of a point into coordinates specified relative to the component coordinate system.
	SendToBack	The SendToBack method sends a component to back.
	SetFocus	The SetFocus method sets focus to this component.

Events of the ToolBar Component

	Event name	Brief description
	OnBeginDrag	The OnBeginDrag event occurs for a component when the user starts to drag an object from the component.
	OnClick	The OnClick event occurs if the user clicks the component area.
	OnDblClick	The OnDblClick event occurs if the user double-clicks the component area.
	OnDragDrop	The OnDragDrop event occurs for the component if the user drops a dragged object over it.
	OnDragEnter	The OnDragEnter event occurs when a dragged object crosses the borders of this component.
	OnDragLeave	The OnDragLeave event occurs when a dragged object leaves the borders of this component.
	OnDragOver	The OnDragOver event occurs for the component when the user drags an object over it.
	OnEnter	The OnEnter event occurs when the component receives focus.
	OnExit	The OnExit event occurs when the component loses focus.
	OnHScroll	The OnHScroll event occurs when horizontal scrollbar slider changes its position.
	OnKeyDown	The OnKeyDown event occurs if the component is focused and a keyboard key is pressed.
	OnKeyPress	The OnKeyPress event occurs if the component is focused when the user presses a character key.
	OnKeyPreview	The OnKeyPreview event occurs prior to each event related to key pressing.
	OnKeyUp	The OnKeyUp event occurs if the component is focused and the user releases any button previously pressed.
	OnMouseDown	The OnMouseDown event occurs if the pointer is in component's area and a mouse key is pressed.
	OnMouseEnter	The OnMouseEnter event occurs when mouse cursor enters the component area.
	OnMouseHover	The OnMouseHover event occurs when mouse cursor is held in the component area.
	OnMouseLeave	The OnMouseLeave event occurs when mouse cursor leaves the component area.
	OnMouseMove	The OnMouseMove event occurs on moving the cursor over component.
	OnMouseUp	The OnMouseUp event occurs on releasing mouse button when the cursor is in component area.
	OnMouseWheel	The OnMouseWheel event occurs if the component is focused when the mouse wheel is rotated.
	OnVScroll	The OnVScroll event occurs when vertical scrollbar slider changes its position.
