The ImageBox component is used to load and display images.
To load an image, execute one of the following operations:
Double-click the component on a form in the form designer mode.
In the object inspector click the button of the Image property.
Select Edit context menu item for the component.

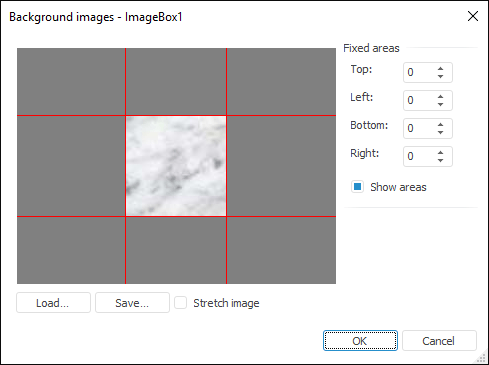

After this component image editor opens:
Clicking the Load button opens a standard dialog box for selecting a file to be displayed in the component. The list of available images includes files of the following formats: *.bmp;*.jpg;*.jpeg;*.jpe;*.jfif;*.gif;*.png;*.tif;*.tiff. If the selected image is larger than the editor's window, the image is automatically resized.

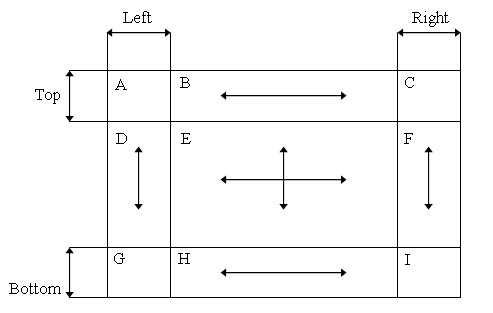

The Fix Area group can be used to set up image areas that are not zoomed when displayed. To do this, background image is divided into 9 parts:
When an image is drawn, the parts A, C, G, I are not zoomed. The B and the H parts can be zoomed only horizontally. The D and the F parts can be zoomed only vertically. The E part can be fully zoomed.
The Display Area checkbox controls displaying red lines separating fixed image area from zoomed areas. Fixed areas are displayed in the same way as in the source file. The rest of the image area is zoomed in accordance with sizes of the ImageBox component. The size of the fixed area is specified in pixels and depends on the sizes of the loaded image.
The Stretch Image checkbox enables the user to stretch loaded image to the whole area of the edit dialog box.
Use the Save button to save image loaded into the component.
The background image with margins can be set up via the kernel using the GxRectangleTransformImage special class. Parameters of fixed margins are set in the Margins property.
Property name | Brief description | |
Align | The Align property determines behavior of the component when its parent component is resized. | |
AllowDrag | The AllowDrag property determines whether an object can be dragged from the component. | |
AllowDrop | The AllowDrop property determines whether the component can accept a dragged object. | |
Anchors | The Anchors property returns settings that determine the percentage of the size change for the current component when the parent component is resized. | |
AutoSize | The AutoSize property determines whether the size of component window is automatically selected to fit the image size. | |
Brush | The Brush property determines the brush that is used to fill component area. | |
Center | The Center property determines the position of the image in the component window. | |
ClientHeight | The ClientHeight property is used to receive or specify the height of the component’s client area. | |
ClientWidth | The ClientWidth property is used to receive or specify the width of the component’s client area. | |
Color | The Color property determines a component background color. | |
ComponentCount | The ComponentCount property returns the number of child components. | |
Components | The Components property returns the child component. | |
Cursor | The Cursor property determines the look of the cursor over the component. | |
Data | The Data property is used to store any custom data. | |
Enabled | The Enabled property determines whether the component is available for the user. | |
Focused | The Focused property returns True if the focus is set on the component. | |
Font | The Font property determines the set of characteristics describing the font that is used to display text. | |
Height | The Height property determines component height. | |
HelpContext | The HelpContext property determines a unique index for the context help section for this component. | |
Hint | The Hint property determines a component tooltip text. | |
Image | The Image property determines the image displayed by the component. | |
Left | The Left property determines the coordinate of the left border of the component. | |
Name | The Name property determines a component name. | |
Parent | The Parent property determines a parent component. | |
ParentColor | The ParentColor property determines whether the component inherits the color of the parent component. | |
ParentFont | The ParentFont property determines whether the component uses the font of the parent component. | |
ParentShowHint | The ParentShowHint property determines whether a tooltip is displayed. | |
PopupMenu | The PopupMenu property determines the context menu opened by clicking the component with the additional mouse button. | |
Proportional | The Proportional property determines whether the image in the component window should retain proportions. | |
Scrolls | The Scrolls property returns parameters of component's scrollbars. | |
ShowHint | The ShowHint property enables and disables showing a component tooltip. | |
Stretch | The Stretch property determines whether the size of the image is automatically changed to fit the component size. | |
TabOrder | The TabOrder property determines the component position in the tab order. | |
TabStop | The TabStop property determines whether the component is focused when the TAB key is pressed. | |
Tag | The Tag property is not used by the compiler. The user can change the value of the Tag property and use it as he wishes. | |
Text | The Text property determines the row identifying a component for the user. | |
Top | The Top property determines the coordinate of the top border of the component. | |
Transparent | The Transparent property determines whether the image background is transparent. | |
TransparentColor | The TransparentColor property determines the color for the image transparency. | |
Visible | The Visible property determines visibility of the component during execution. | |
Width | The Width property determines component width. |
Method name | Brief description | |
BringToFront | The BringToFront method brings a component to front. | |
ClientToScreen | The ClientToScreen method converts the coordinates of a point specified relative to the component coordinate system into screen coordinates. | |
DoDragDrop | The DoDragDrop method enables to start dragging operation. | |
GetImage | The GetImage method returns the image of the component with all the child components. | |
LoadImageFromStream | The LoadImageFromStream method loads images from the stream. | |
ScreenToClient | The ScreenToClient method converts screen coordinates of a point into coordinates specified relative to the component coordinate system. | |
SendToBack | The SendToBack method sends a component to back. | |
SetFocus | The SetFocus method sets focus to this component. |
Event name | Brief description | |
OnBeginDrag | The OnBeginDrag event occurs for a component when the user starts to drag an object from the component. | |
OnClick | The OnClick event occurs if the user clicks the component area. | |
OnDblClick | The OnDblClick event occurs if the user double-clicks the component area. | |
OnDragDrop | The OnDragDrop event occurs for the component if the user drops a dragged object over it. | |
OnDragEnter | The OnDragEnter event occurs when a dragged object crosses the borders of this component. | |
OnDragLeave | The OnDragLeave event occurs when a dragged object leaves the borders of this component. | |
OnDragOver | The OnDragOver event occurs for the component when the user drags an object over it. | |
OnEnter | The OnEnter event occurs when the component receives focus. | |
OnExit | The OnExit event occurs when the component loses focus. | |
OnHScroll | The OnHScroll event occurs when horizontal scrollbar slider changes its position. | |
OnKeyDown | The OnKeyDown event occurs if the component is focused and a keyboard key is pressed. | |
OnKeyPress | The OnKeyPress event occurs if the component is focused when the user presses a character key. | |
OnKeyPreview | The OnKeyPreview event occurs prior to each event related to key pressing. | |
OnKeyUp | The OnKeyUp event occurs if the component is focused and the user releases any button previously pressed. | |
OnMouseDown | The OnMouseDown event occurs if the pointer is in component's area and a mouse key is pressed. | |
OnMouseEnter | The OnMouseEnter event occurs when mouse cursor enters the component area. | |
OnMouseHover | The OnMouseHover event occurs when mouse cursor is held in the component area. | |
OnMouseLeave | The OnMouseLeave event occurs when mouse cursor leaves the component area. | |
OnMouseMove | The OnMouseMove event occurs on moving the cursor over component. | |
OnMouseUp | The OnMouseUp event occurs on releasing mouse button when the cursor is in component area. | |
OnMouseWheel | The OnMouseWheel event occurs if the component is focused when the mouse wheel is rotated. | |
OnVScroll | The OnVScroll event occurs when vertical scrollbar slider changes its position. |
