Setting Up Title

To display the title of the selected object select the Block Title checkbox on the Block Title tab of the side panel.

The checkbox is deselected by default, and an object title is not displayed. Advanced parameters to set up title parameters are available on the side panel after the Block Title checkbox is selected.

Make sure that the side panel is displayed.
Select an object in the working area.
If a visualizer is selected, select the Block radio button on the side panel.
Go to the Block Title tab.

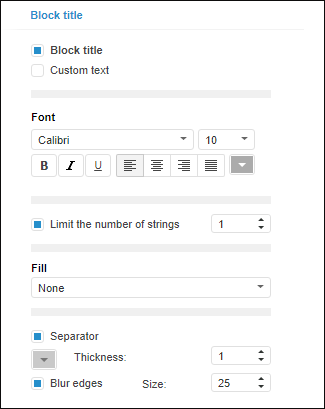

The title is displayed and the following parameters are available if the Block Title checkbox is selected:

By default, the object title matches the object name. To change the title, select the Custom Text checkbox. The box to edit the title text will be displayed.

To return the default title, deselect the Custom Text checkbox.

To set up title font formatting, use the Font group of parameters:

Font. Select one of the fonts available in the operating system.
Font size. Set the required font size. The size is set in points, and it can be selected in the drop-down list or entered manually. Available values range: [1; 72].
Font style. Click the buttons that determine font style:

B. Bold.
I. Italic.
U. Underline.

When the button is pressed, the corresponding font style is used. Several styles can be used simultaneously, for example, pressed buttons B and I result in bold italic font style.

Title text alignment. Set title alignment relative to the object:

Left. Default.
Center.
Right.
By width.

Font color. Select font color in the drop-down palette.

The number of strings in the title can be changed using the Limit the Number of Strings checkbox. The checkbox is selected by default, and the number of rows in the title is limited by the value specified in the appropriate box. If the entire text of a title does not fit to the number of rows, the ellipsis is displayed at the end of the last row. To view the full title text as a tooltip, point the mouse cursor on it.

To automatically limit the number of strings in the title depending on the text size, deselect the Limit the Number of Strings checkbox.

To select fill mode, use the Fill parameter. Available fill modes:

None. Background fill is not used. Default.
Solid Fill. Background is filled with one color. An additional parameter is available to specify fill color.
Gradient Fill. Background is filled using a two-color gradient. There are advanced parameters to specify the gradient angle and its start and end colors.

Separator is a line that separates an object title from its contents. To manage separator view, use the Separator checkbox. The checkbox is selected by default, and separator is displayed, its advanced parameters are also available:

Separator color.
Thickness. Separator line thickness.
Blur Edges. It determines whether to blur separator line edges. The checkbox is selected by default, and separator edges are blurred. The size of a blur area is set in the Size box.

To hide the separator, deselect the Separator checkbox.
