The tool supports interface of Foresight Analytics Platform 9 or earlier.
A label enables the user to locate various text data in a dashboard.
To insert a label, use:
The Label item in the drop-down menu of the Other button on the Home ribbon tab.
The Label button in the Other group on the Insert ribbon tab.
The Label item in the drop-down menu of the New Block item in the dashboard's context menu.

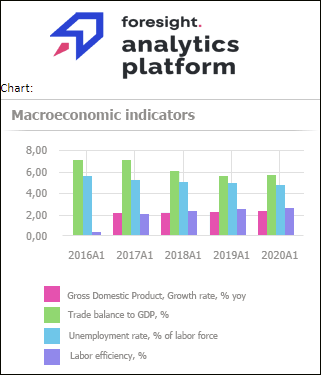

Example of the Image, Label and Visualizer blocks:
To set up block parameters, use the Block and Command side panel tabs.

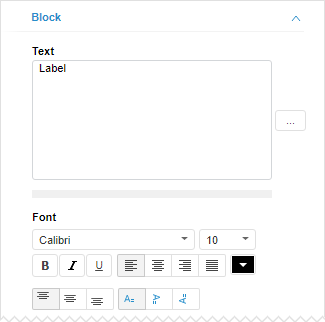

To set up label basic parameters, use the Block side panel tab:
Besides the parameters available for all dashboard objects, additional settings are also available for a label:
Text. Specify label text.
Font. Set up label text formatting parameters: font, alignment, style, color and orientation.
To manage the action executed on the label click, use the Command side panel tab.
The commands available for the Button control, are also available for the label.
If a command is set for the label, the label text is underlined and on pointing to the label the cursor turns to .
See also:
