Access Control Settings

Access control settings provides a possibility to set up permissions of the specific object and object type.

To set up object permissions in the Navigator section:

The web application displays the Properties side panel to set up access permissions.
In the desktop application execute one of the operations:

Select the Access Permissions item in the object's context menu.
Select the Object > Access Permissions main menu item.
Select the object and press the ENTER key.
Double-click the object name with the main mouse button.

After executing one of these operations the Access Control Settings dialog box opens.

To set up object type permissions in the Object Classes section:

The web application displays the Properties side panel to set up access permissions.
In the desktop application execute one of the operations:

Select the Access Permissions item in the object type context menu.
Select the Object Classes > Access Permissions main menu item
Double-click the object name with the main mouse button.

After executing one of these operations the Access Control Settings dialog box opens.

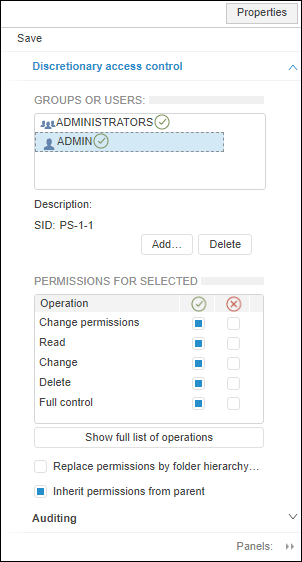

The Properties side panel in the web application and the Access Control Settings dialog box in the desktop application:

In the desktop application the dialog box title shows the name of the object/objects type, permissions for which are set up.

NOTE. Viewing object attributes is available only in web application on the Properties side panel. In the desktop application adding and editing object attributes is available only in object properties of navigator.
