TreeList

The TreeList component is used to display tree-like hierarchical structures, such as the object inheritance tree.

Component functionality

Comments

This component is implemented by the TreeList class. The nodes are implemented by the TreeNode class, while the TreeColumn class implements the columns. The collection of columns is implemented by the TreeColumns class, the collection of nodes is implemented by the TreeNodes class. TreeColumns and TreeNodes classes are inherited from the base class. List.

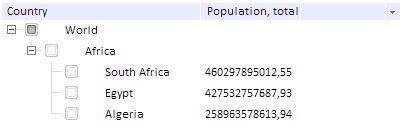

Example

Constructor

Properties

	Property name	Brief description
	ActiveColor	The ActiveColor property determines color of active tree node.
	ActiveFont	The ActiveFont property determines font parameters of active tree node.
	ActiveParentColor	The ActiveParentColor property determines selection color for parent nodes of the active tree element.
	AreaSelect	The AreaSelect property determines whether tree area can be selected with the mouse.
	CaptionVisible	The CaptionVisible property determines whether header row is displayed.
	CheckBoxes	The CheckBoxes property determines whether checkboxes are displayed for component nodes.
	ChildrenCount	The ChildrenCount property contains the number of nodes in the root branch.
	Columns	The Columns property sets collection of columns for the component.
	ContentColor	The ContentColor property determines background color for tree node contents.
	ContentFont	The ContentFont property determines font parameters of tree nodes.
	CutOverflow	The CutOverflow property determines whether to show an ellipsis instead of the text that overflows the box.
	DblClickExpand	The DblClickExpand property determines whether a tree node expands when the user double-clicks on it.
	DragAndDropDelay	The DragAndDropDelay property determines how long the user must hold mouse cursor over a node while holding down mouse button to activate the Drag&Drop mode.
	DragAndDropDetectDistance	The DragAndDropDetectDistance property determines the distance, after which the Drag&Drop mode is enabled.
	DragAndDropMode	The DragAndDropMode property sets the Drag&Drop mode.
	EmptySelection	The EmptySelection property determines whether all tree nodes can be deselected.
	EnableColumnsMenu	The EnableColumnsMenu property determines whether menu icon is visible in the tree header and the option to call a menu managing column visibility.
	EnableDragAndDrop	The EnableDragAndDrop property determines whether nodes can be moved using the Drag&Drop method.
	EnableEdit	The EnableEdit property determines whether values in table cells can be edited.
	EnableHighlight	The EnableHighlight property determines whether tree elements highlighting is available.
	EnableKeyNavigation	The EnableKeyNavigation property determines whether the user can navigate the list using the keyboard.
	EnableResizeColumn	The EnableResizeColumn property determines whether column width can be changed.
	EnableSearch	The EnableSearch property determines whether tree elements can be searched.
	EnableSelectedHighlight	The EnableSelectedHighlight property determines whether selected tree nodes can be highlighted.
	EnableSortColumns	The EnableSortColumns property determines whether column values can be sorted.
	FilterCaseSensitive	The FilterCaseSensitive property determines whether filtering is case-sensitive.
	FilterDeSelect	The FilterDeSelect property determines whether selection of nodes is reset on filtering.
	FirstShiftSelectClearing	The FirstShiftSelectClearing property sets the mode, at which each mouse click on the node with the held down SHIFT key deselects all nodes except for the pressed one.
	HighlightColor	The HighlightColor property sets a color of tree element highlighting.
	HighlightFont	The HighlightFont property sets font for a highlighted tree node.
	HoverColor	The HoverColor property determines a color of the tree node, to which the cursor is pointed.
	HoverFont	The HoverFont property determines font parameters of the tree node, to which the cursor is pointed.
	IgnoreRightPadding	The IgnoreRightPadding property determines whether the right padding is ignored.
	ImageList	The ImageList property sets the ImageList non-visual component.
	IsCSMultiSelect	The IsCSMultiSelect property determines whether it is possible to select multiple objects using the SHIFT and CTRL keys.
	KeepHasChild	The KeepHasChild property determines changing of displaying a hierarchical tree and changing the HasChild property for nodes when the Drag&Drop mode is active.
	LoadingTimeout	The LoadingTimeout property determines the time interval, in which the tree is loaded.
	MultiSelect	The MultiSelect property determines whether multiple elements can be selected.
	Nodes	The Nodes property sets a collection of nodes.
	RightButtonSelect	The RightButtonSelect property determines whether a node can be selected on clicking the right mouse button.
	RowSelect	The RowSelect property determines whether the row is highlighted when a row element is selected.
	SearchColor	The SearchColor property determines color of text to search.
	SearchFont	The SearchFont property determines font parameters of text to search.
	SelectedHighlightColor	The SelectedHighlightColor property determines a color for highlighting of the selected tree nodes.
	SelectedHighlightFont	The SelectedHighlightFont property determines font of a highlighted selected tree node.
	SelectEditorText	The SelectEditorText property determines whether edited text should be selected.
	ShowColumns	The ShowColumns property determines whether columns are displayed.
	ShowGridLines	The ShowGridLines property determines whether table gridlines are displayed.
	ShowLines	The ShowLines property determines whether lines that link a node and its children are displayed.
	ShowToolTips	The ShowToolTips property determines whether tooltips are displayed on hovering the cursor on a tree node.
	SortSequence	The SortSequence property sets sorting change order.
	UseCtrlSelect	The UseCtrlSelect property determines whether multiple nodes can be selected while holding down the CTRL key.
	UseShiftSelect	The UseShiftSelect property determines whether it is possible to select multiple neighbor nodes while holding down the SHIFT key.
	WordWrap	The WordWrap property determines whether node text is wrapped.

Methods

	Method name	Brief description
	beginUpdate	The beginUpdate method disables rerendering of tree until the endUpdate method is called.
	checkSelection	The checkSelection method deselects all tree nodes except for the last selected one.
	clearSelection	The clearSelection method deselects all tree nodes.
	collapseAll	The collapseAll method collapses all tree nodes.
	deleteNode	The deleteNode method deletes a hierarchical tree node.
	deSelectAll	The deSelectAll method deselects selected elements.
	deSelectLevel	The deSelectLevel method deselects elements of the specified level.
	endUpdate	The endUpdate method refreshes a tree and starts rerendering.
	expandAll	The expandAll method expands all tree nodes.
	expandToKeyNode	The expandToKeyNode method finds a node with the specified key in the tree and expands the tree at node's level.
	expandToNode	The expandToNode method expands all nodes down to the specified one.
	filter	The filter method filters nodes in a hierarchical tree.
	find	The find method searches for a tree element.
	findText	The findText method returns the tree node, which value fully matches the passed value.
	getAllCollapsedKeys	The getAllCollapsedKeys method returns the array of keys that belong to all collapsed tree nodes and nodes without children.
	getAllExpandedKeys	The getAllExpandedKeys method returns an array of keys that belong to all expanded tree nodes.
	getAllNodes	The getAllNodes method returns a one-dimensional array that contains all tree nodes and their current sorting order.
	getAllSelectedKeys	The getAllSelectedKeys method returns an array of keys that belong to all selected tree nodes.
	getCaptionHeight	The getCaptionHeight method returns height of column headers.
	getFirstVisibleIndex	The getFirstVisibleIndex method returns index of the first visible tree node.
	getFocusedNode	The getFocusedNode method returns focused node.
	getFullTreeHeight	The getFullTreeHeight method returns tree height.
	getHasSecondLevel	The getHasSecondLevel method determines whether a tree has child nodes.
	getHorizontalScroll	The getHorizontalScroll method returns horizontal scrollbar.
	getLastFound	The getLastFound method returns the last found node.
	getLastSearch	The getLastSearch method returns the last searched string.
	getMaximalWidthForColumn	The getMaximalWidthForColumn method returns maximum width of contents stored in visible rows of a column.
	getMaximalWidthForColumnFull	The getMaximalWidthForColumnFull method returns maximum width of contents stored in all rows of a column.
	getNodeByIndex	The getNodeByIndex method returns tree node by its index.
	getNodeByKey	The getNodeByKey method returns a first level node by its key.
	getNodeLevel	The getNodeLevel method determines the level that contains the specified node.
	getNodes	The getNodes method returns an object of the PP.Ui.TreeNodes class that contains hierarchical tree nodes.
	getOptimalWidthForColumn	The getOptimalWidthForColumn method returns optimum column width.
	getPixelHeight	The getPixelHeight method returns height value (in pixels) for a tree component.
	getPixelWidth	The getPixelWidth method returns width value (in pixels) for a tree component.
	getRootNode	The getRootNode method returns an object associated with the tree root.
	getSelectedNodes	The getSelectedNodes method returns selected nodes.
	getSelectedNodesCount	The getSelectedNodesCount method returns the number of selected tree nodes.
	getSort	The getSort method returns an object that contains sorting parameters.
	getSortColumn	The getSortColumn method returns number of the column, which data is sorted.
	getSortMethod	The getSortMethod method returns a sorting method.
	getSortProperty	The getSortProperty method returns name of the node property, by which sorting is executed.
	getSortRecursive	The getSortRecursive property determines whether data in child nodes is also sorted.
	getTopMargin	The getTopMargin method returns margin for the topmost node.
	getTopShift	The getTopShift method returns offset of the topmost node.
	getVerticalScroll	The getVerticalScroll method returns vertical scrollbar.
	getVisibleNodes	The getVisibleNodes method returns a one-dimensional array that contains currently visible tree nodes.
	getVisibleNodesCount	The getVisibleNodesCount method returns the number of currently displayed tree nodes.
	highlight	The highlight method highlights the specified text in tree node labels.
	isDraging	The IsDraging method determines whether dragging is enabled.
	isEditing	The IsEditing method determines whether editing is enabled.
	isSelecting	The IsSelecting method determines whether selecting is enabled.
	redraw	The redraw method fully rerenders hierarchical tree.
	removeFocus	The removeFocus method removes focus from a node.
	removeHover	The removeHover method disables effects of the node that appear on hovering the cursor on it.
	scrollToNode	The scrollToNode method scrolls the tree down to the specified node.
	selectAll	The selectAll method selects all tree nodes.
	selectLevel	The selectLevel method selects all nodes of the specified level.
	setExpandedByKeys	The setExpandedByKeys method expands nodes by their keys specified in the keys array.
	setExpandedForNode	The setExpandedForNode method expands or collapses the node depending on the passed value.
	setHoveredNode	The setHoveredNode method sets the node that is displayed as if hovered.
	setSelectedByKeys	The setSelectedByKeys method sets selection for all tree nodes with the specified keys.
	showSearch	The showSearch method opens the search field.
	sort	The sort method sorts tree elements by column.
	startEditing	The startEditing method activates edit mode for the selected node.
	update	The update method refreshes displayed tree.

Events

	Event name	Brief description
	BeforeCollapse	The BeforeCollapse event occurs before collapsing a tree node.
	BeforeExpand	The BeforeExpand event occurs before expanding a tree node.
	CheckBoxClick	The CheckBoxClick event occurs on clicking the checkbox.
	CheckedChanged	The CheckedChanged event occurs on selecting or deselecting the checkbox.
	Collapse	The Collapse event occurs on collapsing tree nodes.
	ColumnVisibilityChanged	The ColumnVisibilityChanged event occurs after changing visibility of a tree column.
	ColumnVisibilityChanging	The ColumnVisibilityChanging event occurs on changing visibility of a tree column.
	Expand	The Expand event occurs on expanding nodes.
	FilterChanged	The FilterChanged event occurs after filtering hierarchical tree nodes.
	Finding	The Find event occurs when element search is started.
	Found	The Found event occurs when a tree element is found.
	LoadSubNodesOf	The LoadSubNodesOf event occurs on loading the node to the tree.
	MouseDownNode	The MouseDownNode event occurs on clicking and holding the mouse down over component node.
	NodeClick	The NodeClick event occurs on clicking a list element.
	NodeDblClick	The NodeDblClick event occurs on double-click on a list element.
	NodeDrag	The NodeDrag event occurs during dragging of a node.
	NodeDragEnd	The NodeDragEnd event occurs when the user finishes dragging the node.
	NodeDragFinished	The NodeDragFinished event occurs after node is placed to a new position.
	NodeDragStart	The NodeDragStart event occurs when the user starts dragging a node (when the user presses and holds down the mouse button).
	NodeEditCanceled	The NodeEditCanceled event occurs when the user cancels editing.
	NodeEdited	The NodeEdited event occurs after editing a node name.
	NodeEditFinish	The NodeEditFinish event occurs after finishing editing of hierarchical tree node.
	NodeEditing	The NodeEditing event occurs in the process of editing a value in a table cell.
	NodeHovered	The NodeHovered event occurs on hovering over a node.
	NodeUnHovered	The NodeUnHovered event occurs after a tree node is unhovered with the mouse.
	SelectionChanged	The SelectionChanged event occurs after the element is selected.
	SelectionChanging	The SelectionChanging event occurs when an element is being selected.
	Sort	The Sort event occurs on sorting a collection of tree nodes.
	SortChanged	The SortChanged event occurs after finishing editing of hierarchical tree column sorting.
	SortChanging	The SortChanging event occurs on changing of hierarchical tree column sorting.
	ToolTipShowing	The ToolTipShowing event occurs when the cursor hovers on the hierarchical tree node.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

	Method name	Brief description
	clone	The clone method creates an object copy.
	dispose	The dispose method deletes the component.
	getHashCode	The getHashCode method returns hash code of repository object.
	getSettings	The getSettings method returns repository object settings.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.
	isEqual	The isEqual method determines whether the specified object is equal to the current repository object.
	isLive	The isLive method determines validity of repository object.
	removeAllEvents	The removeAllEvents method removes all object event handlers by the specified context.
	setSettings	The setSettings method determines repository object settings.
	defineProps	The defineProps method creates get and set methods from name array for the specified class.
	keys	The keys method returns array of methods and properties names for the specified object.
