GridBox

Description

The GridBox component represented by the regular report table.

The component is included to the DataArea component.

Component main events:

• Hyperlink click.

• Editing values in the table cells.

• Drawing the table.

• Editing selected range.

Use the GridView.setIsEditable method to enable or disable the value editing in the table cells.

The TabSheet component is the basic component for the GridBox component. To change settings of the TabSheet component, use the ProxyControl.getControl property.

Comments

The component is implemented by the GridBox class.

Example

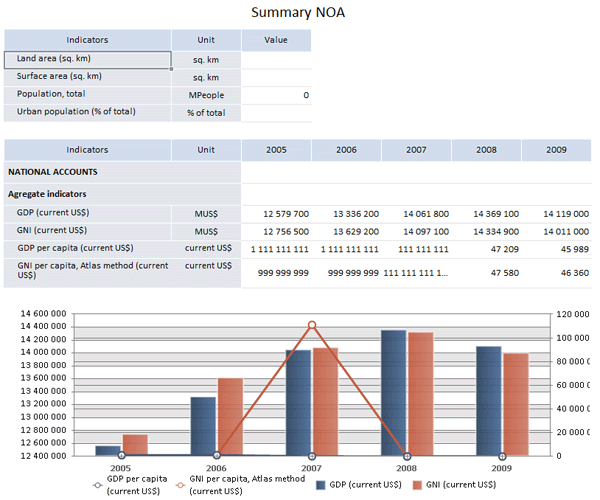

The GridBox component can have the following view:

Example of the GridBox Component Layout

Constructor

	Constructor name	Brief description
	GridBox	The GridBox constructor creates an instance of the GridBox class.

Properties inherited from the PP.Prx.Ui.GridView class

	Property name	Brief description
	AutoSendSelection	The AutoSendSelection property determines whether to send to the server state of cells selection in regular report table.
	AutoUpdateObjects	The AutoUpdateObjects property determines whether visual objects are automatically updated when selection changes.
	ObjectsAsImage	The ObjectAsImages property determines whether a map or a chart located on the regular report sheet is an image or an instance of the HighCharts or MapChart components.
	Selection	The Selection property determines a range of selected table cells.
	Source	The Source property determines a source report.
	TableSource	The TableSource property determines a report table data source.

Methods inherited from the PP.Prx.Ui.GridView class

	Method name	Brief description
	emulateHyperlinkClick	The emulateHyperlinkClick method emulates the hyperlink click.
	getChangedCells	The getChangedCells method returns cells with changed data.
	refresh	The refresh method refreshes contents of the regular report table.
	refreshAll	The refreshAll method refreshes contents of the regular report table.
	setIsEditable	The setIsEditable method determines whether data in the table cells is editable.

Events inherited from the PP.Prx.Ui.GridView class

	Event name	Brief description
	Edited	The Edited event occurs after editing table cell data.
	SelectionChanged	The SelectionChanged event occurs when the selected range changes.

Properties inherited from PP.Mb.Ui.GridView

	Property name	Brief description
	EditMode	The EditMode property determines whether a table can be edited.
	Selection	The Selection property determines the current selection in a table.
	IsAsync	The IsAsync property determines whether table data asynchronous loading is used.
	Service	The Service property determines a service that is used to work with an express report.
	SyncLoadClipboardData	The SyncLoadClipboardData property determines whether data should be uploaded synchronously if there are unloaded cells on copying.
	TableSource	The TableSource property determines a table data source.

Methods inherited from PP.Mb.Ui.GridView

	Method name	Brief description
	clearSelection	The clearSelection method clears selection in a table.
	getChangedData	The getChangedData method returns changed data.
	getFocusedCell	The getFocusedCell method returns coordinates of focused table cell.
	getInstance	The getInstance method returns a table instance.
	getRowsCount	The getRowsCount method returns the number of rows in an express report table.
	getSelectionType	The getSelectionType method returns type of the current selection in a table.
	getTabSheet	The getTabSheet method returns data table.
	setScroll	The setScroll method determines visibility of horizontal and vertical scrollbars in a table.
	undo	The undo method cancels all changes in a table.

Events inherited from PP.Mb.Ui.GridView

	Event name	Brief description
	Edited	The Edited event occurs after table data is edited.
	ExpanderAction	The ExpanderAction event occurs on expanding an expander in a table.
	HyperlinkMouseDown	The HyperlinkMouseDown event occurs on clicking a hyperlink in a table.
	PictureMouseDown	The PictureMouseDown event occurs on clicking the image inside the table cell.
	Rendered	The Rendered event occurs after the table is rendered for the first time.
	SelectionChanged	The SelectionChanged event occurs after changing selection in a table.
	SelectionChanging	The SelectionChanging event occurs on changing selection in a table.
	StructureChanged	The StructureChanged event occurs after changing table structure.

Methods inherited from the class SourceView

	Method name	Brief description
	getSource	The getSource method returns the current document of the express report.
	getSrv	The getSrv method returns the service that is used to work with express report.
	loadFile	The loadFile method loads a file with the specified name.
	loadFiles	The loadFiles method loads a script and style files based on table internal parameters.
	refresh	The refresh method refreshes specified elements of express report table.
	refreshAll	The refreshAll method refreshes all elements of express report table.

Events inherited from the class SourceView

	Event name	Brief description
	MetadataChanged	The MetadataChanged event occurs on changing express report settings.
	PropertyChanged	The PropertyChanged event occurs after changing property value.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

Events inherited from the class Control

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

Properties inherited from the class Object

	Property name	Brief description
	Id	The Id property determines a repository object identifier.

Methods inherited from the class Object

	Method name	Brief description
	clone	The clone method creates an object copy.
	dispose	The dispose method deletes the component.
	getHashCode	The getHashCode method returns hash code of repository object.
	getSettings	The getSettings method returns repository object settings.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.
	isEqual	The isEqual method determines whether the specified object is equal to the current repository object.
	isLive	The isLive method determines validity of repository object.
	removeAllEvents	The removeAllEvents method removes all object event handlers by the specified context.
	setSettings	The setSettings method determines repository object settings.
	defineProps	The defineProps method creates get and set methods from name array for the specified class.
	keys	The keys method returns array of methods and properties names for the specified object.

See also:

DHTML Components
