Adding Parameters

To add a parameter:

• Click the Add button.

• Select the Add item in the context menu on the free area of the Parameters tab.

• Double-click the free area of the Parameters tab with the main mouse button.

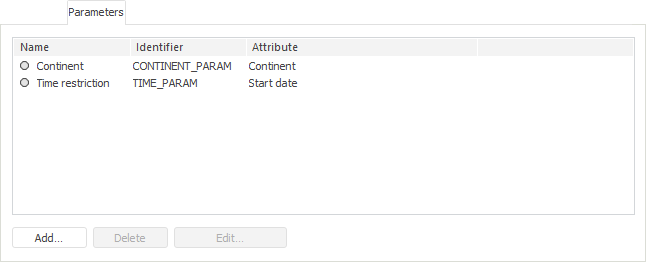

The Parameter Properties dialog box opens:

Set up parameter properties:

• Name. Enter parameter name.

• Identifier. Enter unique parameter identifier. Only English letters, numbers and underscores are allowed; spaces are not allowed.

• Attribute. Select one of the dictionary attributes in the drop-down list. The list includes standard and imported attributes.

To edit properties of the selected parameter:

• Click the Edit button.

• Select the Edit item in the parameter's context menu.

• Double-click the parameter name with the main mouse button.

Enter the required modifications in the Parameter Features dialog box that opens.

To delete the selected parameter:

• Click the Delete button.

• Press CTRL + DELETE.

• Select the Delete item in the parameter's context menu.

A confirmation to execute the operation is requested.
