Selecting by dimensions allows for limiting a list of dimension elements, based on which table area will be built.
To select dimension elements:

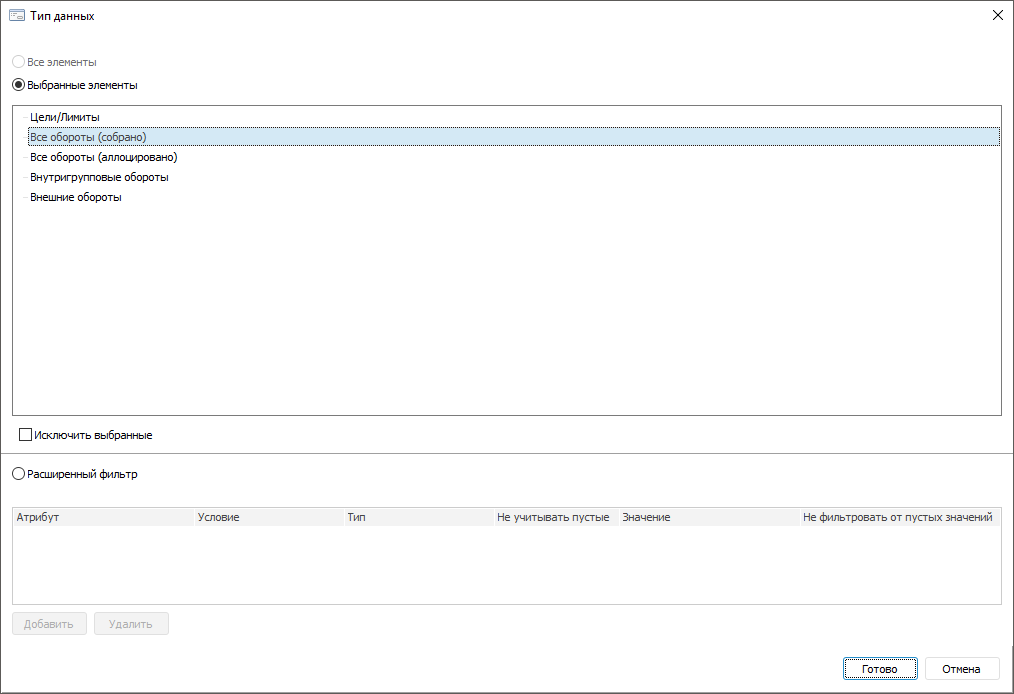

In the dialog box that opens select one of the filter options:
All Elements. All elements will be selected. It is not available for fixed dimensions with disabled aggregation.
Selected Elements. Select only required elements or exclude selected elements from selection by selecting the Exclude Selected checkbox. Only one element can be selected for fixed dimensions with disabled aggregation, and the Exclude Selected checkbox is disabled.
Advanced Filter. Add rules to the advanced filter by clicking the Add button. Set:
Attribute. Select a dimension attribute in the drop-down list.
Condition. Set filtering condition. Available options: equal not equal, more, less, more or equal, less or equal, included, not included.
Type. Select filter type. Available options: value, parameter.
Ignore Empty. Empty values will be ignored if the checkbox is selected. It is available only for the Parameter type.
Value. It depends on the selected attribute and type:
If the Value type is selected, the specific value corresponding to the attribute type.
If the Parameter type is selected, for the field the attribute is selected from the drop-down list representing a tree of available parameters with attributes
If attribute is linked and the Value type is selected, the box has a drop-down menu with the dictionary available values.
Do Not Filter from Empty Values. Attribute empty values will be filtered if the checkbox is selected.
NOTE. If alternative hierarchy and parameter advanced filter are set for the dimension, then advanced filter will be applied to alternative dictionary.
Click the Delete button to delete the advanced filter.
Finish selection by clicking the Finish button.
