Connecting Extensions to Web Application

url="http://<server>/DBA_App_v9.2/#/<extension>"

The following can be set as extension:

• agreement. Business process management.

• dataentryform. Interactive data entry forms.

• elt. Calculation algorithms.

url="/DBA_App_v9.2/#/dataentryform"

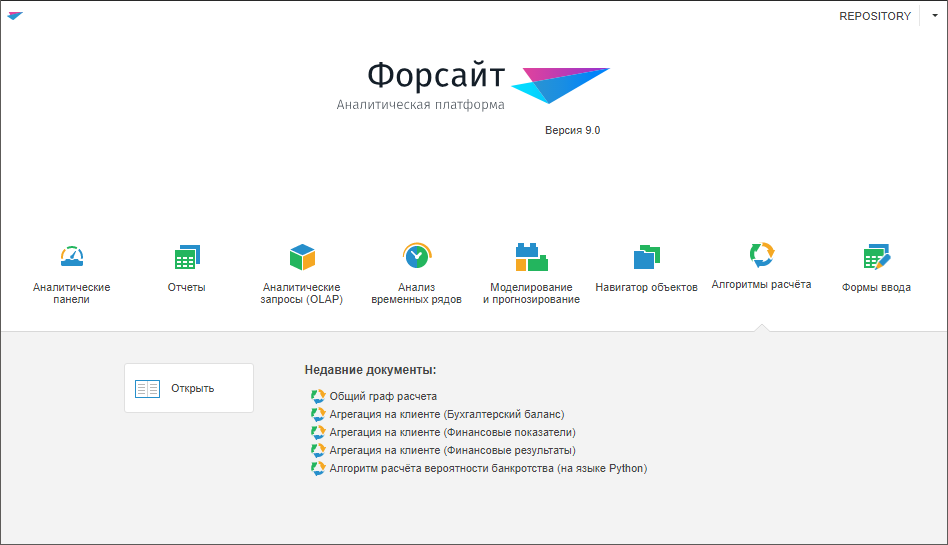

Indicates whether the extension is displayed in the welcome screen, and extension objects are available in the web application object navigator. Available values:

• 0. The extension is not displayed in the welcome screen, extension objects are not available in the object navigator.

• 1. The extension is displayed in the welcome screen, extension objects are available in the object navigator.

• 2. The extension is not displayed in the welcome screen, extension objects are available in the object navigator.

Extension type. Available values:

• 2168577. Business process management.

• 2103041. Interactive data entry forms

• 268033. Calculation Algorithms.

classId="[<class>]"

For example:

classId="[268033]"

Identifier of the module, which implements the CopyCustomObject custom method for redetermining a standard method for copying extension objects. When a standard method is used, the object is copied without dependent objects. The use of a custom method allows for correct copying of extension objects with dependent objects.

To use a custom method, set the eventHandler attribute and the useCopyHandler attribute.

Specify the eventHandler attribute as follows:

eventHandler="<module_identifier>"

For example:

eventHandler="UNIT_WEB_METHODS"

Separate units are used for each object type:

• Specify the UNIT_WEB_METHODS unit for data entry forms.

• Specify the P10002_M_CALC_SERVICE unit for calculation algorithms.

• For custom objects specify identifier of the unit, in which the CopyCustomObject method was implemented.

NOTE. To view identifier of the selected module in the desktop application, open the Object Properties dialog box.

To redetermine a standard method for copying extension in the module, implement the CopyCustomObject custom method. The developed CopyCustomObject custom method in the specified module should contain the following signature:

Public Function CopyCustomObject(SourceKey, DestFolderKey: Integer; Name: String=""; Id: String=""): Integer;

Parameters of the CopyCustomObject method:

• SourceKey. Key of copied object.

• DestFolderKey. Key of the folder, to which the object will be copied.

• Name. New object name.

• Id. New object identifier.

Indicates whether extension object should be copied using the custom method implemented in the module specified in the eventHandler attribute. When a standard method is used, the object is copied without dependent objects. The use of a custom method allows for correct copying of extension objects with dependent objects.

Available attribute values:

• true. To copy the extension object, use the CopyCustomObject custom method.

• false. To copy the extension object, use standard copy method.

Operations available for the extension in the web application welcome screen. Available operations:

• 0. Open an object.

• 1. Create a new object.

NOTE. Parameter is unavailable. Reserved for future use.

• 2. Data import.

actions="[0]"

<moduleUrlSettings sign="?"/>

The section with icon settings for extension. It contains the following subsections:

• <welcomeScreenIcon>. Icon settings in the welcome screen. The icon size is 32x32 pixels.

• <addressBarIcon>. Icon settings in address field. The icon size is 16x16 pixels.

• <documentsIcon>. The icon settings for extension documents in the list of recent documents in the welcome screen. The icon size is 16x16 pixels.

Those sections contain the same set of attributes:

• imageListId. Identifier of sprite with images.

• rowIndex. Index of string in sprite containing an icon.

• columnIndex. Index of column in sprite containing an icon.

Indexing of images in sprites contains from zero.

For icons of 32x32 pixels, the system sprite with the modules32 identifier is used. The sprite contains one string, determine the following columnIndex for extensions:

• 8. Calculation algorithms.

• 9. Business process management.

• 10. Interactive Data Entry Forms.

For icons of 16x16 pixels, the system sprite with the modules16 identifier is used. The sprite contains one string, determine the following columnIndex for extensions:

• 8. Calculation algorithms

• 12. Business process management

• 13. Interactive Data Entry Forms.

If you want to use your icons from your sprite, then after the <Modules> section add the <imageLists> section containing subsections with sprite settings.
