Global Event Handlers

Report Calculation Handler Handler of Update Events Error Handling

The event handler sends express report parameters used for calculation and enables the user to perform the action determined by the code on each event occurrence.

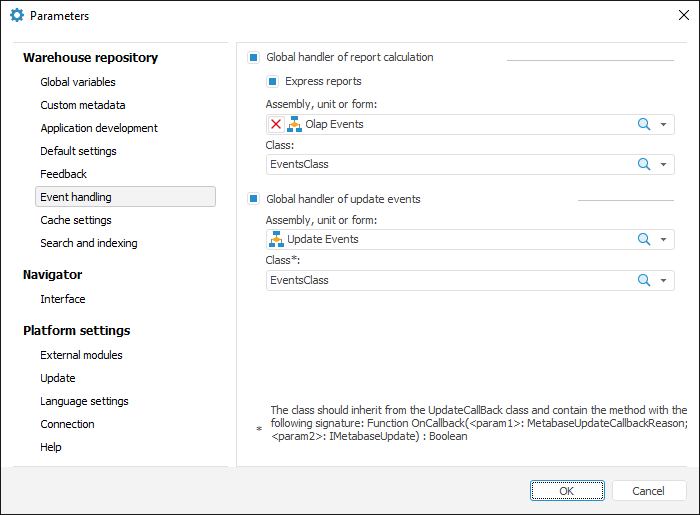

To set up express report event handling:

Select the Global Handler of Report Calculation and Express Reports checkboxes.
Select the assembly, unit or form where class implementing express report events are described.
Select a class containing event handlers. The Class drop-down list will display all classes of selected assembly, unit or form.

Handling of events occurred on working with report can be set up for express reports:

OnBeforeExecuteAnalyzer - implements an event occurred before table calculation.
OnAfterExecuteAnalyzer - implements an event, which occurs after table calculation.
OnBeforeExportAnalyzer - implements an event, which occurs before report export.
OnAfterExportAnalyzer - implements an event, which occurs after report export.
OnBeforePrintAnalyzer - implements an event, which occurs before report printing.
OnAfterPrintAnalyzer - implements an event, which occurs after report printing.

To execute the example, create a unit and connect it as event handler for express reports. Connect the Dimensions, Export, Express, Forms, Metabase system assemblies in the unit. Add event handlers:

Public Class EventsClass: ExpressEvents     param_comment: string;     Public Sub OnAfterExecuteAnalyzer(Args: IEaxAfterExecuteEventArgs);     Var DSSet: IDimSelectionSet;     Begin         DSSet := args.AnalyzerData.SheetData.Selection;         // get row-list of selected elements in dimensions of express report         param_comment := GetEaXReportParams(DSSet);         // add record to access protocol with required comment         args.AnalyzerData.Descriptor.CheckAndAudit(2, "Execute report." + param_comment);     End Sub OnAfterExecuteAnalyzer;     Public Sub OnAfterPrintAnalyzer(Args: IEaxAfterPrintEventArgs);     Var DSSet: IDimSelectionSet;     Begin         DSSet := args.AnalyzerData.SheetData.Selection;         param_comment := GetEaXReportParams(DSSet);         Debug.WriteLine(param_comment);     End Sub OnAfterPrintAnalyzer;     Public Sub OnAfterExportAnalyzer(Args: IEaxAfterExportEventArgs);     Var DSSet: IDimSelectionSet;     Begin         DSSet := args.AnalyzerData.SheetData.Selection;         param_comment := GetEaXReportParams(DSSet);         Debug.WriteLine(param_comment);     End Sub OnAfterExportAnalyzer; End Class EventsClass; // get row-list of selected elements in dimensions of express-report Public Function GetEaXReportParams(ExArDsset: IDimSelectionSet): string; Var ControlStr: string;     i, DimCnt: integer;     DimName: string;     selection: idimselection; Begin     dimCnt := ExArDsset.Count;     ControlStr := "Report parameters: ";     For i := 0 To dimCnt - 1 Do         DimName := ExArDsset.Item(i).Dimension.Name;         ControlStr := ControlStr + DimName + ": ";         selection := ExArDsset.Item(i);         If selection.SelectedCount = 0 Then             ControlStr := ControlStr + ": <not selected>. ";             Else             ControlStr := ControlStr + ": " + Selection.ToString;         End If;     End For;     Return ControlStr; End Function GetEaXReportParams;

After executing the example, when table update event occurs, the information about selected dimensions is recorded to the access protocol. On printing and export information is selected and displayed in the development console. Example of line:

Note: Report execution. Report parameters: Facts: : CountryFact: : Albania,Belgium,Bosnia and Herzegovina,Croatia,Cyprus,Czech Republic,Grenland,Hungary,Italy,Latvia Factors: : GDP Growth (% yearly)Calendar: : 2005,2006,2007,2008,2009,2010

The update handler generates information about update installation process:

Date and time.
User name.
Workstation name.
Update name.
List of objects and their versions (previous and new).
Messages of each object update.
Update status.

To set up update event handling:

Select the Global Handler of Update Events checkbox.
Select the assembly, unit or form where the class implementing update events is described.
Select the class containing event handlers. The Class drop-down list contains all classes of selected assembly, unit or form.

NOTE. The class must inherit the UpdateCallBack class and contain the method with the following signature:
Function OnCallBack(<param1>: MetabaseUpdateCallbackReason; <param1>: IMetabaseUpdate) : Boolean.

Example of update event handler. Add a link to the Metabase system assembly in the unit. Add an event handler.

Public Class UpdateHandlerClass: UpdateCallBack
    Function OnCallback(Reason: MetabaseUpdateCallbackReason; Update: IMetabaseUpdate): Boolean;
    Begin
        //Check update application modes
        Select Case Reason
            Case MetabaseUpdateCallbackReason.ApplyCoreEnd: //actions after finishing update application from core
            Case MetabaseUpdateCallbackReason.ApplyCoreStart: //actions on calling update application from core
            Case MetabaseUpdateCallbackReason.ApplyUI: //actions on calling update application from interface
            Case MetabaseUpdateCallbackReason.SaveUI: //actions on calling update saving from interface
            Case MetabaseUpdateCallbackReason.SaveCore: //actions on calling update saving from core
            Case MetabaseUpdateCallbackReason.LoadCoreEnd: //actions on finishing reading update from core
        End Select;
        return False; //without interrupting system action
    End Function OnCallback;
End Class UpdateHandlerClass;

The example execution result depends on the specified actions for MetabaseUpdateCallbackReason calculation.

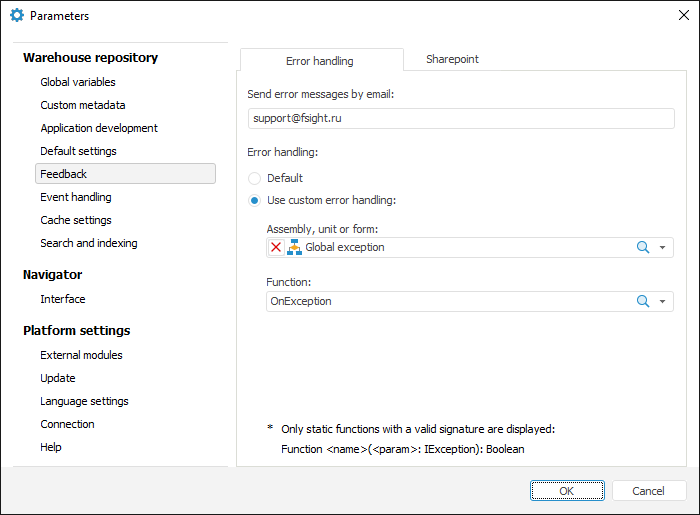

To set up handling options for errors occurring in Foresight Analytics Platform based systems, use the Error Handling tab in the Feedback section of the Parameters dialog box.

To open the Parameters dialog box

Specify the following parameters:

Send Error Messages by Email. Specify email address, to which error reports should be sent. Default email client installed in user operating system is used to send email messages
Error Handling. Select one of the available radio buttons:

Default. On working, Foresight Analytics Platform will use the built-in mechanism of error handling: if error occurs, the appropriate window with information about error and ability to send it by the specified email
Use Custom Error Handling. Errors occurring in Foresight Analytics Platform can be handled in the function with the following signature:
Function <function name>(<parameter name>: IException): Boolean

Select an assembly, unit or form, which contains function with appropriate signature, in the drop-down list. The list of selected unit, form or assembly functions satisfying this signature is displayed in the Functions drop-down list.

NOTE. The proper error handler enables the user to handle only the errors occurred in application code. Errors that can appear in the Foresight Analytics Platform core will be displayed in the corresponding window.
