EaxDimBarMaster

Description

The EaxDimBarMaster component implements the dimension selection wizard.

Comments

The EaxDimBarMaster component is implemented by the EaxDimBarMaster class.

Example

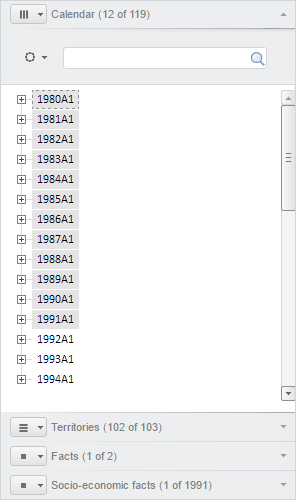

The EaxDimBarMaster component may look as follows:

Example of Creating the EaxDimBarMaster Component

Constructor

	Constructor name	Brief description
	EaxDimBarMaster	The EaxDimBarMaster constructor creates an instance of the EaxDimBarMaster class

Properties

	Property name	Brief description
	DataView	The DataView property sets the array of data views, selection for which is set in the wizard.
	Mode	The Mode property sets wizard display mode.
	Service	The Service property indicates a service used by the wizard to work with express reports.
	Source	The Source property sets data source for the component.

Methods

	Method name	Brief description
	clearDims	The clearDims method recreates dimensions in selection wizard.
	getCurrentState	The getCurrentState method returns information on dimensions of selection wizard, namely, dimension key and position.
	getDimTreeView	The getDimTreeView method returns view of the dimension tree in the selection wizard.
	getEnableDragDim	The getEnableDragDim method determines whether dimensions can be moved.
	getPanelByDimKey	The getPanelByDimKey method returns a wizard panel by dimension key.
	moveDim	The moveDim method moves a dimension to the specified position.
	refreshAll	The refreshAll method refreshes all elements of selection wizard.
	refreshSelections	The refreshSelections method refreshes the specified dimensions.
	setIsFixed	The setIsFixed method fixes a dimension in selection wizard.
	setPropertyValue	The setPropertyValue method sets property values for the selection wizard.

Events

	Event name	Brief description
	DimensionMoved	The DimensionMoved event occurs on moving a dimension in selection wizard.
	PropertyChanged	The PropertyChanged event occurs after changing a selection wizard property.
	MetadataChanged	The MetadataChanged event occurs after changing data in dimension selection wizard.
	RequestMetadata	The RequestMetadata event is generated when no data is contained in the source of dimension panel.

Methods inherited from the class Master

	Method name	Brief description
	addClassToTitles	The addClassToTitles method sets an additional style class to titles of all wizard tabs except for the first one.
	addMaster	The addMaster method adds a child wizard.
	addMasterPanel	The addMasterPanel method adds a wizard panel.
	addNavItem	The addNavItem method adds a control to the wizard.
	beginUpdate	The beginUpdate method starts wizard update.
	clearItems	The clearItems method clears the list of panels.
	endUpdate	The endUpdate method finishes wizard update.
	expandFirstItem	The expandFirstItem method expands the first visible tab if the wizard is visible.
	getActiveGroupName	The getActiveGroupName method returns the name of the currently shown group of contextual panels.
	getActivePanel	The getActiveItem method returns the active panel tab of wizard.
	getItem	The getItem method returns a wizard panel by its type or sequence number in the list of panels.
	getItems	The getItems method returns array of wizard panels.
	hideGroup	The hideGroup method hides tab groups by their names.
	refresh	The refresh method refreshes all wizard panels.
	refreshGroup	The refreshGroup method refreshes panels that belong to a specific group.
	removeMaster	The removeMaster method removes child wizard.
	removeMasterPanel	The removeMasterPanel method removes wizard panel.
	removePanelsByGroup	The removePanelsByGroup method removes panels by name of the group, to which they belong.
	showGroup	The showGroup method shows tab groups by their name.
	showOnlyGroup	The showOnlyGroup method shows only specified groups and hides all the other groups.

Events inherited from the class Master

	Event name	Brief description
	ControlChanged	The ControlChanged event occurs on changing the state of controls included into the wizard.

Methods inherited from the class ProxyControl

	Method name	Brief description
	getControl	The getControl method returns the basic control that inherits from PP.Ui.Control.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

Events inherited from the class Control

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

Properties inherited from the class Object

	Property name	Brief description
	Id	The Id property determines a repository object identifier.

Methods inherited from the class Object

	Method name	Brief description
	clone	The clone method creates an object copy.
	dispose	The dispose method deletes the component.
	getHashCode	The getHashCode method returns hash code of repository object.
	getSettings	The getSettings method returns repository object settings.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.
	isEqual	The isEqual method determines whether the specified object is equal to the current repository object.
	isLive	The isLive method determines validity of repository object.
	removeAllEvents	The removeAllEvents method removes all object event handlers by the specified context.
	setSettings	The setSettings method determines repository object settings.
	defineProps	The defineProps method creates get and set methods from name array for the specified class.
	keys	The keys method returns array of methods and properties names for the specified object.

See also:

DHTML Components
