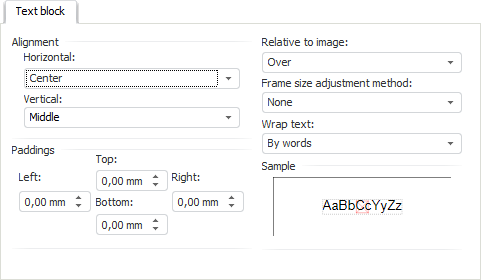

Text Block

In the Alignment group in the drop-down lists select horizontal and vertical alignment for a text relative to object borders.

In the value editors of the Paddings group set size of text paddings from object borders.

In the Relative to Image drop-down list specify position of text relative to object images.

In the Frame Size Adjustment Method drop-down list select a method of frame size adjustment to text size:

• None. Frame is not resized.

• By Height. Frame is resized to fit the height of text and image in the object.

• By Width. Frame is resized to fit the width of text and image in the object.

In the Wrap Text drop-down list specify text wrap method: by words or do not wrap words to the next line.

NOTE. Text in the Chinese language is wrapped by hieroglyphs.

The Sample area shows a label text formatted in accordance with currently selected parameters.
