IVZTreeMap

Assembly: Visualizators;

Namespace: Prognoz.Platform.Interop.Visualizators;

Description

The IVZTreeMap interface is used to work with a tree map.

Inheritance Hierarchy

          IVZInteractable

          IVZBazeDataVisualizer

          IVZDataVisualizer

          IVZTreeDataVisualizer

          IVZTreeMap

Comments

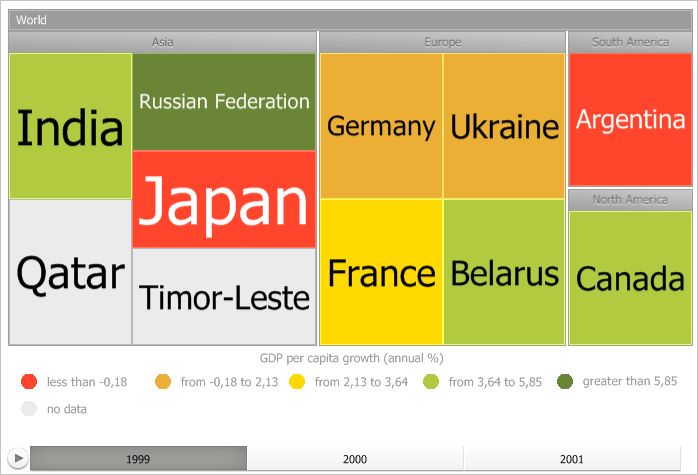

A tree map may look as follows:

Tree map parameters can be obtained in the IEaxTreeMap.TreeMap property.

Properties

	Property name	Brief description
	AnimationTime	The AnimationTime property determines animation time in seconds.
	BranchItemsToolTipStyle	The BranchItemsToolTipStyle property determines style of tree map branch tooltips.
	BranchSpacing	The BranchSpacing property determines distance between tree map branches.
	Breadcrumb	The Breadcrumb property determines tree map breadcrumb.
	CaptionHeight	The CaptionHeight property determines the height of tree map branch titles area.
	Captions	The Captions property determines collection of labels of tree map elements.
	ColorVisual	The ColorVisual property determines visualizer used for tree map data mapping with color fill of their children.
	EndHeaderStyle	The EndHeaderStyle property determines end style of tree map branch titles.
	HeatMap	The HeatMap property determines whether it is possible to place root and children elements of tree map at the same level.
	HeightVisual	The HeightVisual property determines visualizer used to set the height of tree map children.
	HierarchyDepth	The HierarchyDepth property determines the shown level of tree map element hierarchy.
	ItemsToolTipStyle	The ItemsToolTipStyle property determines style of tooltips for tree map leaves.
	LabelAutoColor	The LabelAutoColor property determines the value used to automatically calculate font color of tree map leaf labels.
	LabelsStyle	The LabelsStyle property determines style of text labels for tree map elements.
	LeafBorderWidth	The LeafBorderWidth property determines width of borders of tree map leaves.
	MaxFontSize	The MaxFontSize property determines maximum font size for tree map text labels.
	MinFontSize	The MinFontSize property determines minimum font size for tree map text labels.
	Palette	The Palette property determines color palette of tree map.
	RenderMode	The RenderMode property determines tree map visualization mode.
	ShowBranches	The ShowBranches property determines whether tree map will display parent elements of observation elements.
	SelectionBorderPen	The SelectionBorderPen property determines selection border parameters.
	SizeVisual	The SizeVisual property selects visualizer used to determine size of tree map children.
	StartHeaderStyle	The StartHeaderStyle property determines start style of tree map branch titles.
	TextVisual	The TextVisual property determines text visualizer.
	UseItemColorForToolTipBorder	The UseItemColorForToolTipBorder property determines whether the element color is used to select the tooltip border when pointing the mouse cursor on it.
	UseSelectOnClick	The UseSelectOnClick property determines whether the mouse click is used to select parent elements.
	View3D	The View3D property determines tree map visualization mode.

Properties inherited from IVZTreeDataVisualizer

	Property name	Brief description
	Model	The Model property determines a data model for tree-type visualizers.

Properties inherited from IVZDataVisualizer

	Property name	Brief description
	DataMappingToLegendAssignment	The DataMappingToLegendAssignment property determines bubble tree data binding to legend.
	HoverActiveEffects	The HoverActiveEffects property determines effects applied to the hovered element.
	HoverInactiveEffects	The HoverInactiveEffects property determines effects applied to the inactive elements, which are not hovered.
	Index	The Index property determines level of the dimension, by which data is selected.
	Legends	The Legends property determines collection of visualizer legends.
	SelectActiveEffects	The SelectActiveEffects property determines effects applied to selected elements.
	SelectInactiveEffects	The SelectInactiveEffects property determines effects applied to the inactive elements, which are not selected.
	TimeLine	The TimeScale determines visualizer timeline.
	UseSelectOnRightClick	The UseSelectOnRightClick property determines whether to select element on the right click.

Methods inherited from IVZDataVisualizer

	Method name	Brief description
	LoadFromXml	The LoadFromXml method loads XML parameters of visualizer: style and data.
	LoadStyleFromXml	TheLoadStyleFromXml method loads XML parameters of visualizer style.
	SaveStyleToXml	The SaveStyleToXml method saves parameters of visualizer style to XML file.
	SaveToXml	The SaveToXml method saves visualizer parameters to XML file: style and data.

See also:

Visualizators Assembly Interfaces
