Object Preview and Print

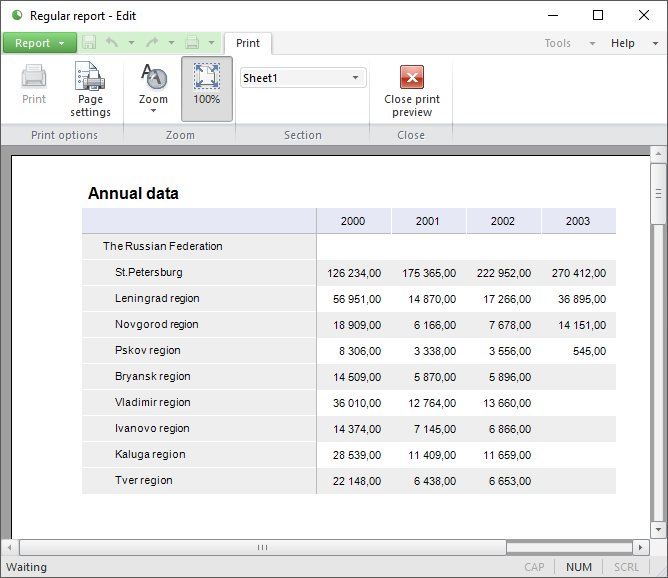

Preview mode is used to check object before printing. In this mode the object is displayed on the screen as it will look like on the paper.

NOTE. When a report is previewed for printing, the stamp #1 can be displayed in accordance with the Guidelines #0126-87 if mandatory access control is used as the security policy, and export and print labeling is enabled for this object.

Click the Print button on the ribbon or select the same main menu item.

The Print dialog box opens to set up print options and selecting used printer.

Click the Page Settings button on the ribbon. The Page Settings dialog box opens to set up object printed page settings.

The Page Settings dialog box look differs depending on the Foresight Analytics Platform tool, in which preview is performed. For details of this dialog box see the description of the corresponding tool.

To select a scale of a current printed page of the object, click the Zoom button on the ribbon. Select the required zoom in the menu that opens. Available values:

200%. 150%. 100%. 75%. 50%. 25%. Fixed zoom values.
Fit to Page Width. A zoom wherein the printed page is displayed in the preview window in a full width.
A zoom wherein a fixed number of printed pages is displayed in the preview window:

Whole page.
Two pages.
Four pages.
Six pages.

Custom. Custom zoom specified by a user. The Set Zoom dialog box opens to enter zoom value.

To set the 100% zoom, click the 100% button on the ribbon.

To change zoom, the mouse buttons can be used: hover the cursor over preview area and click the left button to zoom in, the right button to zoom out.
