Calculator

It is used to create a calculated series by the custom formula.

To apply the method

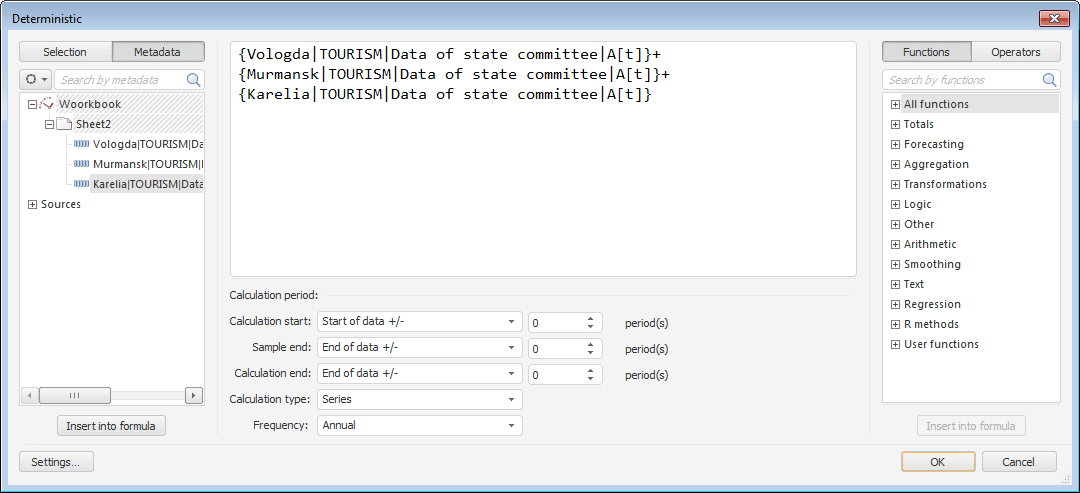

After the method is applied the expression editor opens, which is used to create a calculation formula for calculated series. For example:

Set a calculation formula for calculated series. For details see the Expression Editor section.

If the formula is set correctly, clicking the OK button closes the expression editor. A calculated series named Deterministic, containing calculation results, is added to the workbook. Children of this series are series included into calculation formula.

Setting Up Calculation Parameters. The Parameters Tab

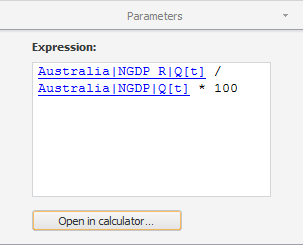

To set up calculation parameters, use the Parameters side panel tab. The tab contains the formula, by which a series is calculated.

To display the tab

To edit the calculation formula:

• Use the Expression box.

• Click the Open in Calculator button. The expression editor opens.

See also:

Working with Calculated Series | Setting Up Calculation Method Parameters | Modeling Container: Determinate Equation
