WbkDataBox

Description

The WbkDataBox component is used to show and manage workbook data.

Example

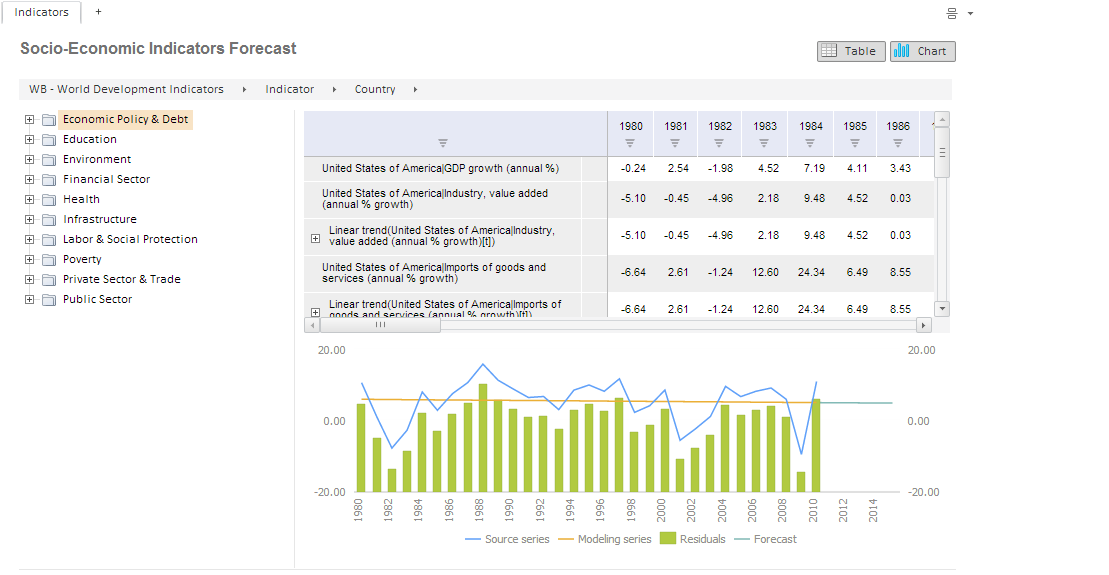

A workbook looks as follows:

The example of creating the component is given on the WbkDataBox Constructor page.

Constructor

	Constructor name	Brief description
	WbkDataBox	The WbkDataBox constructor creates an instance of the WbkDataBox class.

Properties inherited from the WbkDataView class

	Property name	Brief description
	IsBreadcrumbVisible	The IsBreadcrumbVisible property determines whether breadcrumb and series tree are visible.
	Source	The Source property determines a data source for a time series analysis workbook.

Methods inherited from the WbkDataView class

	Method name	Brief description
	createTabControl	The createTabControl method creates a sheet panel.
	getBreadcrumb	The getBreadcrumb method returns instance of the MetaAttributeBreadCrumbView class.
	getChartView	The getChartView method returns a component that is used to display a chart.
	getGaugeView	The getGaugeView method returns speedometer container.
	getGridView	The getGridView method returns a component that is used to display a table.
	getMapView	The getMapView method returns a component that is used to display a map.
	getMetaAttrTree	The getMetaAttrTree method returns a series tree.
	getModeSelectorView	The getModeSelectorView method returns the component that controls workbook views layout.
	getStatPanelVisible	The getStatPanelVisible method determines whether statistics panel is visible.
	getTitleView	The getTitleView method returns a component that is used to display a workbook title.
	getToolBarView	The getToolBarView method returns a group of buttons that are used to select a data view variant.
	getViews	The getViews method returns an array of visualizer views.
	refresh	The refresh method refreshes the specified workbook elements.
	refreshAll	The refreshAll method refreshes all workbook contents.
	refreshMetaAttribute	The refreshMetaAttribute method refreshes the components that display information about attributes (series tree and breadcrumb).
	refreshView	The refreshView method refreshes the specified workbook elements.
	setActiveSheet	The setActiveSheet method determines an active sheet key.
	setMainElementsVisible	The setMainElementsVisible method determines visibility for a splitter, breadcrumb, and toolbar.
	setSourcesCaption	The setSourcesCaption method sets a data source name to be displayed in the breadcrumb.
	setSplitterStatPanelHeight	The setSplitterStatPanelHeight method determines height of the splitter panel that contains statistics panel.
	showCannotOpenCube	The showCannotOpenCube method displays a window with the warning that the selected cube cannot be selected as a source.
	updateSourcesCaptionSize	The updateSourcesCaptionSize method refreshes size of the breadcrumb part that displays data source name.

Events inherited from the WbkDataView class

	Event name	Brief description
	ActiveSheetChanged	The ActiveSheetChanged event occurs after changing active sheet.
	DocDataChanged	The DocDataChanged event occurs after workbook document parameters have been changed.
	ObjSizeChanged	The ObjSizeChanged event occurs after changing element sizes of the StackPanel component that contains map, chart and table.
	PropertyChanged	The PropertyChanged event occurs after changing workbook parameter.
	Refreshed	The Refreshed event occurs after component refresh is completed.
	RequestMetadata	The RequestMetadata event occurs on metadata request.
	SheetClick	The SheetClick event occurs on clicking a sheet title.
	TreeVisibleChanged	The TreeVisibleChanged event occurs after visibility of the series tree is changed.

Properties inherited from the class Control

	Property name	Brief description
	Anchors	The Anchors property determines position of the component placed within container.
	Animation	The Animation property sets animation parameters for component.
	Bottom	The Bottom property sets bottom offset on placing the component within the LayoutPanel.
	Content	The Content property sets the component contents.
	ContextMenu	The ContextMenu property sets the context menu for the component.
	Data	The Data property is used to store any custom data.
	DataContext	The DataContext property contains an object with data.
	Enabled	The Enabled property sets whether the component is enabled.
	Height	The Height property determines the component height.
	IsResizable	The IsResizable property determines whether the component can be resized.
	IsRTL	The lsRTL property sets right to left text direction.
	IsVisible	The IsVisible property determines whether the component is displayed.
	Left	The Left property sets left offset on placing the component within the GridPanel.
	Offset	The Offset property determines coordinates of root DOM node of a control.
	Opacity	The Opacity property determines component transparency.
	Parent	The Parent property determines a parent component of a control.
	ParentNode	The ParentNode property sets parent DOM node.
	ResourceKey	The ResourceKey property sets the resource key for the component.
	Right	The Right property sets right offset on placing the component within the LayoutPanel.
	Rotate	The Rotate property sets component rotation angle.
	ShowToolTip	The ShowToolTip property determines whether the tooltip of the component can be displayed.
	Style	The Style property sets component style.
	TabIndex	The TabIndex property sets the order of the control element passing inside the container.
	Tag	The Tag property sets JSON object associated with the component.
	ToolTip	The ToolTip property determines text of component tooltip.
	Top	The Top property sets top offset on placing the component within the GridPanel.
	Value	The Value property sets the value to the component.
	Width	The Width property sets the component width.

Methods inherited from the class Control

	Method name	Brief description
	addClass	The addClass method adds a CSS class to the component.
	addEvent	The addEvent method adds an event handler to a DOM node.
	addEventHandler	The addEventHandler method adds an event handler to a DOM node.
	addEvents	The addEvents method adds an array of event handlers to a DOM node.
	addStateClass	The addStateClass method adds a CSS class to the component and removes the previous CSS class.
	addStyleBySelector	The addStyleBySelector method creates a block that contains a style with the specified CSS selector.
	addToNode	The addToNode method adds a component to the specified node.
	bindEvents	The bindEvents method subscribes an element to all available events.
	clearStylesCache	The clearStylesCache method clears cache of component styles.
	getAnchorFlags	The getAnchorFlags method returns JSON object that contains settings of the current component's position.
	getClass	The getClass method returns the current CSS classes of the component.
	getCssStyle	The getCssStyle method returns style for the specified node.
	getDomNode	The getDomNode method returns main DOM node of the component.
	getFocused	The getFocused method determines whether the component is focused.
	getFunctionByName	The getFunctionByName method returns function by name.
	getIsBinded	The getIsBinded method returns whether an element is subscribed to all DOM node events.
	hasClass	The hasClass method determines whether the specified CSS class is set for root DOM node of the control.
	hide	The hide method hides a control.
	hideToolTip	The hideToolTip method clears tooltip timeout and hides the tooltip if it is displayed.
	isResingNow	The isResingNow method determines whether the component is being resized.
	refreshBindingProperty	The refreshBindingProperty method refreshes the bound property by name.
	refreshItemsStyle	The refreshItemsStyle method refreshes CSS styles of child elements.
	refreshStyle	The refreshStyle method refreshes element CSS styles.
	removeClass	The removeClass method removes CSS class from the component.
	removeEvent	The removeEvent method removes event handler from DOM node.
	removeEventHandler	The removeEventHandler method removes event handler from DOM node.
	removeFromDOM	The removeFromDOM method removes node from the DOM structure.
	removeStateClasses	The removeStateClasses method removes CSS classes of the component.
	setDraggable	The setDraggable method determines whether it is possible to drag component on the HTML page.
	setFocus	The setFocus method sets the component focus.
	setIsHovered	The setIsHovered method displays the component as on hover.
	setIsPressed	The setIsPressed method displays the component as if clicked upon.
	setOpacityIE8	The setOpacityIE8 method sets component transparency value in Internet Explorer 8.
	setSize	The setSize method establishes the sizes of the component.
	show	The show method displays a control.
	unBindEvents	The unBindEvents method unsubscribes an element from all standard events.
	updatePosition	The updatePosition method updates size and position when absolute positioning based on the current parameters is used.
	updateSize	The updateSize method updates the component size on changing the size of the container that contains the component.

Events inherited from the class Control

	Event name	Brief description
	Drag	The Drag event occurs on clicking and holding the left mouse button.
	DragEnd	The DragEnd event occurs when dragging the component finishes.
	DragStart	The DragStart event occurs when dragging the component starts.
	OnContextMenu	The OnContextMenu event occurs on calling context menu of the component.
	SizeChanged	The SizeChanged event occurs after the component is resized.
	SizeChanging	The SizeChanging event occurs during component resize.

Properties inherited from the class Object

	Property name	Brief description
	Data	The Data property associates a random object with this component.
	Id	The Id property sets component identifier.
	Settings	The Settings property sets the component parameters.

Methods inherited from the class Object

	Method name	Brief description
	clone	The clone method creates a copy of object. It is not implemented in PP.Ui.Control.
	dispose	The dispose method deletes the component.
	getTypeName	The getTypeName method returns the name of the object type without the namespace, to which it belongs.

See also:

DHTML Components
