To execute the example create an HTML page and perform the following operations:
1. In the HEAD tag add links to the following CSS files: PP.css, PP.Express.css, PP.Metabase.css.
Also add links to the following JS files: PP.js, PP.ChartMaster.js, PP.MapMaster.js, PP.MapChart.js, PP.TabSheet.js, PP.Metabase.js, PP.Navigator.js, PP.Express.js, jquery.js, highcharts.src.js, and resources.ru.js.
2. In the SCRIPT tag add code to create the MapMaster and EaxMapBoxcomponents:
<script type="text/javascript">
var eaxData;
var idTime;
onReady = function () {
var IMAGE_PATH = "../../build/img/"; //path to images folder
PP.resourceManager.setRootResourcesFolder("../resources/"); //path to resources folder
PP.setCurrentCulture(PP.Cultures.ru); //select language settings
var eaxAnalyzer, eaxMbService;
//create the Waiter component used to wait for metabase connection
waiter = new PP.Ui.Waiter();
//Create a metabase instance
metabase = new PP.Mb.Metabase({
Id: "Prognozplatform_systest",
UserCreds: { UserName: "sa", Password: "Qwerty1" },
StartRequest: function () {
waiter.show();
},
EndRequest: function () {
waiter.hide();
},
Error: function (sender, args) {
alert(args.ResponseText);
}
});
//Open metabase
metabase.open();
//Create a service used to work with express reports
eaxMbService = new PP.Exp.EaxMdService({ Metabase: metabase });
//open express report with the 935529 key for edit
eaxAnalyzer = eaxMbService.edit(935529);
//Create a container for express report map
mapBox = new PP.Exp.Ui.EaxMapBox({
Source: eaxAnalyzer, // Data source
Width: 500,
Height: 500,
ParentNode: "Map",
Service: eaxMbService
});
//Create map wizard
master = new PP.Ui.MapMaster({
ParentNode: "mapM", //DOM node where chart wizard will be placed
Height: 500,
Width: 310,
ImagePath: IMAGE_PATH,
DataView: mapBox
});
}
</script>
3. In the BODY tag place the created components:
<body onselectstart="return false" class="PPNoSelect" onload="onReady()"> <table style="width: 100%"> <tr> <td valign="top" width="350" id="mapM"> </td> <td valign="top" id="Map"> </td> </tr> </table> </body>

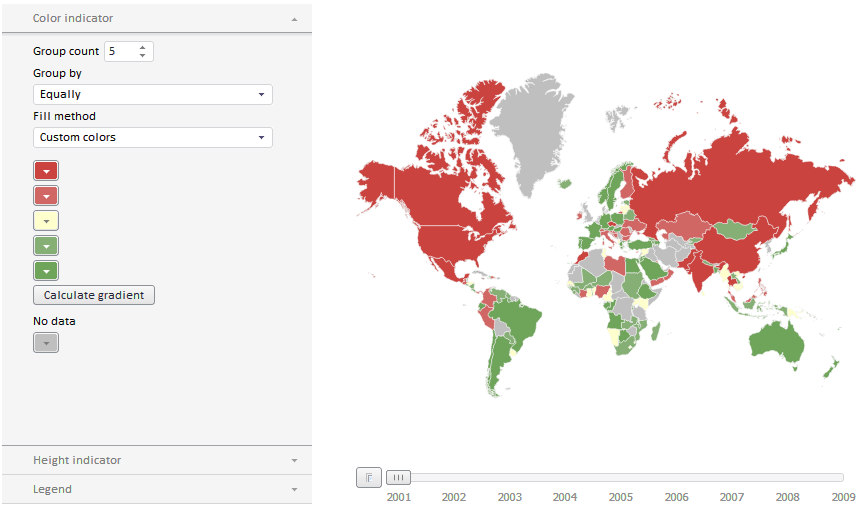

After executing the example the page contains the layout of the express report map and the master for its setup:
