Chart

Description

The Chart is used to work with a chart based on the Canvas item.

Comments

The Chart component is implemented with the Chart class.

The component is used to represent data in the chart. This data is shown as series that have a set of points. For different chart types the user should define specific settings for series and points combined in specific classes. Thus, in an area chart the data series are implemented with the ChartAreaSerie class and the points are implemented with the ChartAreaPoint class. Histograms use ChartColumnSerie and ChartColumnPoint classes respectively, while pie charts use ChartPieSerie and ChartPiePoint classes. Data series of a spline chart is represented with the ChartSplineSerie class.

Both rectangular or polar coordinate systems can be applied when plotting the chart. The polar coordinate system is implemented with the ChartPolarXAxis and ChartPolarYAxis classes.

Example

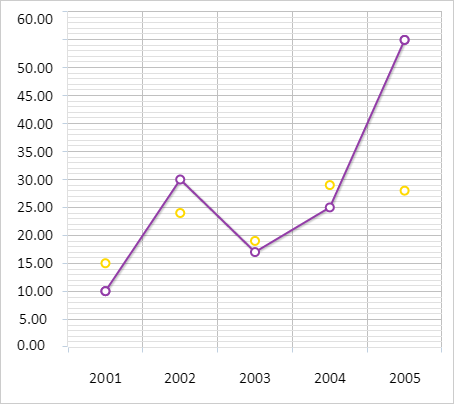

The Chart component may look as follows:

Example of Creating a Histogram

Example of Creating a Stacked Histogram

Example of Creating an Area Chart

Example of Creating a Pie Chart

Example of Creating a Line Chart

Example of Creating a Spline Chart

Example of Creating a Scatter Chart

Constructor

	Constructor name	Brief description
	Chart	The Chart constructor creates an instance of the Chart class.

Properties

	Property name	Brief description
	Center	The Center property determines chart center.
	CustomData	The CustomData property determines custom data.
	Draggable	The Draggable property determines whether a chart can be dragged.
	EditMode	The EditMode property determines an object that is used to edit a chart.
	ExcludeInvisibleSeries	The ExcludeInvisibleSeries property determines whether chart invisible data series must be excluded from calculation.
	Inverted	The Inverted property determines whether a chart is inverted.
	LabelsLayer	The LabelsLayer property determines a element that is a rendering layer of chart labels.
	Legend	The Legend property determines a chart legend.
	LegendFormatter	The LegendFormatter property determines formatting of chart legend labels.
	MarkersEnabled	The MarkersEnabled property determines whether chart data series markers are displayed.
	MarkersSymbol	The MarkersSymbol property determines a shape of chart data series marker.
	PaddingBottom	The PaddingBottom property determines bottom padding of chart.
	PaddingLeft	The PaddingLeft property determines left padding of chart.
	PaddingRight	The PaddingRight property determines right padding of chart.
	PaddingTop	The PaddingTop property determines top padding of chart.
	PlotArea	The PlotArea property determines chart rendering area.
	Polar	The Polar property determines whether a polar system of coordinates is used on a chart.
	Scroller	The Scroller property determines a chart scroller.
	Series	The Series property determines an array of chart data series.
	Stacking	The Stacking property determines stacking type on a chart.
	ToolTipDataFormat	The ToolTipDataFormat property determines tooltip data format.
	ToolTipDelay	The ToolTipDelay property determines a delay before a tooltip is displayed.
	ToolTipFollowPointer	The ToolTipFollowPointer property determines behavior of a tooltip on moving the mouse cursor.
	ToolTipFormatter	The ToolTipFormatter property determines a tooltip text mask.
	Type	The Type property determines a chart type.
	UseIndicatorColorForToolTipBorder	The UseIndicatorColorForToolTipBorder property determines coloring of tooltip border with series color.
	UseMarkersThinning	The UseMarkersThinning property determines whether markers are hidden provided at least some of them overlap each other.
	UseSelectOnRightClick	The UseSelectOnRightClick property determines whether chart elements are selected by the right mouse click.
	UseSoftPadding	The UseSoftPadding property determines whether alternative calculation of chart paddings is used.
	UseZeroSubstitution	The UseZeroSubstitution property determines whether empty values in data series are filled with zeros.
	XAxis	The XAxis property determines a chart category axis.
	YAxis	The YAxis property determines a chart value axis.
	YSAxis	The YSAxis property determines a chart secondary value axis.

Methods

	Method name	Brief description
	addSerie	The addSerie method adds a new data series to a chart.
	destroy	The destroy method deletes a chart.
	getColumnSeriesCount	The getColumnSeriesCount method returns the number of chart data series as columns.
	getForecastRange	The getForecastRange method returns the maximum backward and forward forecast for a chart.
	getIsCartesianChart	The getIsCartesianChart method returns whether a chart uses Cartesian system of coordinates.
	getIsResizing	The getIsResizing method returns whether a chart is being resized.
	getOriginalPlotBorders	The getOriginalPlotBorders method returns an object with chart sizes and paddings considering only DOM element sizes and paddings.
	getPaddings	The getPaddings method returns an object containing chart paddings.
	getPaddingWasApplied	The getPaddingWasApplied method returns an object containing whether chart paddings are applied.
	getPlotBorders	The getPlotBorders method returns an object with chart sizes and paddings.
	getSelection	The getSelection method returns an object containing information about selected chart series elements.
	getSerie	The getSerie method returns a chart data series by its index.
	getSeriesStacks	The getSeriesStacks method recalculates all chart stacks for further calculations.
	getSeriesTypes	The getSeriesTypes method returns an array of chart series.
	getStackExtrems	The getStackExtrems method returns calculated values of chart stacks.
	hoverItems	The hoverItems method sets highlighting for the specified chart series.
	isWidthDataSupported	The isWidthDataSupported method returns whether width and angle indicator is used.
	redraw	The redraw method rerenders a chart.
	removeAllSeries	The removeAllSeries method removes all chart data series.
	removeSerie	The removeSerie method removes the specified chart data series.
	resize	The resize method resizes a chart.
	selectItems	The selectItems method selects the specified chart series.
	updateLegendHighlightMode	The updateLegendHighlightMode method refreshes selection mode in the legend on enabling or disabling of chart editing.

Events

	Event name	Brief description
	Deselected	The Deselected event occurs on deselecting chart element series.
	ItemsHovered	The ItemsHovered event occurs on hovering the cursor on a chart series.
	ItemsSelected	The ItemsSelected event occurs on selecting a chart series.
	ItemsVisibilityChanged	The ItemsVisibilityChanged occurs on changing visibility of chart data series.
	PointMouseOut	The PointMouseOut event occurs after the cursor leaves a chart data series point.
	PointMouseOver	The PointMouseOver event occurs after hovering the cursor on the chart data series point.
	Rendered	The Rendered event occurs on rendering a chart.
	Scroll	The Scroll event occurs when the chart X axis is scrolled.
	Selected	The Selected event occurs on selecting a chart series element.
