IVZBubbleTree

Assembly: Visualizators;

Namespace: Prognoz.Platform.Interop.Visualizators;

Description

The IVZBubbleTree interface is used to work with a bubble tree.

Inheritance Hierarchy

IVZTreeDataVisualizer

IVZBubbleTree

Comments

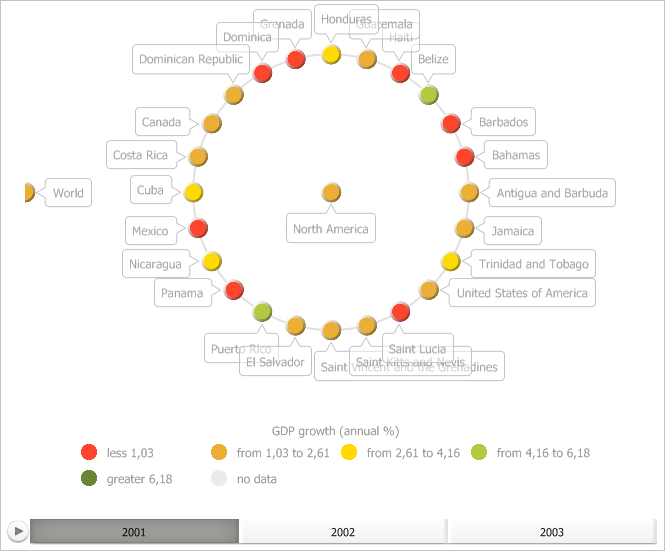

A bubble tree may look as follows:

Bubble tree parameters can be obtained in the IEaxBubbleTree.BubbleTree property.

Properties

	Property name	Brief description
	Alignment	The Alignment property determines alignment type for elements in a bubble tree.
	AnimationTime	The AnimationTime property determines animation time in seconds for bubble tree elements.
	Captions	The Captions property determines labels for bubble tree elements.
	ColorVisual	The ColorVisual property determines a visualizer which maps bubble tree data with color fill of their children.
	Index	The Index property determines the dimension level used to select data.
	InnerLabelsStyle	The InnerLabelsStyle property determines inner labels style of bubble tree elements.
	ItemsToolTipStyle	The ItemsToolTipStyle property returns an object used to work with tooltip style.
	LabelAutoColor	The LabelAutoColor property determines whether automatic color of tooltip font is used.
	OrbitsPen	The OrbitsPen property determines orbit line pen for a bubble tree.
	OuterLabelsStyle	The OuterLabelsStyle property determines outer labels style for bubble tree elements.
	Palette	The Palette property determines color palette of a bubble tree.
	SizeVisual	The SizeVisual property selects visualizer used to determine size of bubble tree children.
	TextVisual	The TextVisual property determines text visualizer.
	UseItemColorForToolTipBorder	The UseItemColorForToolTipBorder property determines whether the element color is used to select the tooltip border when pointing the mouse cursor on it.

Properties inherited from the IVZTreeDataVisualizer Interface

	Property name	Brief description
	Model	The Model property determines a data model for tree-type visualizers.

See also:

Visualizators Assembly Interfaces
