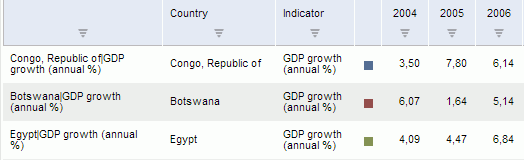

Отображение дополнительных столбцов со значениями атрибутов

SOAP-запрос:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">

<s:Body xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">

<SetWbkMd xmlns="http://www.fsight.ru/PP.SOM.Som">

<tWbk xmlns=" ">

  <id>S1!M!S!W4</id>

  </tWbk>

<tArg xmlns=" ">

  <refresh />

<pattern>

  <obInst>true</obInst>

  <sorting>true</sorting>

  <columns>Add</columns>

  <columnsFilter />

  </pattern>

<meta>

<columns>

<its>

<it>

  <k>0</k>

  <type>Database</type>

  <readOnly>true</readOnly>

<db>

  <text>Name</text>

  </db>

  <customTitle>Источник данных</customTitle>

  </it>

<it>

  <k>0</k>

  <type>Attribute</type>

  <readOnly>false</readOnly>

<att>

  <namingFormat />

<att hasMultipleValues="false">

  <k>5</k>

  <id>UNIT</id>

  <n>Единица измерения</n>

  <vis>false</vis>

  <value />

<valuesObj isLink="false" isShortcut="false">

  <i>UNITS</i>

  <n>Единицы измерения</n>

  <k>174</k>

  <c>4354</c>

  <p>159</p>

  <h>false</h>

  </valuesObj>

  <dt>2</dt>

  <predefined>true</predefined>

  <primary>false</primary>

<unitsObj isLink="false" isShortcut="false">

  <i>UNITS</i>

  <n>Единицы измерения</n>

  <k>5483</k>

  <c>1033</c>

  <p>5472</p>

  <h>false</h>

  </unitsObj>

  </att>

  </att>

  </it>

  </its>

  <fullHints>false</fullHints>

  </columns>

<sorting>

<header>

<its>

<it direction="Asc">

<col>

  <k>0</k>

  <id>NAME</id>

  </col>

  </it>

  </its>

  </header>

  </sorting>

  </meta>

<metaGet>

  <obInst>true</obInst>

  </metaGet>

  </tArg>

  </SetWbkMd>

  </s:Body>

  </s:Envelope>

SOAP-ответ:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">

<soapenv:Body>

<SetWbkMdResult xmlns="http://www.fsight.ru/PP.SOM.Som" xmlns:q1="http://www.fsight.ru/PP.SOM.Som" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

  <refresh xmlns=" " />

<id xmlns=" ">

  <id>S1!M!S!W4</id>

  </id>

<meta xmlns=" ">

<obInst>

<obDesc isShortcut="0" isLink="0">

  <i>WBK_AD_COLUMNS</i>

  <n>Годовые данные с доп. столбцами</n>

  <k>5528</k>

  <c>2827</c>

  <p>5471</p>

  <h>0</h>

  </obDesc>

  </obInst>

  <dirty>1</dirty>

  <windowsPosition>Vertical</windowsPosition>

  <hasPivot>0</hasPivot>

  <hasLaner>1</hasLaner>

<series count="3">

  <its />

  </series>

  </meta>

  </SetWbkMdResult>

  </soapenv:Body>

  </soapenv:Envelope>

JSON-запрос:

{
 "SetWbkMd" :
  {
   "tWbk" :
    {
     "id" : "S1!M!S!W4"
    },
   "tArg" :
    {

     "refresh" : "",
     "pattern" :
      {
       "obInst" : "true",
       "sorting" : "true",
       "columns" : "Add",
       "columnsFilter" : ""
      },
     "meta" :
      {

       "columns" :
        {
         "its" :
          {
           "it" :
            [
              {
               "k" : "0",
               "type" : "Database",
               "readOnly" : "true",

               "db" :
                {
                 "text" : "Name"
                },
               "customTitle" : "Источник данных"
              },
              {
               "k" : "0",
               "type" : "Attribute",
               "readOnly" : "false",

               "att" :
                {
                 "namingFormat" : "",
                 "att" :
                  {
                   "@hasMultipleValues" : "false",
                   "k" : "5",
                   "id" : "UNIT",
                   "n" : "Единица измерения",
                   "vis" : "false",

                   "value" : "",
                   "valuesObj" :
                    {
                     "@isShortcut" : "false",
                     "@isLink" : "false",
                     "i" : "UNITS",
                     "n" : "Единицы измерения",
                     "k" : "174",
                     "c" : "4354",
                     "p" : "159",

                     "h" : "false"
                    },
                   "dt" : "2",
                   "predefined" : "true",
                   "primary" : "false",
                   "unitsObj" :
                    {
                     "@isShortcut" : "false",
                     "@isLink" : "false",
                     "i" : "UNITS",

                     "n" : "Единицы измерения",
                     "k" : "5483",
                     "c" : "1033",
                     "p" : "5472",
                     "h" : "false"
                    }
                  }
                }
              }
            ]

          },
         "fullHints" : "false"
        },
       "sorting" :
        {
         "header" :
          {
           "its" :
            {
             "it" :

              [
                {
                 "@direction" : "Asc",
                 "col" :
                  {
                   "k" : "0",
                   "id" : "NAME"
                  }
                }
              ]

            }
          }
        }
      },
     "metaGet" :
      {
       "obInst" : "true"
      }
    }
  }
}

JSON-ответ:

{
 "SetWbkMdResult" :
  {
   "refresh" : "",
   "id" :

    {
     "id" : "S1!M!S!W4"
    },
   "meta" :
    {
     "obInst" :
      {
       "obDesc" :
        {
         "@isShortcut" : "0",

         "@isLink" : "0",
         "i" : "WBK_AD_COLUMNS",
         "n" : "Годовые данные с доп. столбцами",
         "k" : "5528",
         "c" : "2827",
         "p" : "5471",
         "h" : "0"
        }
      },
     "dirty" : "1",

     "windowsPosition" : "Vertical",
     "hasPivot" : "0",
     "hasLaner" : "1",
     "series" :
      {
       "@count" : "3",
       "its" : ""
      }
    }
  }
}

public static SetWbkMdResult SetWbkColumns(WbkId wbk, RubAtt att)
{// Задаём параметры выполнения операции
    var tOp = new SetWbkMd
    {
        tWbk = wbk,
        tArg = new SetWbkMdArg
        {   // Задаём шаблон изменения данных
            pattern = new WbkMdPattern
            {
                columns = ListOperation.Add,
                columnsFilter = new ListFilter(),

                sorting = true
            },
            // Задаём изменяемые данные
            meta = new WbkMd()
            {// Задаём отображаемые столбцы
                columns = new LnColumns()
                {
                    fullHints = false,
                    its = new LnColumn[]
                    {// Столбец, отображающий информацию об источнике данных

                        new LnColumn()
                        {
                            readOnly = true,
                            type = LnColumnType.Database,
                            db = new LnColumnDatabase()
                            {
                                text = LnDatabaseColumnText.Name
                            },
                            customTitle = "Источник данных"
                        },// Столбец, отображающий значения указанного атрибута

                        new LnColumn()
                        {
                            type = LnColumnType.Attribute,
                            readOnly = false,
                            att = new LnColumnAtt()
                            {
                                namingFormat = "",
                                rubKey = null,
                                att = att
                            }

                        }
                    }
                },// Задаём параметры сортировки данных
                sorting = new LnSorting()
                {
                    header = new LnHeaderSorting()
                    {
                        its = new LnHeaderColSort[]
                        {// Задаём параметры сортировки по наименованиям рядов
                            new LnHeaderColSort()

                            {
                                col = new ItEntity()
                                {id = "NAME"},
                                direction = SortDirection.Asc,
                                directionSpecified = true
                            }
                        }
                    }
                }
            },

            // Задаём шаблон извлечения и обновления изменённых данных
            metaGet = new WbkMdPattern() { },
            refresh = new EaxRefresh() { }
        }
    };
    // Создаем прокси-объект для выполнения операции
    var somClient = new SomPortTypeClient();
    // Выполняем операцию
    SetWbkMdResult sRes = somClient.SetWbkMd(tOp);
    return sRes;
}
